CLI Operations

Figure 9-2 show use of HyperTerminal as configured for Telnet CLI. The
appearance of this interface may vary across individual user configurations.
The remainder of this chapter shows the CLI pages as they appear with any
user-supplied terminal emulator.
9.3.1

CLI Main Menu

Selection
Administration
Interface Configuration
QoS Configuration
Route Table
Protocol Configuration
Vipersat Configuration
Satellite Modem Configuration
Redundancy Configuration
Operations and Maintenance
Optional Packet Processor - Serial/Telnet CLI Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor

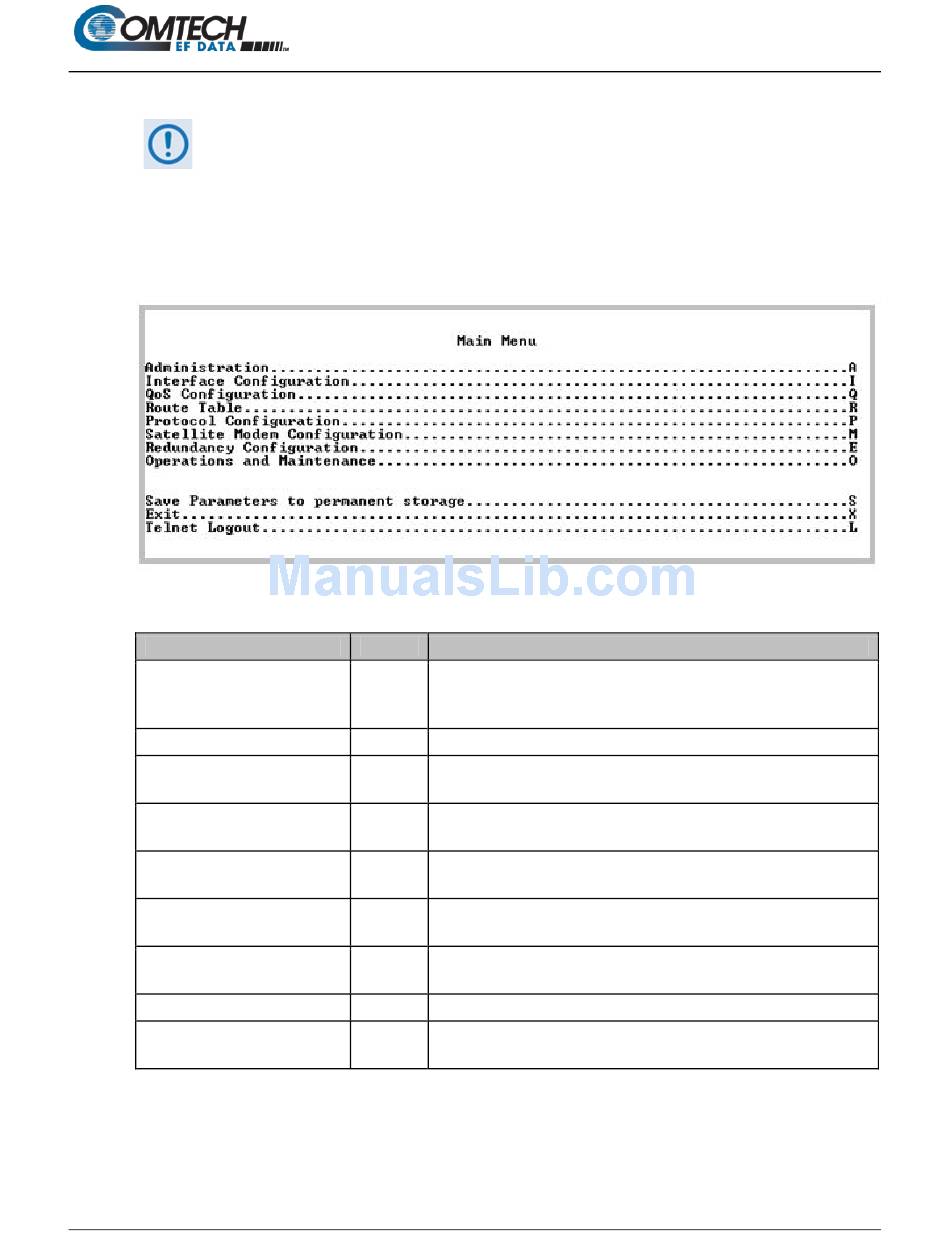

Figure 9-2. Main Menu
Hot Key
Provides a basic set of standard administrative functions to the
A
Packet Processor. When connected via Telnet, navigation to this
menu is restricted to the Admin user. See Section 9.3.2.
I
Configures the Ethernet and Satellite interfaces. See Section 9.3.3.
Defines QoS rules for up to 32 different types of flows.
Q
See Section 9.3.4.
Defines how the Packet Processor will route packets that it receives
R
on its Ethernet and Satellite interfaces. See Section 9.3.5.
Configures various protocols – including ARP, IGMP, DHCP, and
P
BRouter – used by the Packet Processor. See Section 9.3.6.
Only displays when the Vipersat option is installed.
V
See Section 0.
Displays menus that are used to configure and monitor the Base
M
Satellite Modem. See Section 9.3.8.
E Configures 1:1 IP Redundancy.
Configures various options for system control and maintenance;
O
provides Statistics and diagnostic tools for troubleshooting purposes.
