10.2 Transceiver M&C via the CDM-570A (70/140 MHz) Satellite Modem
10.2.1 Transceiver M&C via the CDM-570A Front Panel
Chapter 6. FRONT PANEL OPERATION
The nested ODU menu branches are accessible from the CDM-570A front panel
menu only when the presence of an ODU is detected. Note that operations differ
based on the ODU product recognized by the CDM-570A (i.e., menu function
specific to the CSAT-5060 or KST-2000A/B ODUs). Refer to the appropriate
chapter subsection specified in this figure for the remainder of the available menu
trees.

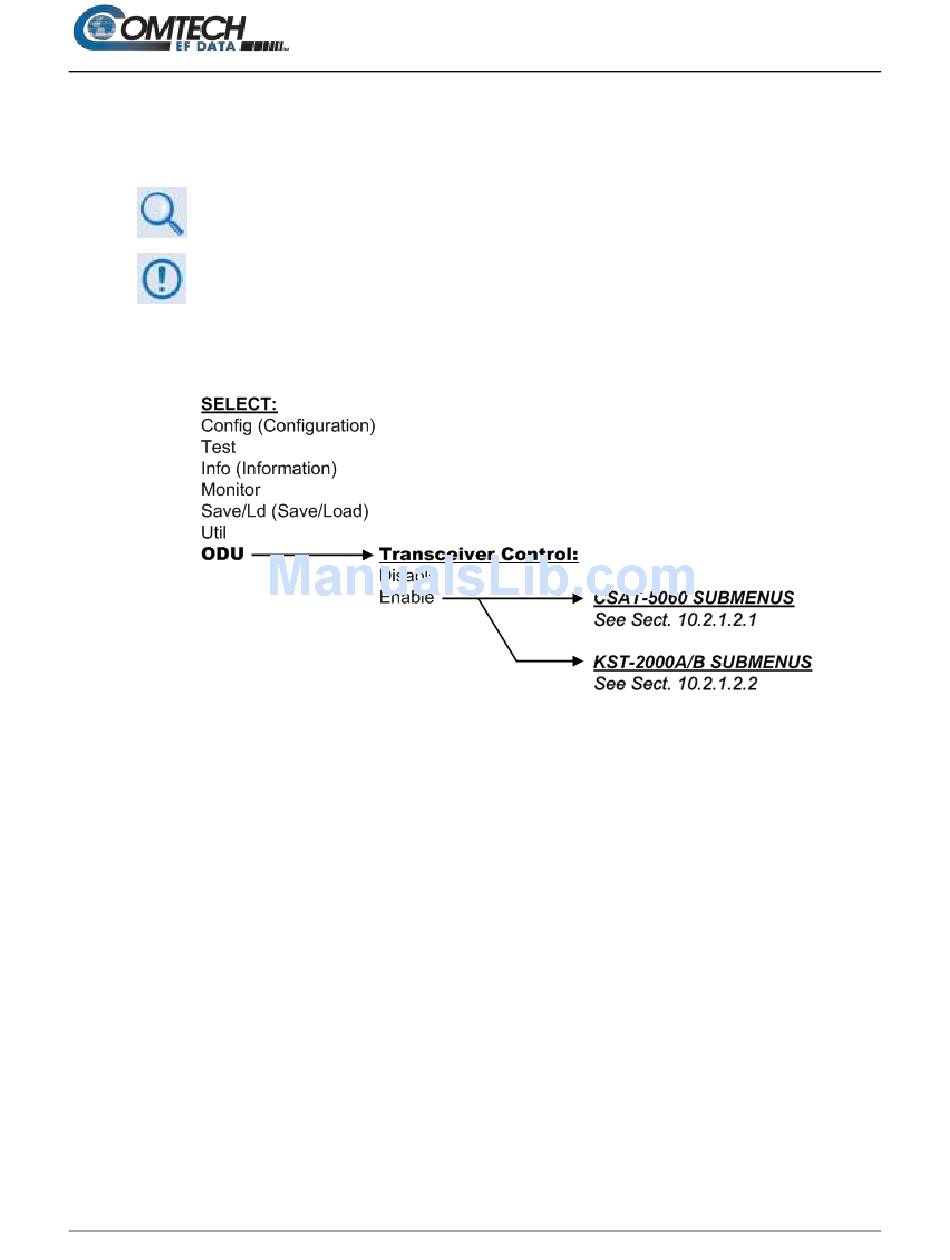

Figure 10-2 identifies the basic CDM-570A front panel menu hierarchy as it pertains selectively to
configuration, monitor and control of a CSAT-5060, KST-2000A, or KST-2000B ODU. This figure
identifies only the menu branches allocated to ODU operation.
ODU (Transceiver, BUC, LNB) Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Figure 10-2. CDM-570A Menu Tree – ODU Operation
10–5
Revision 5
MN-CDM570A
