9.3.4.1 QoS Configuration > QoS Rules Configuration
9.3.4.1.1

QoS Rules Configuration (Max/Priority Mode)

Open the nested QoS Rules Configuration page from the QoS Configuration page.
Selection
RL01 through RL32
(The current eight of up to 32
definable QoS Rules).
Delete
Base [#]
QoS [ ]
Optional Packet Processor - Serial/Telnet CLI Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor

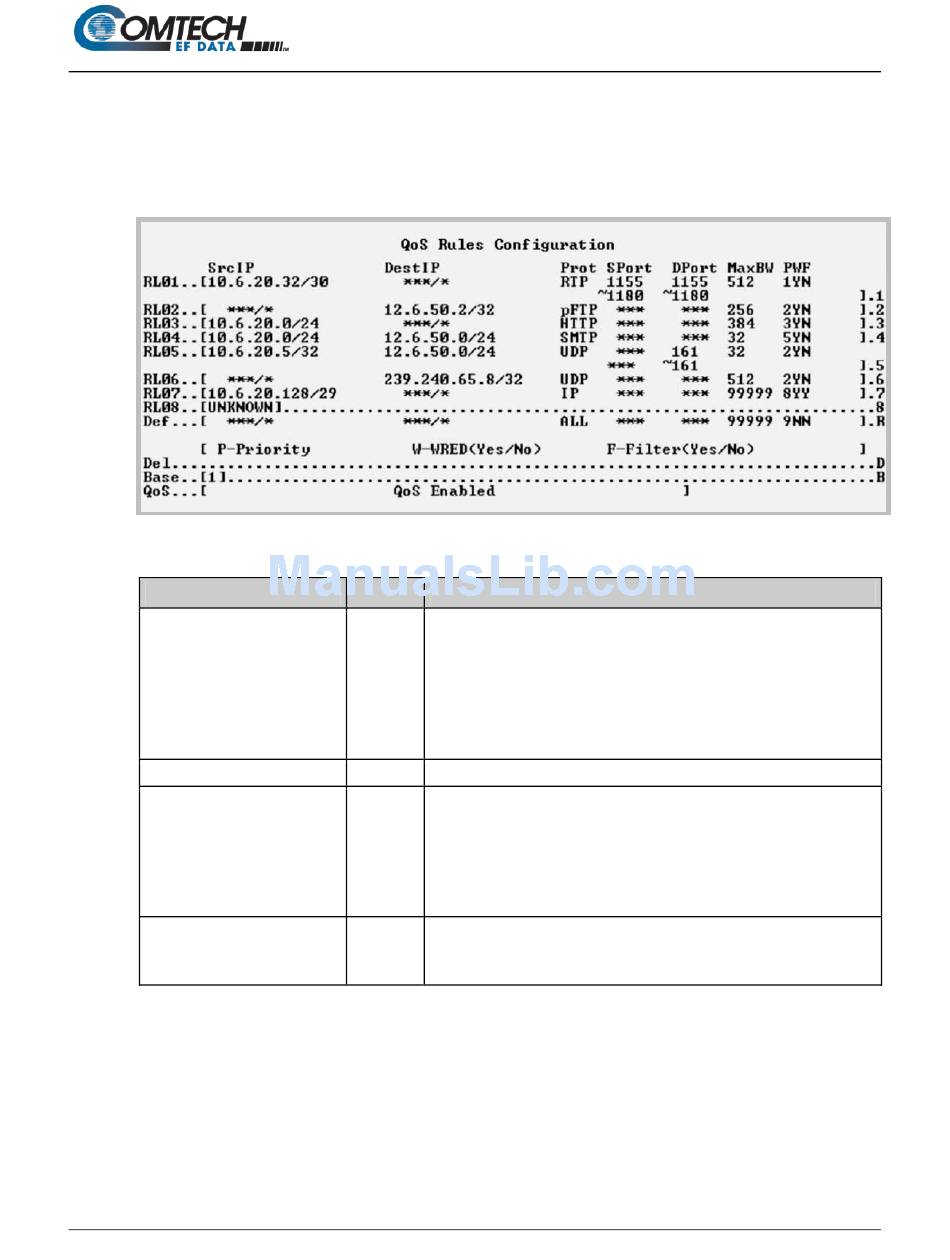

Figure 9-17. QoS Rules Configuration (Max/Priority Mode)
Hot Key
1 – 8 Assign Max/Pri QoS to up to 32 different types of definable flows.
Define flows by any combination of Protocol, Priority,
Source/Destination IP Addresses (specific or range), and/or Layer 3
Source and Destination Ports.
FOR RULE ASSIGNMENT OR EDIT PROCESS, SEE "Assign or Edit
a QoS Rule"
D Set the QoS Rule to delete, from 1 to 32.
B Select Base to display or edit a different group of eight of up to 32 QoS
Rules.
For example, if you want to edit QoS Rule 9: Type 'B', and then type
'9' to select the Base value of 9. The QoS Rules Configuration page
will refresh to display RL09 through RL16.
[RO] This line displays state of the QoS option as Unavailable, Enabled, or
Disabled. If available, QoS is Enabled or Disabled from the
Administrator Features page.
Description
