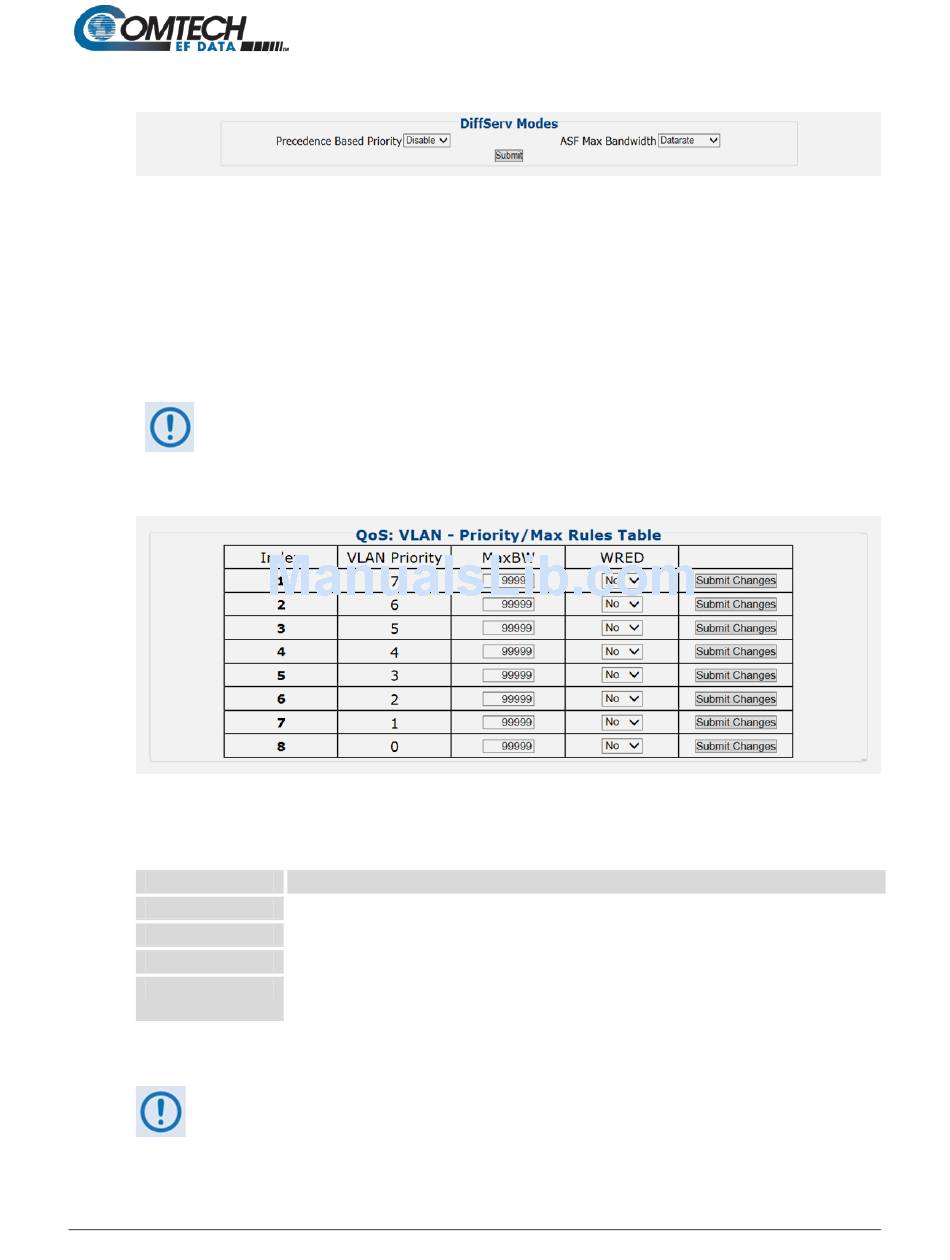

QoS DiffServ Modes
•
Precedence Based on Priority – Use the drop-down list to Disable or Enable the
Packet Processor's prioritization of traffic based upon the DSCP Class Selector
Precedence.
•
ASF Max Bandwidth – Applicable to Assured Forwarding, this defines the value that is
used to restrict the maximum bandwidth that any particular flow will utilize. Use the drop-
down list to select Datarate or Percentage.
Click [Submit] to save.
The information that follows is applicable only when QoS Mode = VLAN –
Priority/Max Mode
QoS: VLAN – Priority/Max Rules Table
This section displays and permits you to modify all existing QoS VLAN – Priority/Max Rules
Table entries. From left to right:
Column
Index
VLAN Priority
Max Bw (kpbs)
WRED
Click [Submit Changes] to update the specified rule.
Make sure to also click [Save PaP Parameters] on the 'Admin | PaP Save' page
before proceeding further.
Ethernet-based Remote Product Management
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Description
This is the internal table index that is automatically assigned and cannot be edited.
Specifies the VLAN Priority established for the specific rule (0-7).
Specifies the Maximum Bandwidth value in kilobits per second.
Specifies the WRED (Weighted Random Early Detection) setting for the specific rule as Yes
or No.
