Q.4 Working Mode = Router Mode (Point-to-Multipoint / Point-to-Point /
Vipersat)
Q.4.1

Configure Router Mode

Do these steps:
1. Use the CDM-570A/570AL Serial CLI to set your active Router Working Mode. As shown
previously in Figure Q-4 from the Administration menu, press 'C' to display the available
choices:
Press
1 Small Network
2 Large Network
3 Point to Point
4 Vipersat
5 Managed Switch
2. Enable Dedicated Management Port operation. As shown previously in Figure Q-3, on
the Ethernet Interface menu, press 'D' to display the Dedicated Management Port
operation choices; then, press '2' to Enable.
3. Dedicated Management Port, when used in Router Mode, requires two IP Addresses
(Figure Q-7):
•
One for M&C (management) – the '10/100 Ethernet | M&C 100' port;
•
One for Traffic (Ethernet data) – the Traffic 100 port.
When Dedicated Management Port is disabled, the existing Management IP
Address is used for both M&C and traffic.
When you first enable Dedicated Management Port, the existing single IP Address is assigned
automatically as the Management IP Address – you are required to configure the Traffic IP
Address(es) (Figure Q-8):
Dedicated Management Port Feature
CDM-570A/570A Satellite Modem with Optional Packet Processor
For Router Mode:
Router uses 1 byte HDLC addresses
Router mode using 2 byte HDLC addresses
Router mode uses 0 HDLC addresses to save satellite bandwidth
Router mode when running in a Vipersat Network
N/A (see Sect. Q.3)

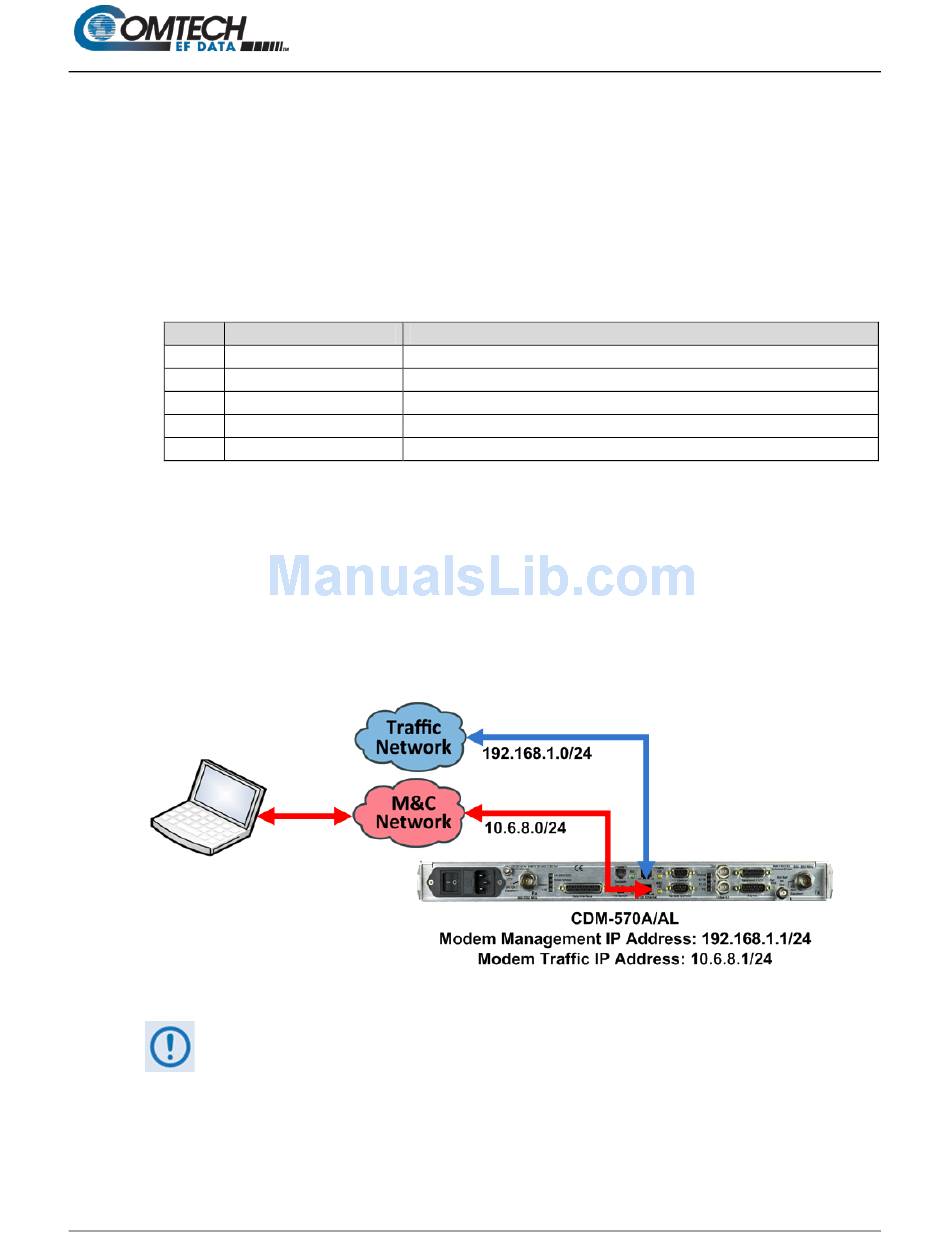

Figure Q-7. CDM-570A/570AL Router Mode IP Addresses
Description
Q–7
Revision 5
MN-CDM570A
