7.4.3.3.2

Configuration | LAN

If you submit any changes to this page when the optional Packet Processor is
INSTALLED, you must also open the 'Admin | Pap Save' page (see Sect. 7.4.3.2.8)
and immediately click [Save PaP Parameters].
Network Configuration (Typical with or without Packet Processor)
•
IP Address/Mask – Use this field to configure the modem's Management IP Address.
•
Managed Switch Gateway IP – Use this field to configure this IP Address.
•
Traffic UP Address/Mask (not applicable in Managed Switch Mode) – Use this field to
configure the modem's Traffic IP Address. Note that this address is assigned automatically
when the modem is running in Managed Switch Mode.
•
MAC Address – This parameter is read-only and cannot be changed.
•
Dedicated Management Port – This feature is available when the optional Packet Processor
is INSTALLED, but it is unavailable when VLAN Mode is Enabled.
Appendix Q. DEDICATED MANAGEMENT PORT FEATURE
•
Traffic MAC Address – This parameter is read-only and cannot be changed.
Click [Submit] to save.
Ethernet-based Remote Product Management
CDM-570A/570AL Satellite Modem with Optional Packet Processor

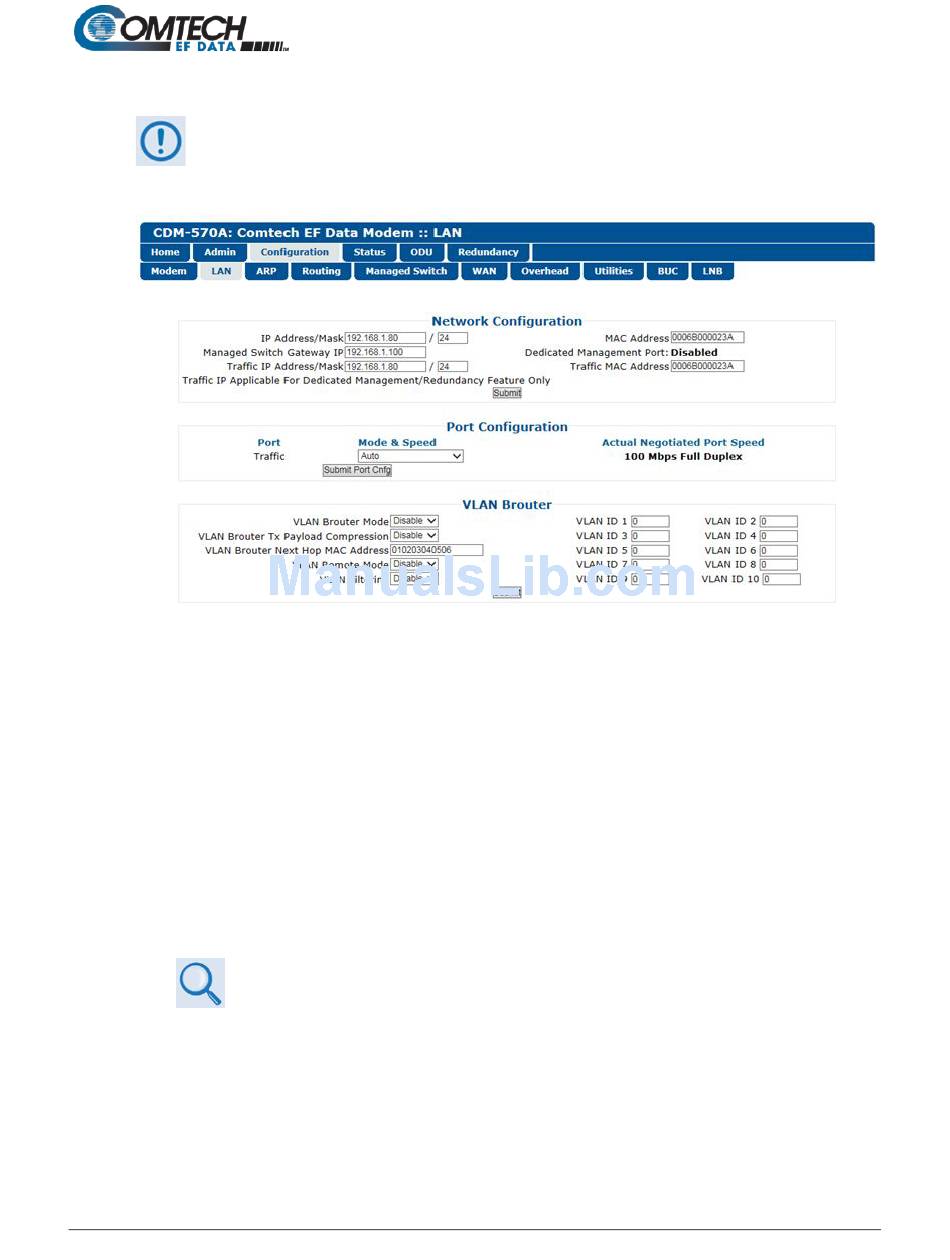

Figure 7-18. Configuration | LAN Page
