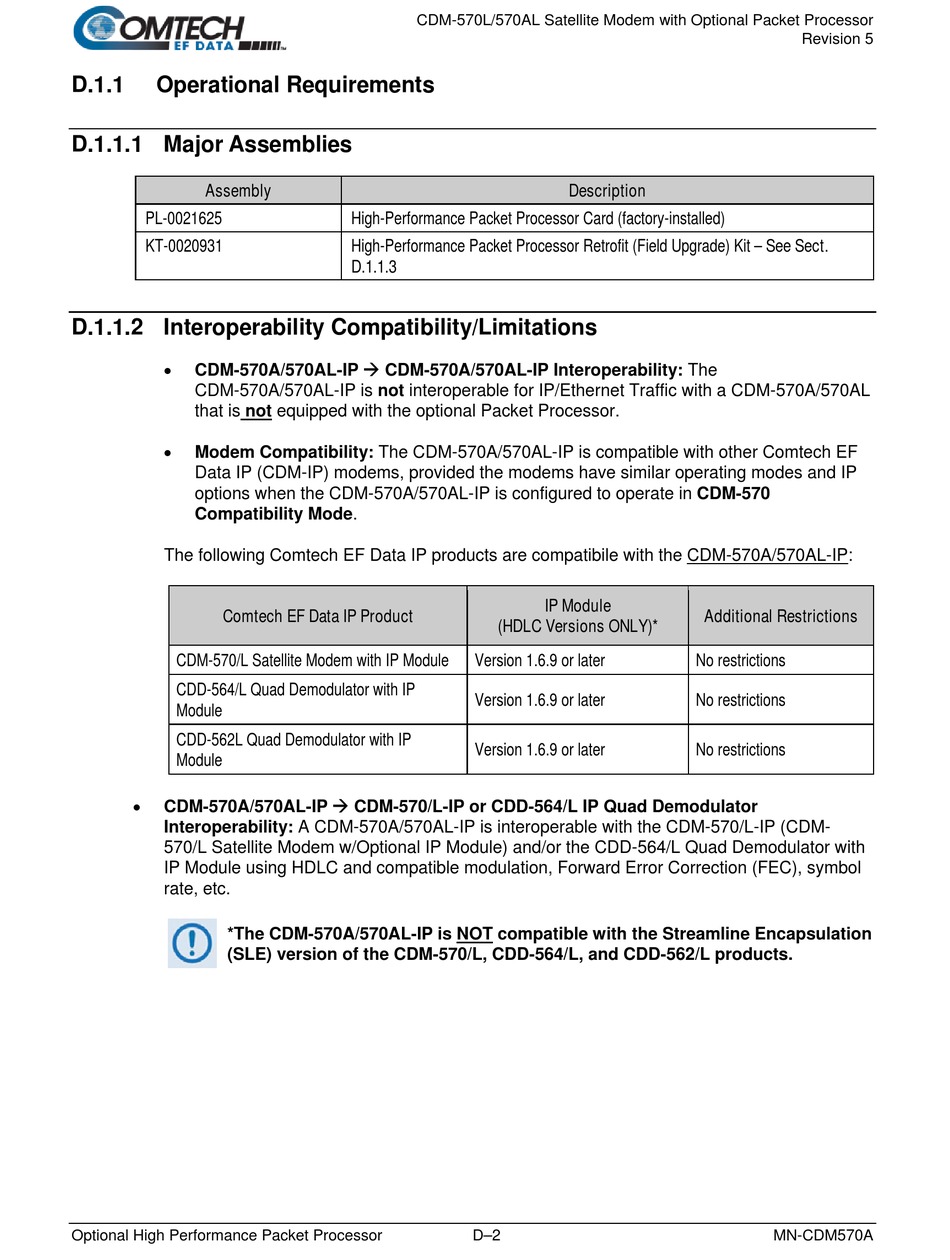

D.1.1

Operational Requirements

D.1.1.1 Major Assemblies
Assembly
PL-0021625
KT-0020931
D.1.1.2 Interoperability Compatibility/Limitations
•
CDM-570A/570AL-IP  CDM-570A/570AL-IP Interoperability: The
CDM-570A/570AL-IP is not interoperable for IP/Ethernet Traffic with a CDM-570A/570AL
that is not equipped with the optional Packet Processor.
•
Modem Compatibility: The CDM-570A/570AL-IP is compatible with other Comtech EF
Data IP (CDM-IP) modems, provided the modems have similar operating modes and IP
options when the CDM-570A/570AL-IP is configured to operate in CDM-570
Compatibility Mode.
The following Comtech EF Data IP products are compatibile with the CDM-570A/570AL-IP:
Comtech EF Data IP Product
CDM-570/L Satellite Modem with IP Module
CDD-564/L Quad Demodulator with IP
Module
CDD-562L Quad Demodulator with IP
Module
•
CDM-570A/570AL-IP  CDM-570/L-IP or CDD-564/L IP Quad Demodulator
Interoperability: A CDM-570A/570AL-IP is interoperable with the CDM-570/L-IP (CDM-
570/L Satellite Modem w/Optional IP Module) and/or the CDD-564/L Quad Demodulator with
IP Module using HDLC and compatible modulation, Forward Error Correction (FEC), symbol
rate, etc.
*The CDM-570A/570AL-IP is NOT compatible with the Streamline Encapsulation
(SLE) version of the CDM-570/L, CDD-564/L, and CDD-562/L products.
Optional High Performance Packet Processor
CDM-570L/570AL Satellite Modem with Optional Packet Processor
High-Performance Packet Processor Card (factory-installed)
High-Performance Packet Processor Retrofit (Field Upgrade) Kit – See Sect.
D.1.1.3
(HDLC Versions ONLY)*
Version 1.6.9 or later
Version 1.6.9 or later
Version 1.6.9 or later
D–2
Description
IP Module
Additional Restrictions
No restrictions
No restrictions
No restrictions
Revision 5
MN-CDM570A
