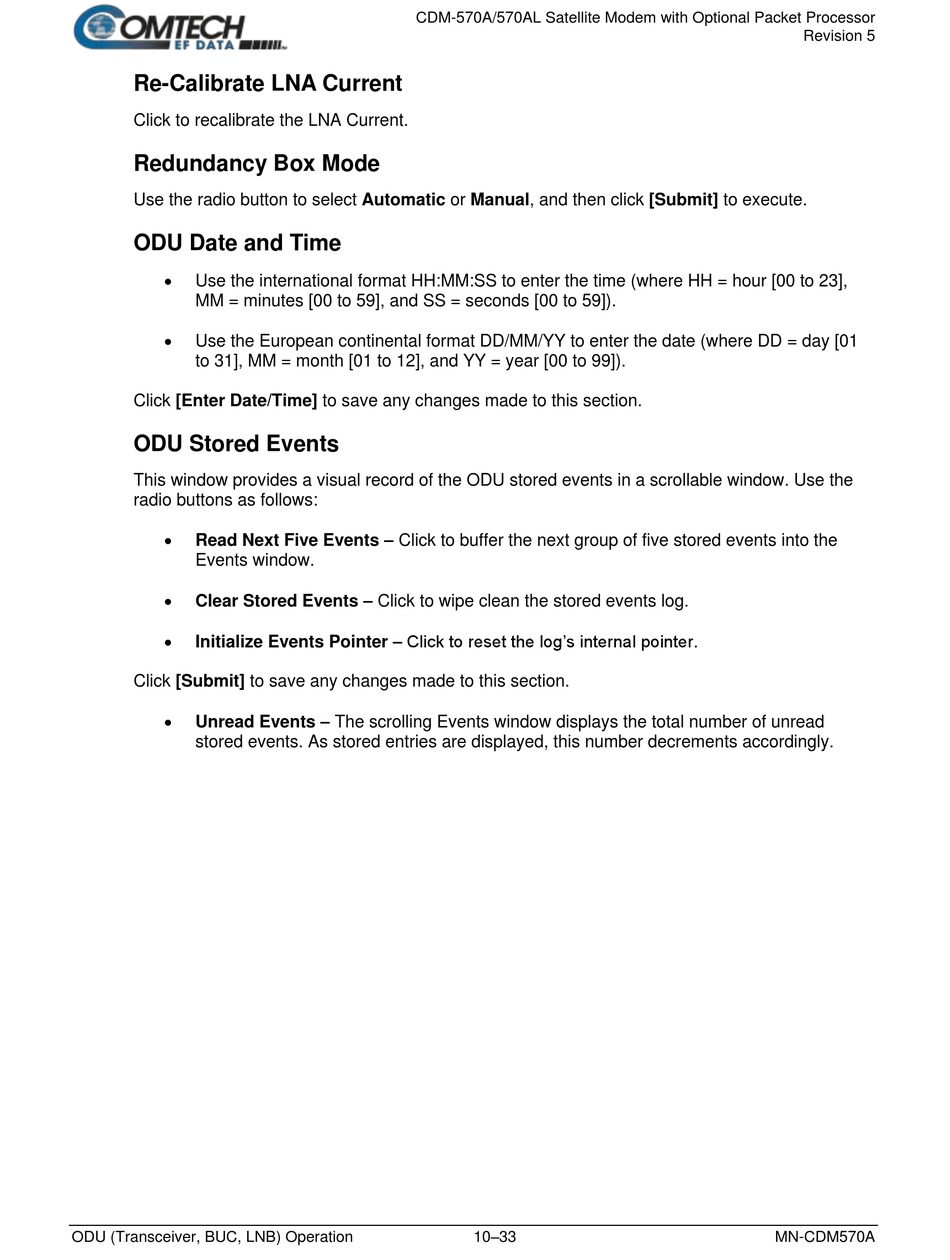

Re-Calibrate LNA Current
Click to recalibrate the LNA Current.
Redundancy Box Mode
Use the radio button to select Automatic or Manual, and then click [Submit] to execute.
ODU Date and Time

Use the international format HH:MM:SS to enter the time (where HH = hour [00 to 23],
MM = minutes [00 to 59], and SS = seconds [00 to 59]).

Use the European continental format DD/MM/YY to enter the date (where DD = day [01
to 31], MM = month [01 to 12], and YY = year [00 to 99]).
Click [Enter Date/Time] to save any changes made to this section.
ODU Stored Events
This window provides a visual record of the ODU stored events in a scrollable window. Use the
radio buttons as follows:

Read Next Five Events – Click to buffer the next group of five stored events into the
Events window.

Clear Stored Events – Click to wipe clean the stored events log.

Initialize Events Pointer – Click to reset the log's internal pointer.
Click [Submit] to save any changes made to this section.

Unread Events – The scrolling Events window displays the total number of unread
stored events. As stored entries are displayed, this number decrements accordingly.
