Make sure to read the important notes that follow in Sect. 7.4.2.1 for conditions that
may apply to the availability and operation of these individual pages. Such
operational restrictions are also noted through the remainder of this chapter.
7.4.2.1 HTTP Interface – IMPORTANT Conditional Operating Notes
REFERRING TO Figure 7-1 – CAREFULLY REVIEW THESE HTTP INTERFACE
USAGE NOTES:
•
Ethernet-based Remote Product Management
CDM-570A/570AL Satellite Modem with Optional Packet Processor

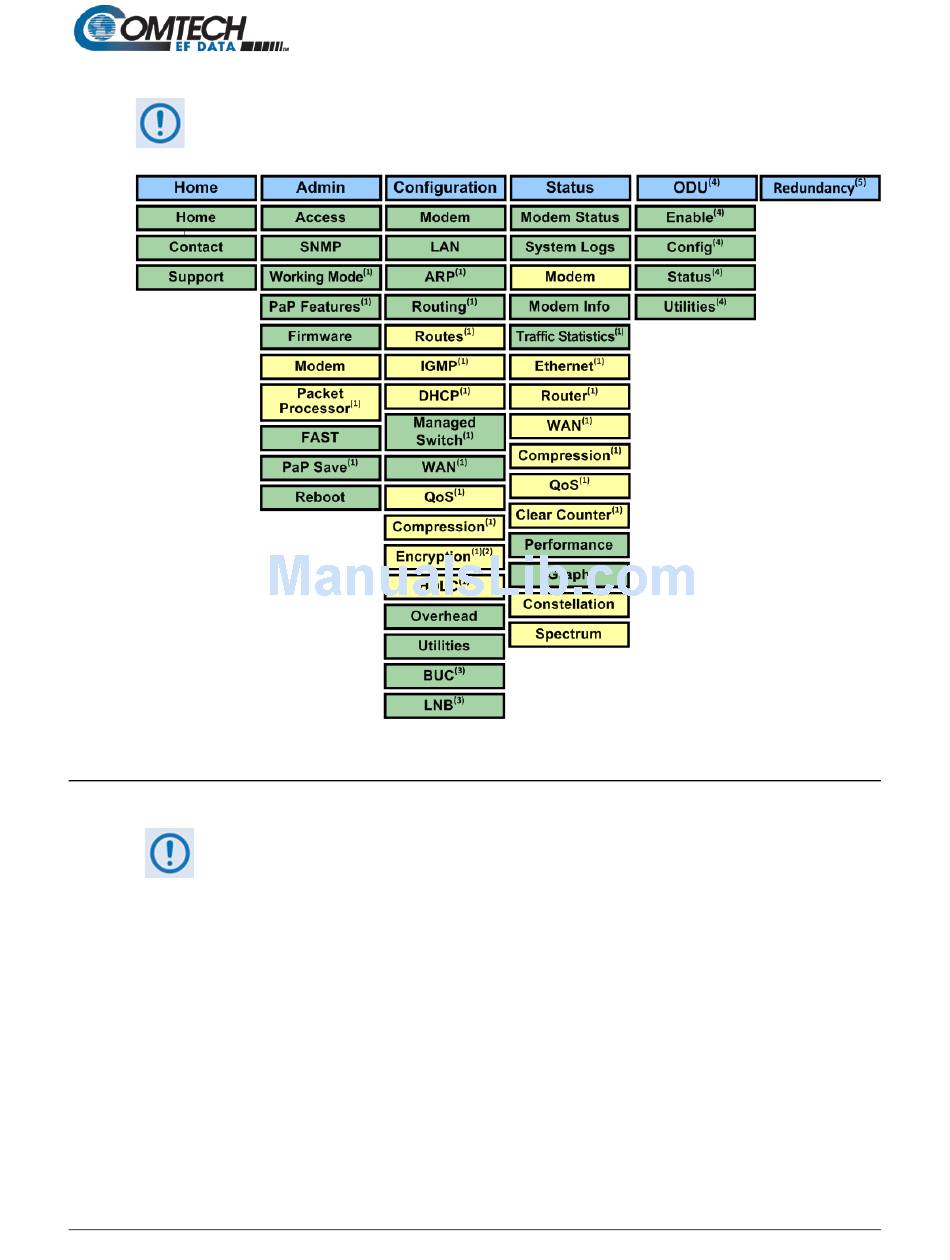

Figure 7-1. CDM-570A HTTP Interface Menu Tree

The navigation tabs and/or nested pages marked (1) in this diagram are
associated with the optional High-Performance Packet Processor. They are
non-functional when this optional hardware is not installed.
If you attempt to select a page requiring the presence of the optional
Packet Processor, and this hardware is not installed, the following page
displays:
7–11
Revision 5
MN-CDM570A
