Operations and Maintenance > Statistics Menu> QoS Statistics

Open the nested QoS Statistics page from the Statistics page. This page displays the statistics

for the number of Packets routed, based upon the defined QoS Rules, by the Packet Processor.

In DiffServ QoS Mode, statistics for the various DiffServ DSCP Classes are in the

following Queues:

Optional Packet Processor - Serial/Telnet CLI Operation

CDM-570A/570AL Satellite Modem with Optional Packet Processor

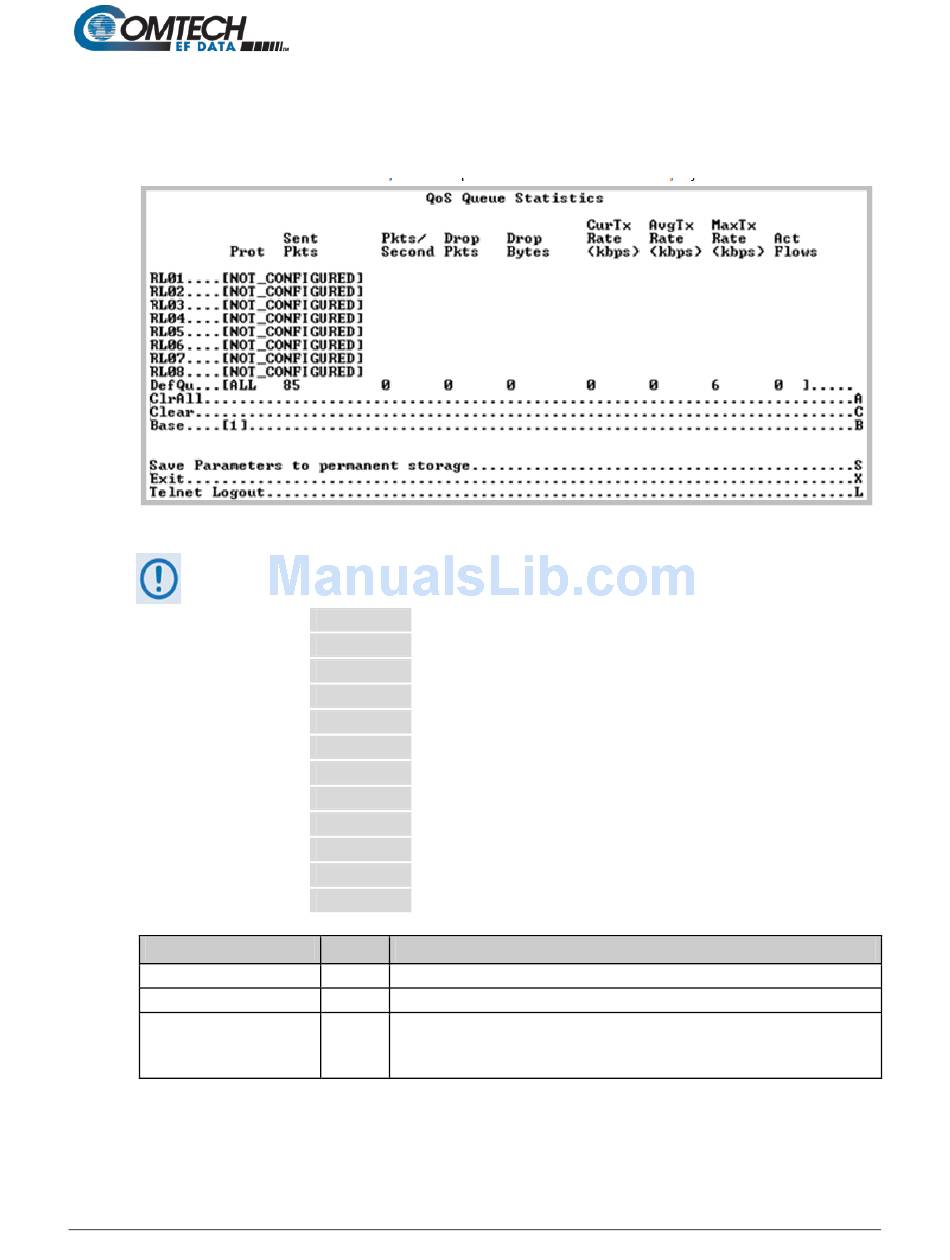

Figure 9-55. QoS Statistics

Expedited Forwarding

Class 1 Precedence

Class 2 Precedence

Class 3 Precedence

Class 4 Precedence

Class 5 Precedence

Class 6 Precedence

Class 7 Precedence

Assured Forwarding Class 1

Assured Forwarding Class 2

Assured Forwarding Class 3

Assured Forwarding Class 4

Clears all QoS statistics and resets the buffer.

Allows a reset of the statistics in a specific Queue.

Select Base and then type a number to display a different set of eight of up

to 32 available queues.

For example, if you want to view QoS Queues 16-24: Type '16'.
