2.2.1 Install the Optional Rear Support Brackets Kit

Detail
1
2
Item
1
2
3
4
5
6
The following tools are required to install the optional KT/6228-2 (4") or KT/6228-3 (10") Rear
Support Brackets Kit:
•
A medium Phillips screwdriver
•
A 5/32-inch SAE Allen Wrench
•
An adjustable Crescent wrench
Installation and Startup
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Description
Back of Modem
Rack Enclosure Threaded Rear Mounting Rail (typical)
Kit / Quantity
KT/6228-2 KT/6228-3
2 2
4 4
2 2
2 2
4 4
2 –
– 2

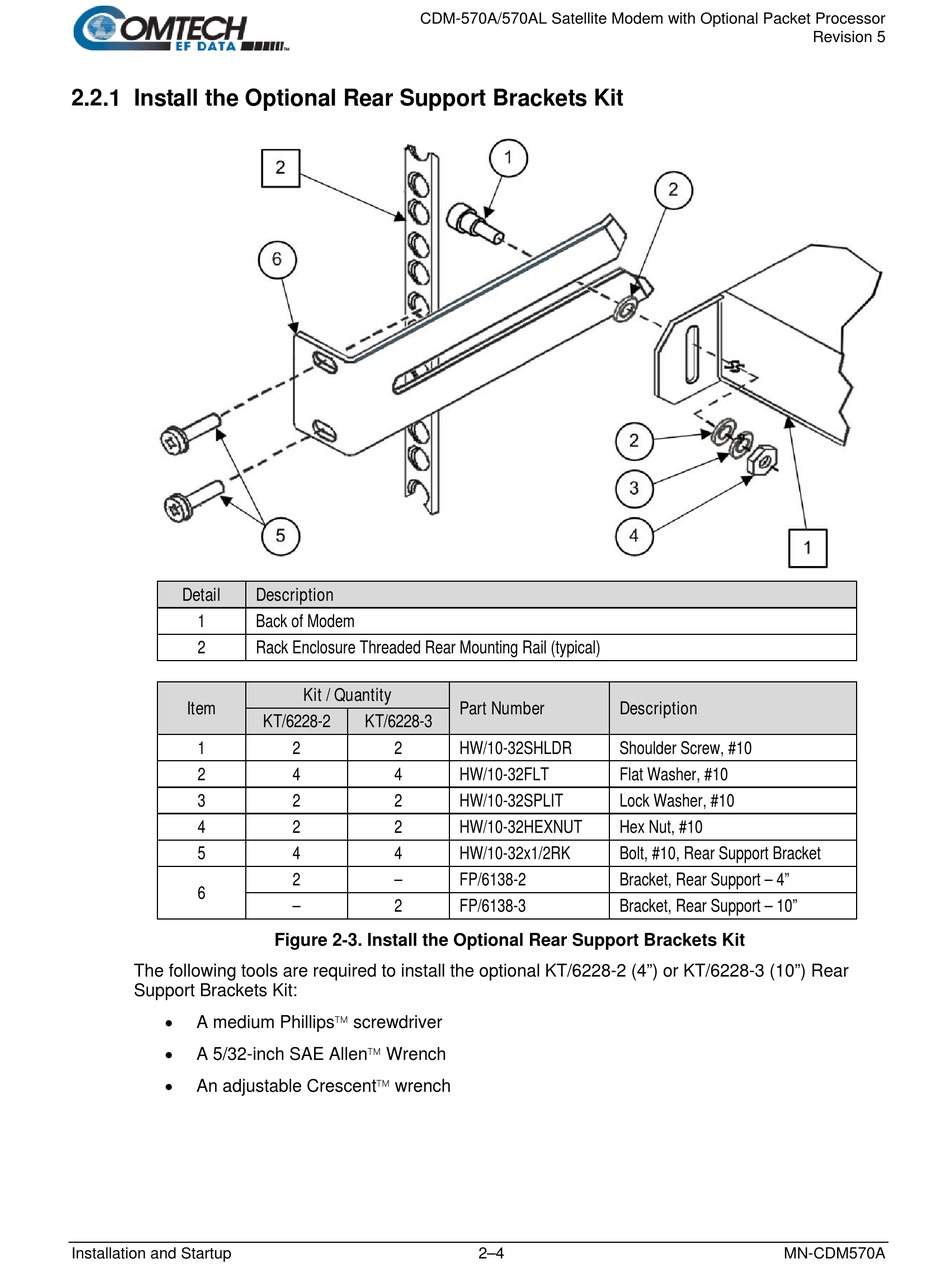

Figure 2-3. Install the Optional Rear Support Brackets Kit

Part Number Description
HW/10-32SHLDR Shoulder Screw, #10
HW/10-32FLT Flat Washer, #10
HW/10-32SPLIT Lock Washer, #10
HW/10-32HEXNUT Hex Nut, #10
HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
FP/6138-2 Bracket, Rear Support – 4"
FP/6138-3 Bracket, Rear Support – 10"
2–4
Revision 5
MN-CDM570A
