Step Task

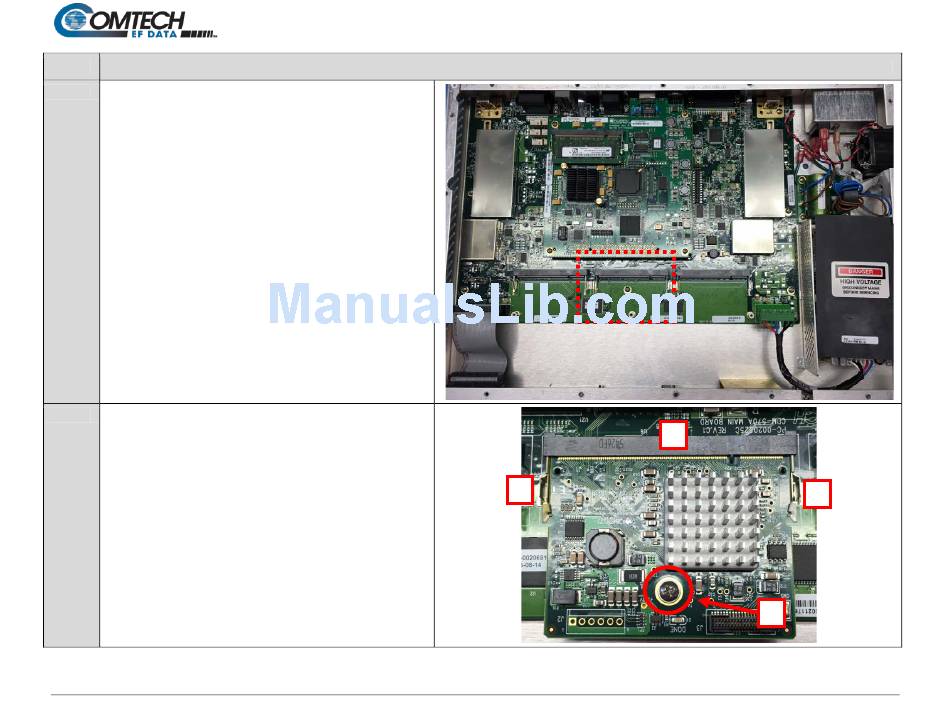

2 Align the VerseFEC-2 Option Card connector with the middle slot
located on the modem board.
3 (A) Plug the card firmly into the receptacle – take care not to
damage any top-mounted components. Similarly, be sure
not to damage the bottom of the card during this task.
(B) Snap the spring-loaded capture tabs into place. They are
located at both sides of the card.
(C) Use the screwdriver to secure the provided card mounting
screw (CEFD P/N HW/SEM4-40X1/4PH) to its mating
mounting boss.
