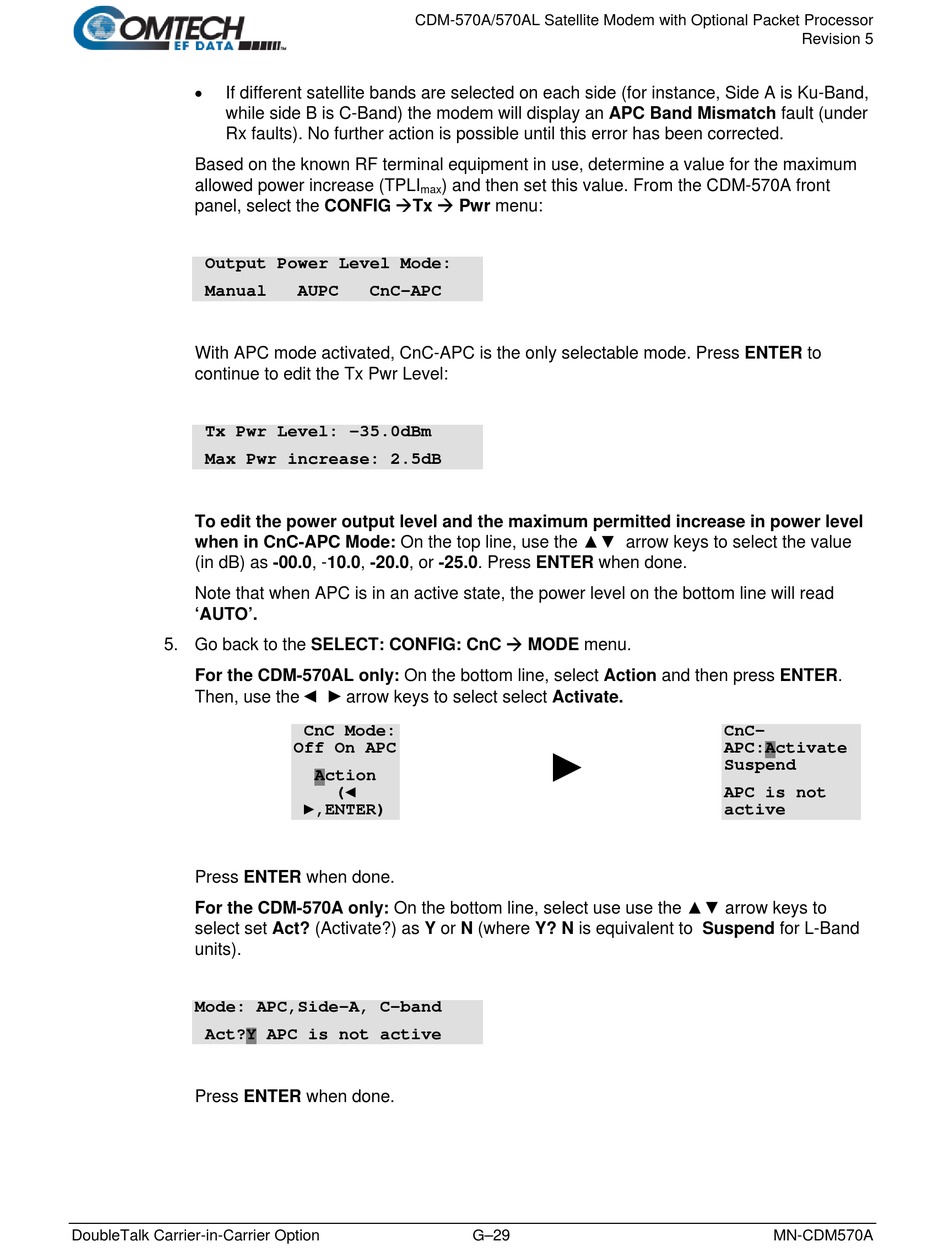

Comtech EF Data CDM-570A Installation And Operation Manual page 595

•
If different satellite bands are selected on each side (for instance, Side A is Ku-Band,
while side B is C-Band) the modem will display an APC Band Mismatch fault (under
Rx faults). No further action is possible until this error has been corrected.
Based on the known RF terminal equipment in use, determine a value for the maximum
allowed power increase (TPLI
panel, select the CONFIG Tx  Pwr menu:
Output Power Level Mode:
Manual
With APC mode activated, CnC-APC is the only selectable mode. Press ENTER to
continue to edit the Tx Pwr Level:
Tx Pwr Level: -35.0dBm
Max Pwr increase: 2.5dB
To edit the power output level and the maximum permitted increase in power level
when in CnC-APC Mode: On the top line, use the ▲▼ arrow keys to select the value
(in dB) as -00.0, -10.0, -20.0, or -25.0. Press ENTER when done.
Note that when APC is in an active state, the power level on the bottom line will read
'AUTO'.
5. Go back to the SELECT: CONFIG: CnC  MODE menu.
For the CDM-570AL only: On the bottom line, select Action and then press ENTER.
Then, use the
Press ENTER when done.
For the CDM-570A only: On the bottom line, select use use the ▲▼ arrow keys to
select set Act? (Activate?) as Y or N (where Y? N is equivalent to Suspend for L-Band
units).
Mode: APC,Side-A, C-band
Act?Y APC is not active
Press ENTER when done.
DoubleTalk Carrier-in-Carrier Option
CDM-570A/570AL Satellite Modem with Optional Packet Processor
) and then set this value. From the CDM-570A front
max
AUPC CnC-APC
◄ ►
arrow keys to select select Activate.
CnC Mode:
Off On APC
Action
(◄
►,ENTER)
►
G–29
Revision 5
CnC-
APC:Activate
Suspend
APC is not
active
