10.3.2.1 O DU (BUC, LNB) Pages
7 B 7 B
When properly configured to operate with a BUC or LNB, the 'Configuration | BUC' and
'Configuration LNB' pages allow configuration of the operating parameters specific to the active
unit.
Click the 'Configuration' tab, and then click the 'BUC' or 'LNB' tab to continue.
10.3.2.1.1

Configuration | BUC

Use this page to configure BUC parameters, and to display the BUC status for L-Band operation.
BUC Configuration

Use the drop-down lists to set BUC Power Enable, 10 MHz Ref Enable, and Output
Power Enable operations as ON or OFF.

Assign the BUC Low Current Limit and High Current Limit values ranging from 0 to 4000 mA.

Assign the Tx Lockout Frequency and designate the value as a HIGH (+) or LOW (-) limit.

Assign a BUC Address from 0 to 15.
Click [Submit BUC Controls] to save any changes made to this section.
BUC Status
The values displayed in this section are read-only and cannot be changed. This information
automatically updates every 10 seconds.
ODU (Transceiver, BUC, LNB) Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor

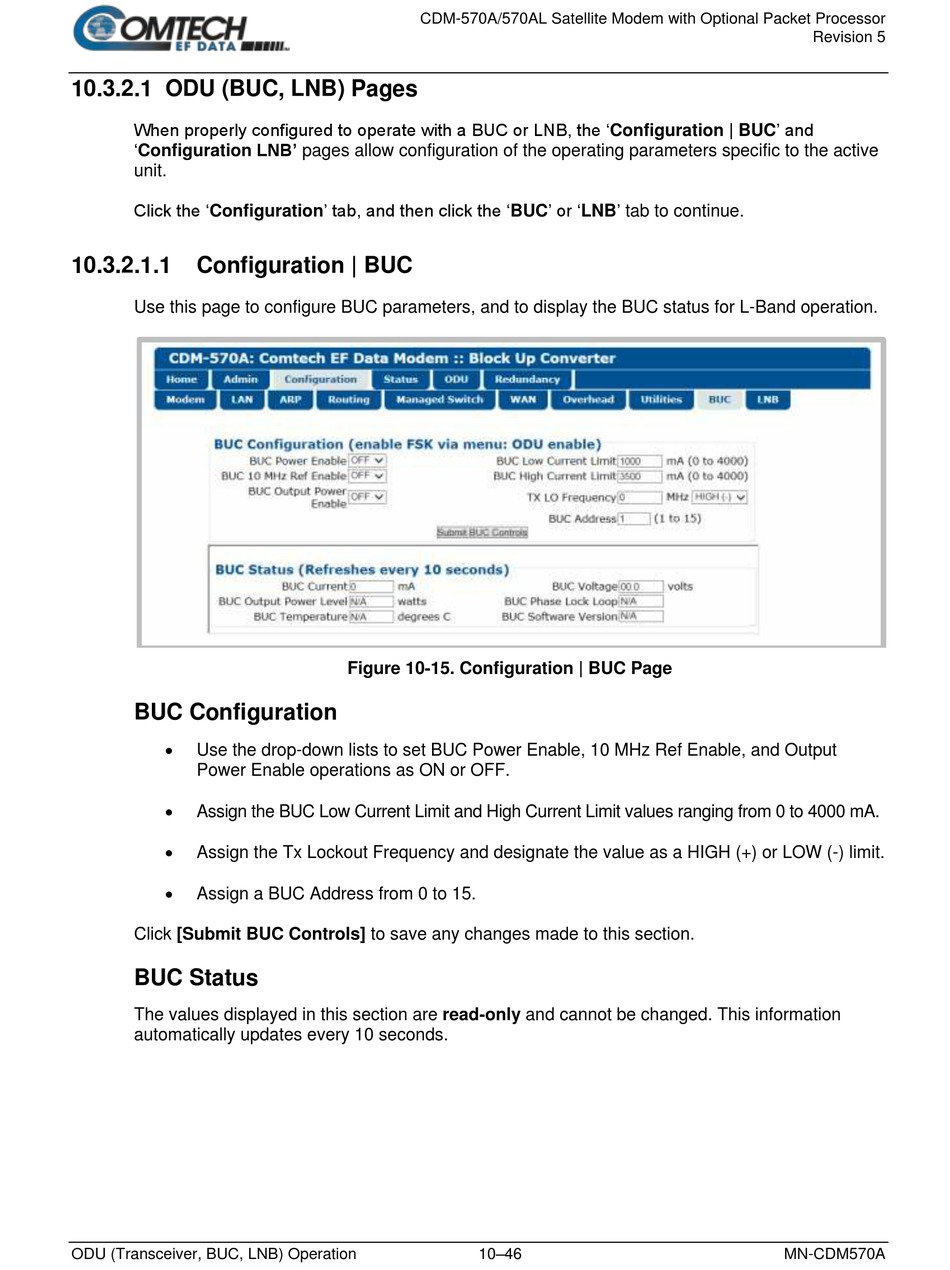

Figure 10-15. Configuration | BUC Page
