ODU Circuit Identification
Enter an ODU Circuit Identification name of up to 24 alphanumeric characters.
Click [Submit] to save any changes made to this page.
10.2.2.1.2.2

ODU | Config (KST-2000A/B)

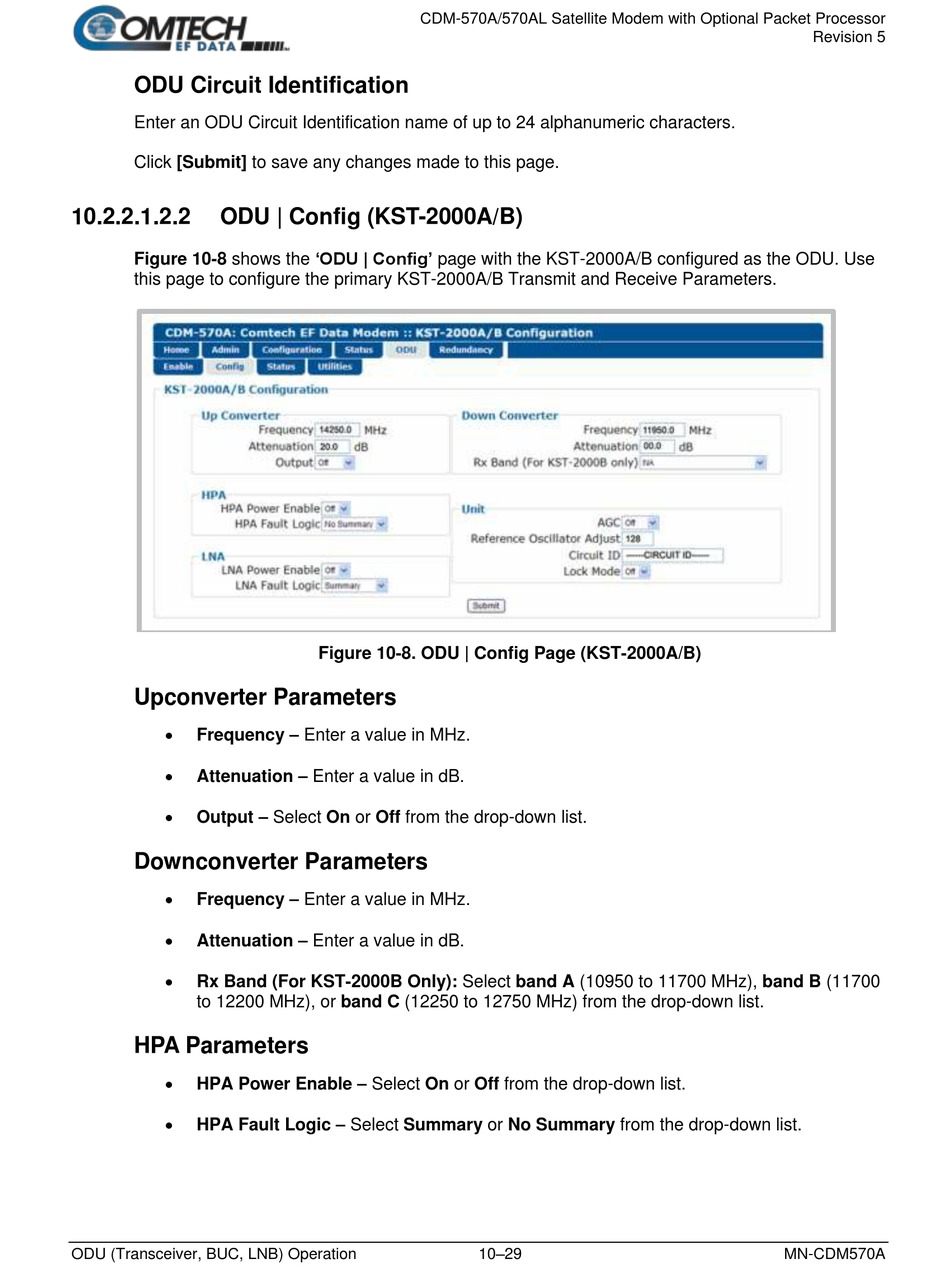

Figure 10-8 shows the 'ODU | Config' page with the KST-2000A/B configured as the ODU. Use
this page to configure the primary KST-2000A/B Transmit and Receive Parameters.
Upconverter Parameters

Frequency – Enter a value in MHz.

Attenuation – Enter a value in dB.

Output – Select On or Off from the drop-down list.
Downconverter Parameters

Frequency – Enter a value in MHz.

Attenuation – Enter a value in dB.

Rx Band (For KST-2000B Only): Select band A (10950 to 11700 MHz), band B (11700
to 12200 MHz), or band C (12250 to 12750 MHz) from the drop-down list.
HPA Parameters

HPA Power Enable – Select On or Off from the drop-down list.

HPA Fault Logic – Select Summary or No Summary from the drop-down list.
ODU (Transceiver, BUC, LNB) Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Figure 10-8. ODU | Config Page (KST-2000A/B)
