9.3.3.1.1.1 Interface Configuration > Ethernet Interface > VLAN Table
Open the nested VLAN Table from the Ethernet Interface page (Managed Switch Mode only).
Selection
VLAN01 – VLAN08
Delete VLAN Entry
Base [#]

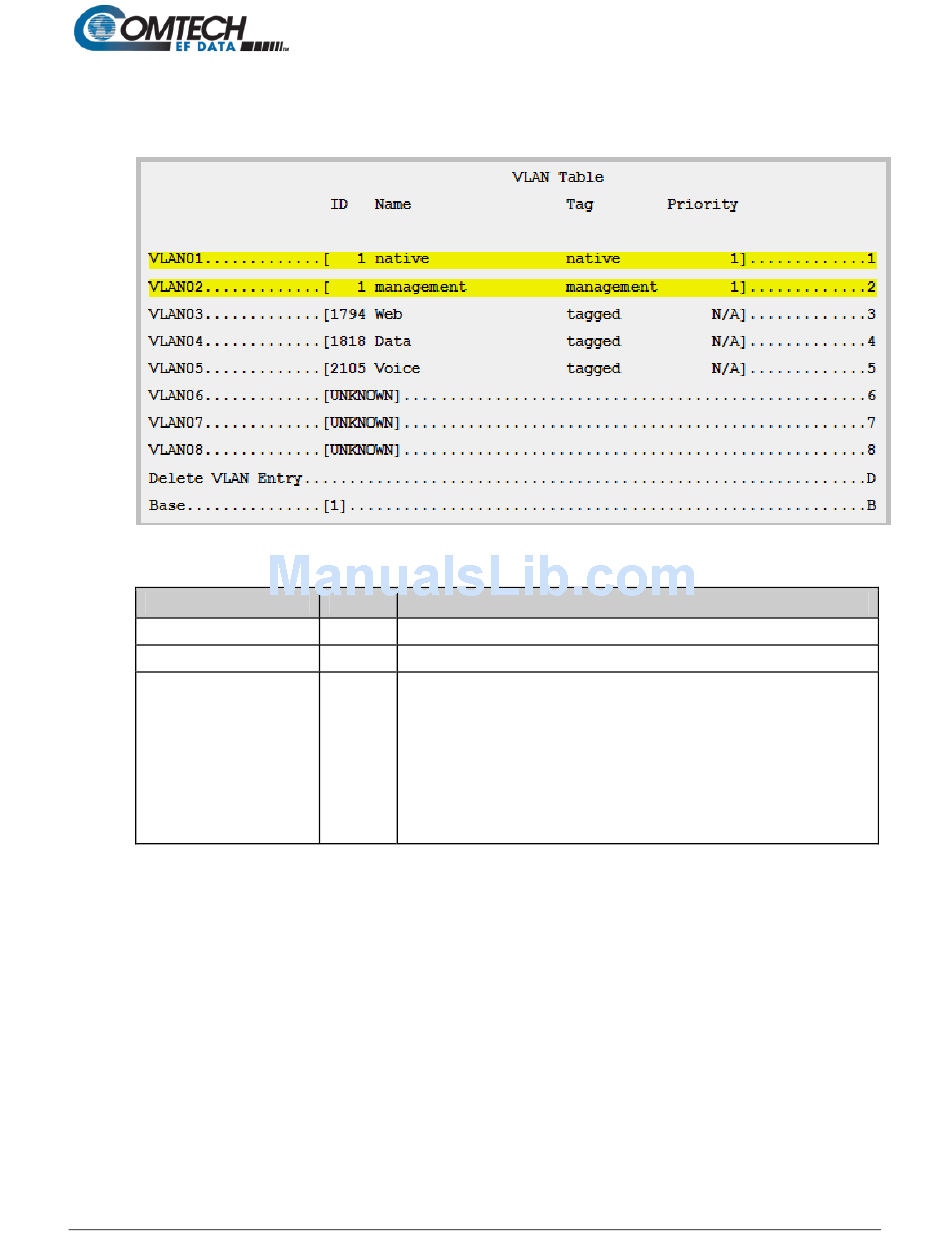

In the default VLAN Table, Figure 9-12 shows where there is a Native VLAN and a
Management VLAN (default VLAN ID 1). These can be changed to other VLAN IDs, but they
cannot be deleted.
If an untagged packet arrives at the Packet Processor, it will egress as a tagged packet with the
defined Native VLAN ID.
You may add VLAN entries into the VLAN Table, and forward VLANs over the satellite. You also
need a VLAN entry on the receiving CDM-570A/570AL to receive the VLAN traffic – they will
egress as tagged VLANs.
When a tagged packet arrives at the Ethernet port, it is forwarded only if there is a matching
VLAN entry in the VLAN Table; it will egress as tagged. If there is no matching VLAN in the VLAN
Table, then the tagged packet is dropped.
Optional Packet Processor - Serial/Telnet CLI Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Figure 9-12. VLAN Table
Hot Key Description
1 – 8 Type a VLAN ID (1 through 4094).
D Set the VLAN Entry number (1 to 8) to delete that entry from the table.
B Select Base and then type a number to display or edit a different set of
eight of up to 4093 definable VLAN ID entries.
Example 1 – If you have eight existing VLAN entries: Type '9' to create a
new VLAN ID 9. The VLAN Table page will refresh and now display
VLAN Entries 9-16.
Example 2 – If you want to edit VLAN IDs 32-40: Type 'B', and then type
'32' to select the Base value of 32. The VLAN Table page will refresh to
display VLAN IDs 32 through 40.
