Note that, in this configuration, the management of the CDM-IP modems can either be included in
VLAN 1200 or left outside of all VLANs, since all remotes process all non-VLAN traffic.
Chapter 9. OPTIONAL PACKET PROCESSOR – SERIAL/TELNET CLI OPERATION
Optional High Performance Packet Processor
CDM-570L/570AL Satellite Modem with Optional Packet Processor

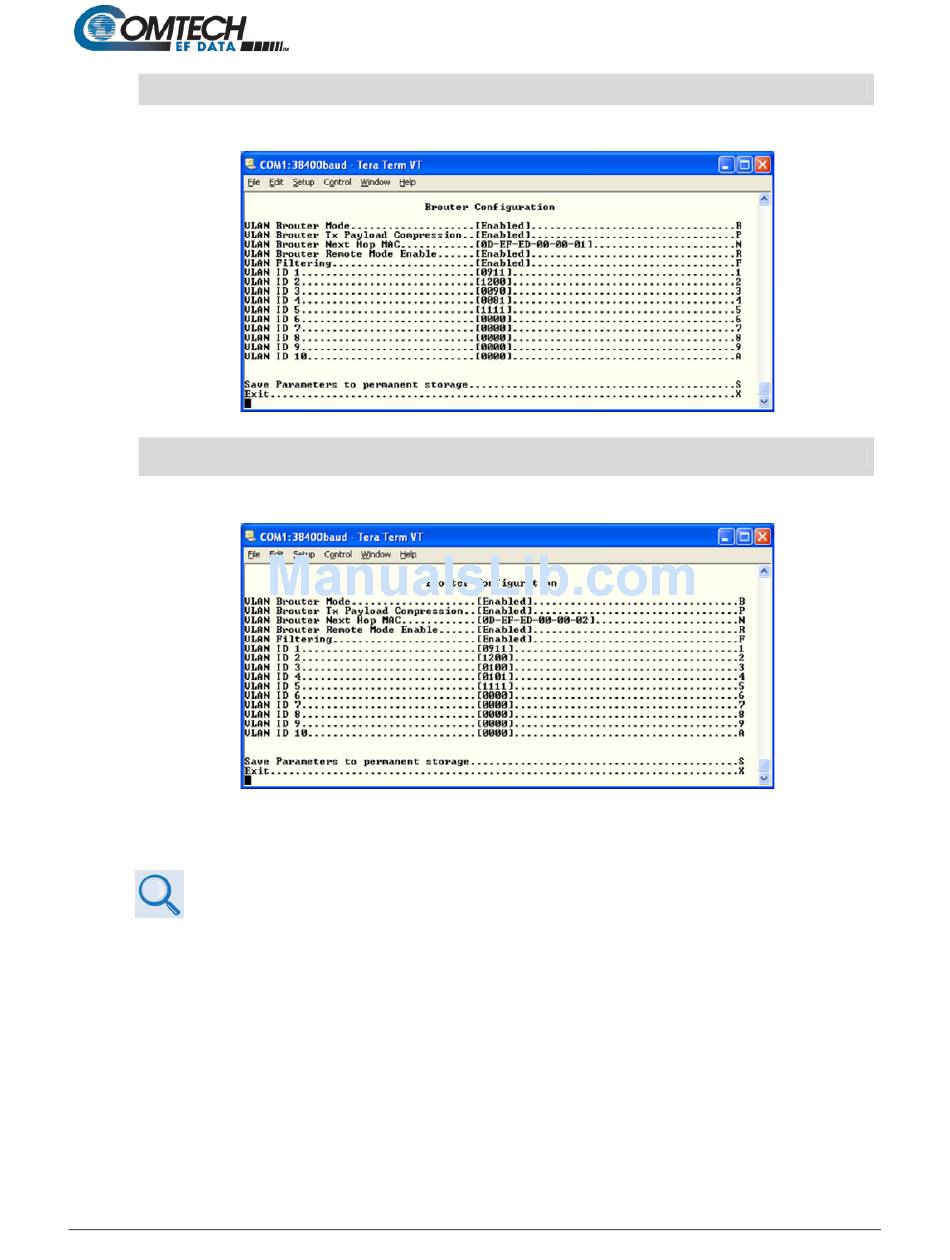

Remote Site 'B' – CDM-IP Remote Modem 'B'
IP Address: 10.10.1.4
VLAN Match Filter – Enabled
Remote Site 'C' – CDM-IP Remote Modem 'C'
IP Address: 10.10.1.5
VLAN Match Filter – Enabled
D–44
Revision 5
MN-CDM570A
