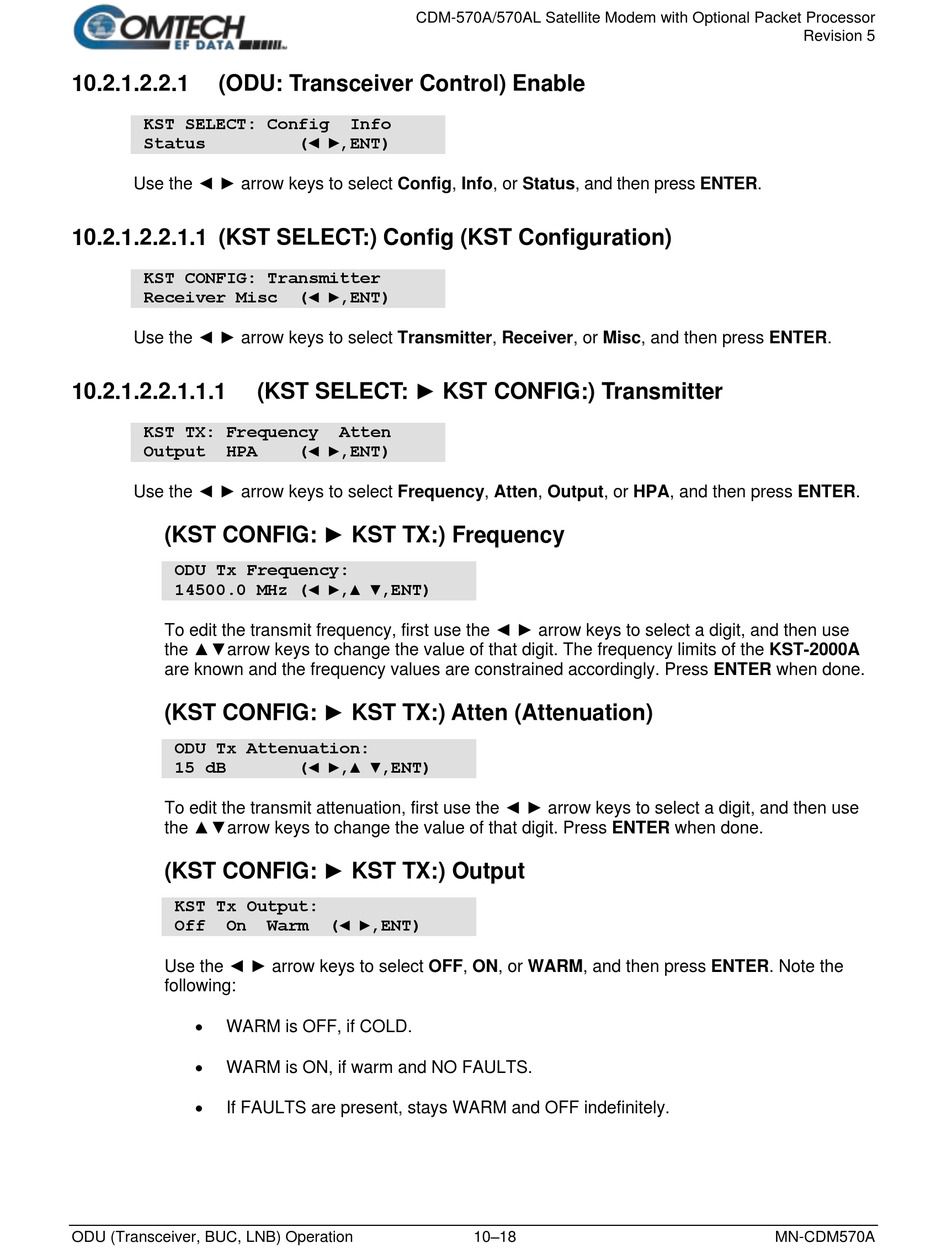

10.2.1.2.2.1

(ODU: Transceiver Control) Enable

KST SELECT: Config
Status
Use the ◄ ► arrow keys to select Config, Info, or Status, and then press ENTER.

10.2.1.2.2.1.1 (KST SELECT:) Config (KST Configuration)

KST CONFIG: Transmitter
Receiver Misc
Use the ◄ ► arrow keys to select Transmitter, Receiver, or Misc, and then press ENTER.
10.2.1.2.2.1.1.1
KST TX: Frequency
Output HPA
Use the ◄ ► arrow keys to select Frequency, Atten, Output, or HPA, and then press ENTER.
(KST CONFIG: ► KST TX:) Frequency
ODU Tx Frequency:
14500.0 MHz (◄ ►,▲ ▼,ENT)
To edit the transmit frequency, first use the ◄ ► arrow keys to select a digit, and then use
the ▲▼arrow keys to change the value of that digit. The frequency limits of the KST-2000A
are known and the frequency values are constrained accordingly. Press ENTER when done.
(KST CONFIG: ► KST TX:) Atten (Attenuation)
ODU Tx Attenuation:
15 dB
To edit the transmit attenuation, first use the ◄ ► arrow keys to select a digit, and then use
the ▲▼arrow keys to change the value of that digit. Press ENTER when done.
(KST CONFIG: ► KST TX:) Output
KST Tx Output:
Off On
Use the ◄ ► arrow keys to select OFF, ON, or WARM, and then press ENTER. Note the
following:

WARM is OFF, if COLD.

WARM is ON, if warm and NO FAULTS.

If FAULTS are present, stays WARM and OFF indefinitely.
ODU (Transceiver, BUC, LNB) Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor
Info
(◄ ►,ENT)
(◄ ►,ENT)
(KST SELECT: ► KST CONFIG:) Transmitter
Atten
(◄ ►,ENT)
(◄ ►,▲ ▼,ENT)
Warm (◄ ►,ENT)
10–18
Revision 5
MN-CDM570A
