a. If you are in Managed Switch Mode, press '2' to enable Dedicated Management Port
in Local ONLY Mode, or '3' to enable Dedicated Management Port in Local &
Remote Mode.
b. If you are in Router Mode, press '2' to enable Dedicated Management Port operation.

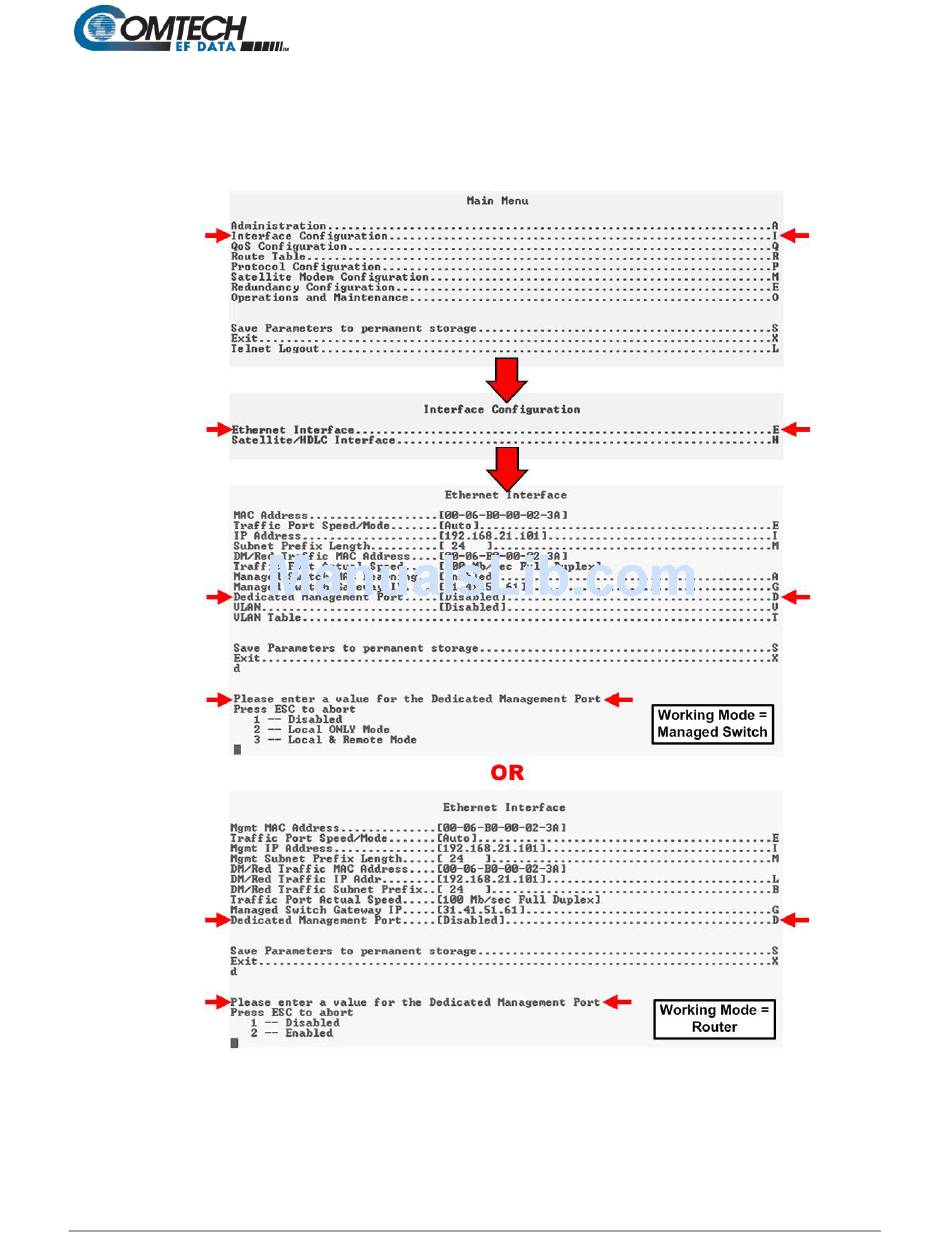

Figure Q-3. CDM-570A/570AL Dedicated Management Port Configuration
Dedicated Management Port Feature
CDM-570A/570A Satellite Modem with Optional Packet Processor
Q–3
Revision 5
MN-CDM570A
