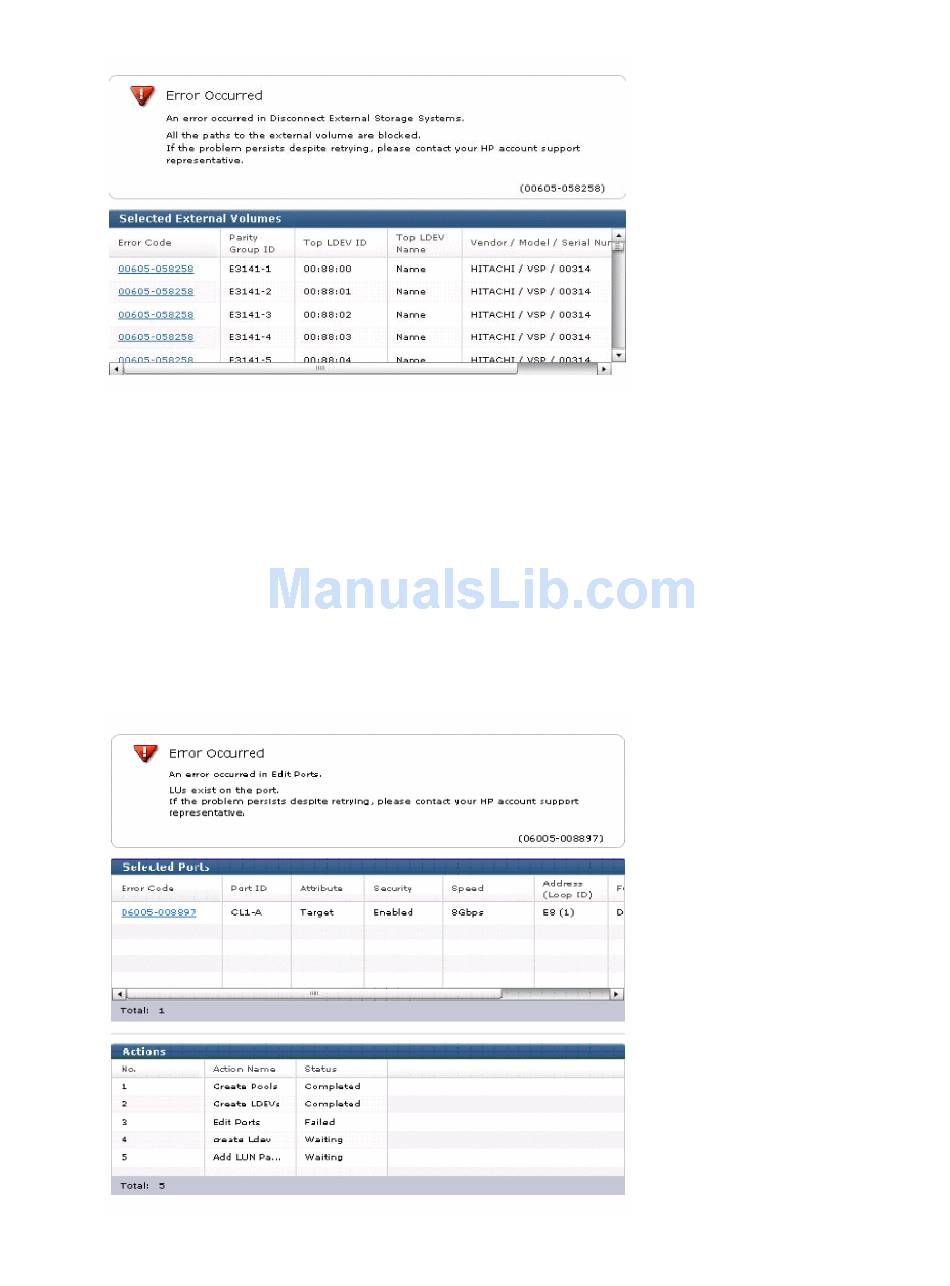

Figure 3 Example of advanced message window 1
At the operation to change multiple settings at once, each result can be seen in the table shown
under the message. Click an error code number written in the table that is linked to the changed
result of each item to refer to the error.
The advanced message window is also referable from the task window. (For details about the task
window, see HP StorageWorks P9000 Remote Web Console User Guide.) However, each detailed
result might not be displayed at the volume creating operation or the LUN operation because they
have a case that must process all at once. In the task window, if the setting is changed for a task
that is created as one by connecting multiple tasks, a task where an error occurred in one batch
can be confirmed as shown in "Example of advanced message window 2" (page 8). This example
of an advanced message window shows the occurrence of an error on the task of action number
3.
Figure 4 Example of advanced message window 2
8 P9500 messages and error codes
