Scanlab RTC 5 PC Interface Board Installation And Operation Manual page 594

Pin17 Pin15
J2
Data7
Data7
+5V +5V
GND GND
Latch
JP2 - JP8
Master
Legend
Master . . . . . 6-pin MASTER connector (see
JP1 . . . . . . . . Jumper for selecting the output signal level at the EXTENSION 1 connector
(see page 49)
JP2 - JP8 . . . . Jumpers for configuring the EXTENSION 2 connector signals (see
®

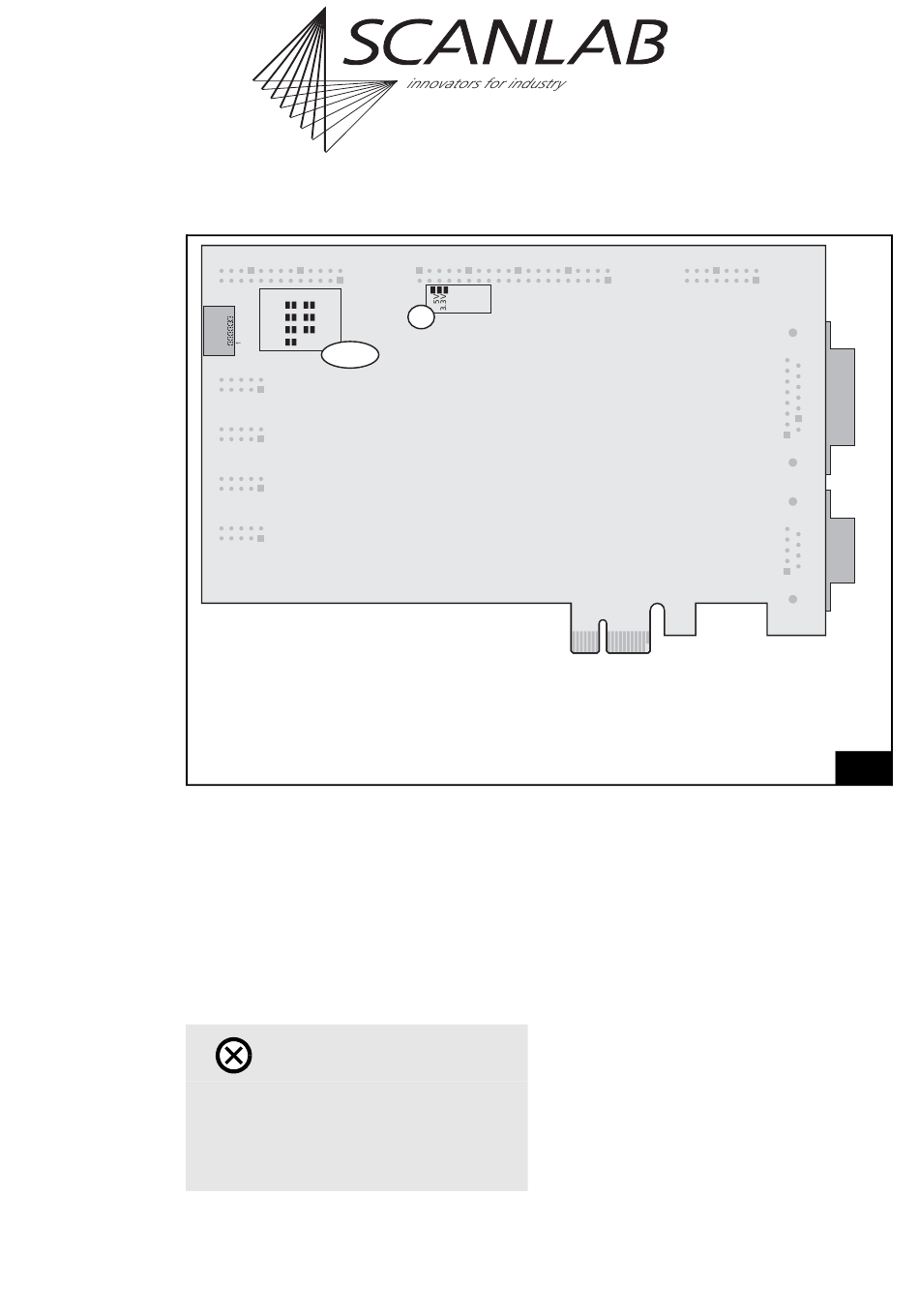

Layout of the RTC 5-Express board (back side)
16.2.2 Interface to PC
®
The RTC 5-Express board's PCIe-x1 connector is the
interface to the PC.
®
The RTC 5-Express board can be installed into any
IBM-compatible personal computer with a PCI-
Express bus interface and at least one free PCI-Express
slot.
Caution!
®
• The RTC 5-Express board does not support
power-saving modes that switch off power to
the PCI-Express bus. Accordingly, you must
disable standby or sleep modes of the operating
system. Also see the note on
®
RTC 5 PC Interface Board
Rev. 1.9 e
®
16 Appendix B: The RTC 5-Express Board
1
Digital I/O
Voltage
JP1
"Master/Slave Synchronization", page
page 27.
40)
page 50)
