9.3 Control via External Signals

The previously-discussed input and output of
peripheral signals can be synchronized with scan
system and laser control, as described below:
• The necessary list commands can be inserted at
appropriate places in command lists.
• Execution of necessary control commands can be
made dependent on the current status of list
execution. For this, the list status can be
requested via read_status
list execution status via get_status
In addition, the BUSY list execution status is
provided via the BUSY OUT signal at the LASER
connector (page 46), at the EXTENSION 1
connector (page 49) and at the
MARKING ON THE FLY connector
®
Moreover, the RTC 5 provides commands and inter-
faces (described in the following sections) that allow
external control signals (e.g. from a light-barrier or
from an encoder) to directly control and synchronize
execution of command lists or individual commands
(including the output of peripheral signals).
9.3.1 Starting and Stopping Lists via
External Control Signals and
Master/Slave Synchronization

External List Stop

Via a signal at the inputs /STOP, /STOP2 or /Slave STOP,
or via the command simulate_ext_stop, an external
list stop can be initiated (see (1) and (3) in
Like a call of the command stop_execution, this will
cause execution of the currently running list to be
immediately aborted and the "laser active" laser
control signals to be switched off (but not deacti-
vated).
Additionally, the 16-bit digital output port of the
EXTENSION 1 connector, the 8-bit digital output port
(DATA0 to DATA7) of the EXTENSION 2 connector as
well as the 2-bit digital output port and the two
12-bit analog output ports (ANALOG OUT1 and
ANALOG OUT2) of the LASER connector will be set to
the previously defined stop-case values – via
set_port_default – if these were not defined as "–1".
®
RTC 5 PC Interface Board
Rev. 1.9 e
9 Programming Peripheral Interfaces

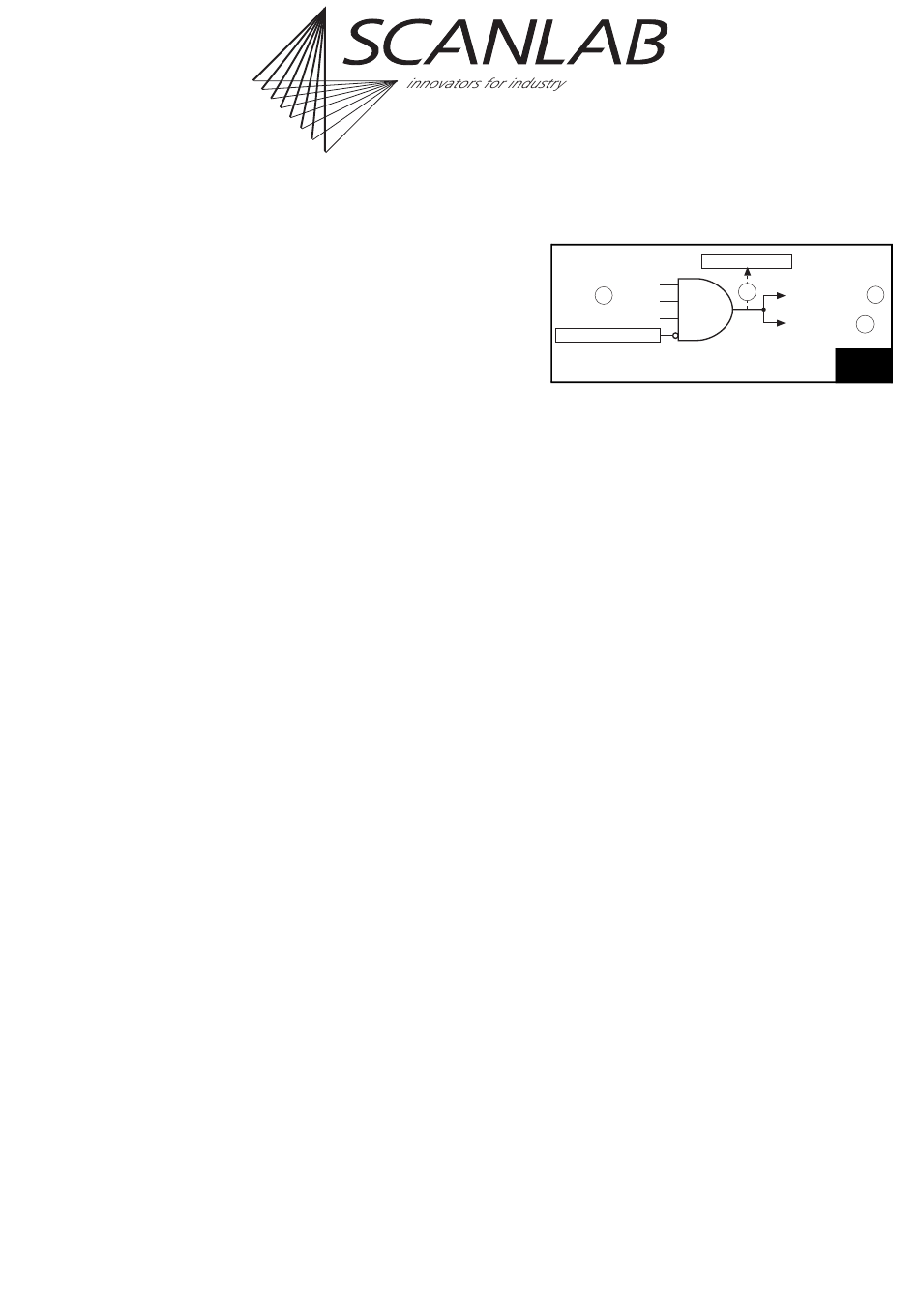

External list stop (see text for description)
