RTC 5 as receiver
The following specifications apply to receiver signals
of the McBSP interface (CLKR0, FSR0, DR0):
• Signal level 3.3 V or 5 V TTL.
• McBSP mode:
– Single phase frame
– Single element per frame
– 32 bits per element
– DataDelay N bit
• The pulse diagram of the McBSP signals is shown
in figure 22 on page 52. The (active low)
FrameSync pulse generated upon a rising edge (of
an external clock signal) is detected upon the
clock's next falling edge (trailing edge of the
external clock pulse). The FrameSync pulse's
length is irrelevant. Upon the (external) clock's
next 32 falling edges, 32 data bits in the sequence
Bit #31...Bit #0 will be detected, provided they
are transmitted with rising edges. Take account of
the following information:
– The bit frequency (receiving frequency) is exclu-
sively determined by the incoming clock pulses
and has a maximum limit of 16 MHz.
– The last data bit (Bit #0) must be followed by
transmission of at least one additional external
clock pulse to ensure that the interface's DSP
side acquires and buffers the data word. Simul-
taneously with this clock pulse, you can already
initiate another new transfer via a FrameSync
pulse.
• As of OUT 526: After a load_program_file, the
McBSP data will internally be permanently
acquired and buffered as soon as (new) data is
transmitted. Newer data words overwrite older
ones.
– After a reset via load_program_file
after activation of Processing-on-the-fly correc-
tion via set_fly_x_pos,
set_fly_rot_pos, the input values will be stored
to internal memory location 0.
– After activation of online positioning via
set_mcbsp_x, set_mcbsp_y
set_mcbsp_rot or set_mcbsp_matrix, the
input values will be stored to internal memory
locations 1 or 2 (see page
– The most recent fully transferred values can be
queried from a corresponding memory location
via read_mcbsp.
The McBSP interface always ignores the first
FrameSync signal after a
mcbsp_init, so available data won't be trans-
®
RTC 5 PC Interface Board
Rev. 1.9 e
4 Layout and Interfaces
and/or
set_fly_y_pos or
and/or
165).
load_program_file or
mitted. If necessary, a dummy value should be
initially sent to the interface (this applies to both
Processing-on-the-fly applications and online
positioning). You can use
for successful transmission.
• If using version OUT 525 or older, also see
"Version info" under get_mcbsp
get_mcbsp_list.
• As of OUT 532: After activation of Processing-on-
the-fly correction via set_mcbsp_in
set_mcbsp_in_list, the input values will be trans-
ferred to internal memory locations 0 and 3.
• As of OUT 537: After activation of Processing-on-
the-fly correction via set_multi_mcbsp_in
set_multi_mcbsp_in_list, the input values will be
transferred to internal memory locations 0
through 3.

4.4.7 Stepper Motor Control

The "STEPPER MOTOR" connector can supply signals
for controlling two stepper motors
shown in figure 23.
SWITCH1 (1)
ENABLE1 (3)
DIRECTION1 (5)
CLOCK1 (7)
GND (9)

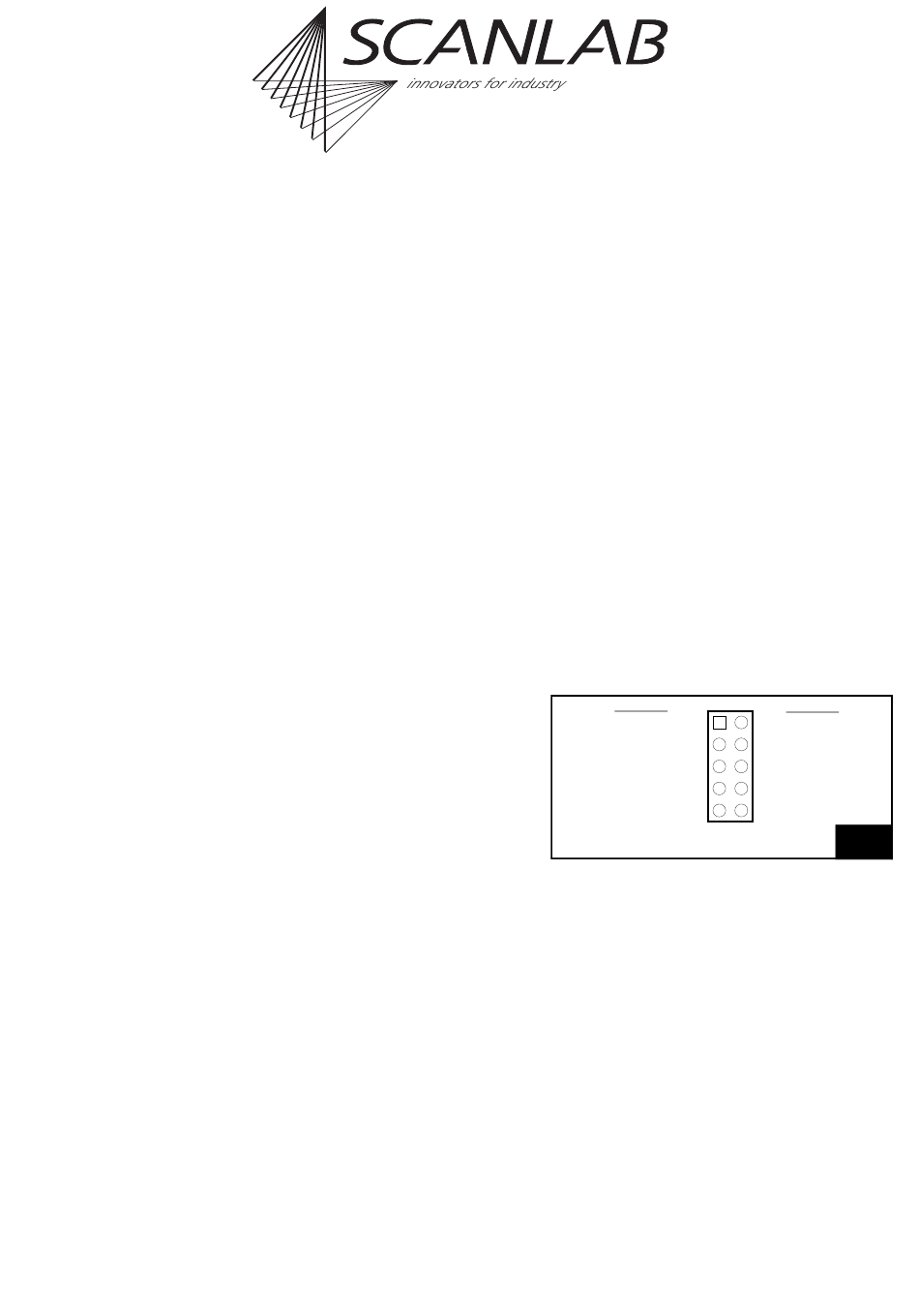

Pin-out of (on-board) "STEPPER MOTOR" connector
All signals are referenced to PC ground GND.
The outputs (ENABLE, DIRECTION and CLOCK) are TTL-
®
level signals (5 V). The RTC
clock signal of active-high 5 µs pulses (the CLOCK
signal is permanently LOW between these pulses).
The ENABLE signals can, for example, be used for
switching the motor current on and off. The
DIRECTION signals can set the direction and each
CLOCK pulse can be used to execute a single step.
The SWITCH inputs (active low) are connected inter-
nally to +3.3 V via 10 k pull-up resistors to facilitate
integration of a final switch signal (3.3 V or 5 V TTL
signal or input referenced to ground).
(1) Stepper motor signals are available only for RTC
DSP version numbers 2 and higher (see
®
#16-23). For older RTC 5 boards, stepper motor commands
will not execute.
read_mcbsp to check
and
or
or
(1)
. The pin-out is
(2) SWITCH2
(4) ENABLE2
(6) DIRECTION2
(8) CLOCK2
(10) GND
23
5 generates a periodic
®
5 boards with
get_rtc_version bits
53
