Scanlab RTC 5 PC Interface Board Installation And Operation Manual page 195

The scanners thereby move with equal speed beyond
the actual end point. 10 µs clock cycles that are
begun will be executed to completion (particularly for
pixel frequencies > 100 kHz).
PulseLength
LaserOn
Delay

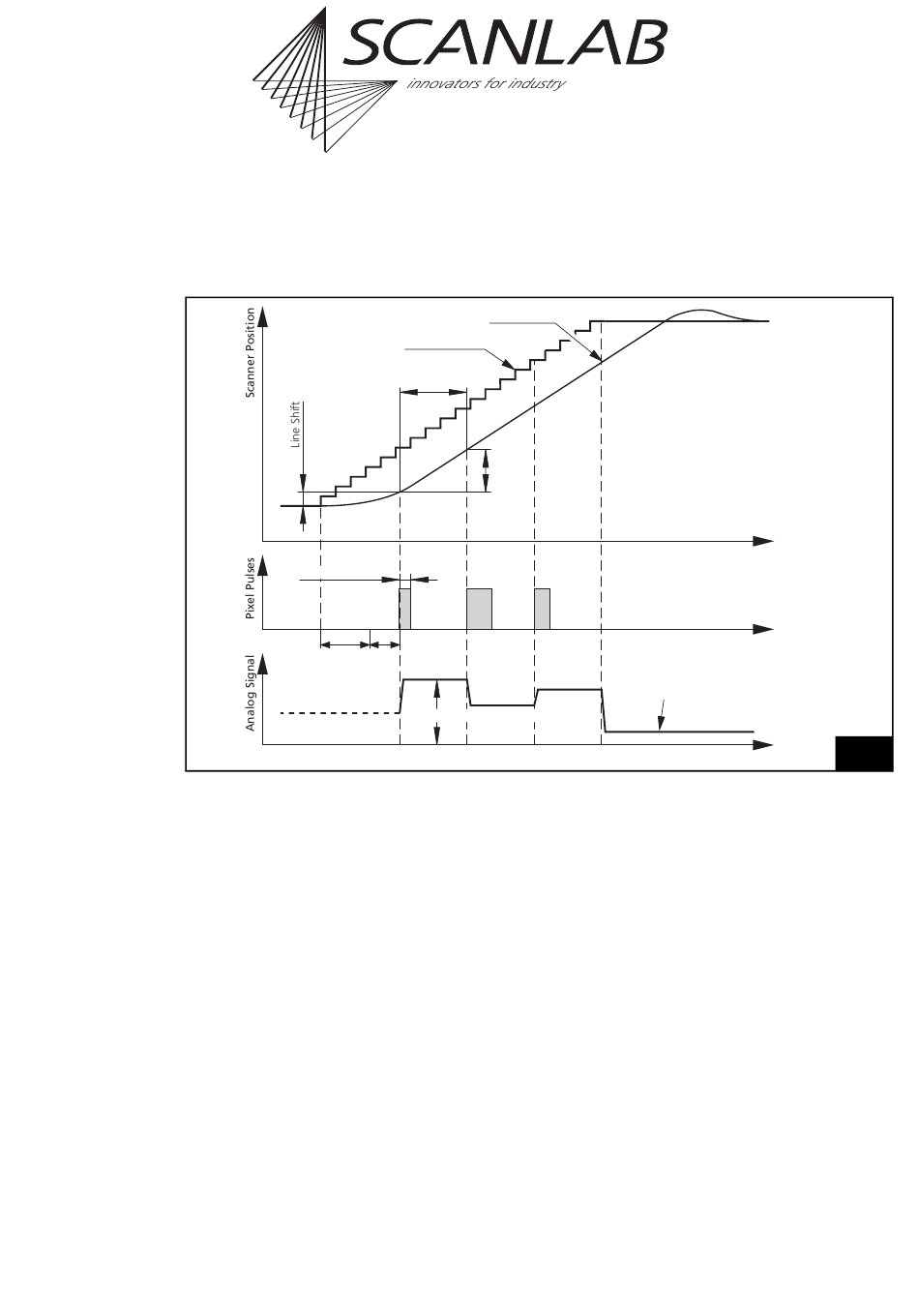

Timing of the scanner positions and the laser control signals in the pixel output mode.
The pixel output period in this example is approx. 4.5 microsteps.
The set_pixel_line command switches off the
"laser active" laser control signals at the beginning of
an image line (a LaserOff delay will be waited for, if
necessary, before switching off – e.g. when a
preceding mark command is still being processed).
The "laser active" laser control signals will then be
switched on with the first set_pixel/set_n_pixel
command, but delayed by a LaserOn Delay with
respect to the start of scanner motion. The pixel
pulses will be outputted possibly (in accordance with
the previously activated laser version and its set
values) delayed by an additional Pixel Delay (see
figure 56). The Pixel Delay is
• = 0 in CO mode
2
• = 0 (or Q-Switch delay) in YAG mode 1
• = length of the FirstPulseKiller signal (or Q-Switch
delay) in YAG mode 2
• = 10 µs (or Q-Switch delay) in YAG mode 3
• = Q-Switch delay in YAG mode 5.
®
RTC 5 PC Interface Board
Rev. 1.9 e
8 Advanced Functions for Scan Head and Laser Control
Real Position
Set Position
(Microvectors)
Pixel Period
= 2 x HalfPeriod
dX,dY
Pixel 0 Pixel 1
Pixel
Delay
AnalogOut Pixel Values
Pixel 2 Default Pixel
PulseLength = 0
AnalogOut = 0xFFF
or according to
set_laser_off_default
The analog signal (at the ANALOG OUT1 or
ANALOG OUT2 port) changes synchronously with the
leading edge of each pixel pulse (see
Note: The DA converter requires about 1.5 µs ... 3 µs to
produce a stable analog output signal. For pixel frequencies
above around 100 kHz (i.e. for a
320) digital-to-analog conversion can't always be fully
completed. For such pixel frequencies, the user must care-
fully verify that sufficient capability is available.
The pixel pulse delay or analog level change relative
to the scanner motion (i.e. the LaserOn delay and
pixel delay) should be set in such a way that the
galvanometer scanners' acceleration phase (in which
the scanners are brought to a constant speed) is
masked. Alternatively, distortions during the acceler-
ation phase can be suppressed via inserting some idle
pixels (e.g. with zero pulse length) at the beginning
of each image line.
Time
Time
56
Time
figure 56).
< approx.
HalfPeriod
195
