Laser Adapter (Optional) - Scanlab RTC 5 PC Interface Board Installation And Operation Manual

Laser Adapter (Optional)

An optional laser adapter from SCANLAB can be
®
plugged into the RTC 5's 15-pin LASER connector.
This adapter's 9-pin female D-SUB connector
provides the same signals and pin-out as the RTC
9-pin laser connector.
Notes
• The laser adapter can not be directly plugged into
®
the RTC 5 if an XY2-100 converter is already
plugged in.
• The BUSY OUT signal, 2-bit digital input and 2-bit
digital output are not available at the laser
adapter's 9-pin D-SUB connector.

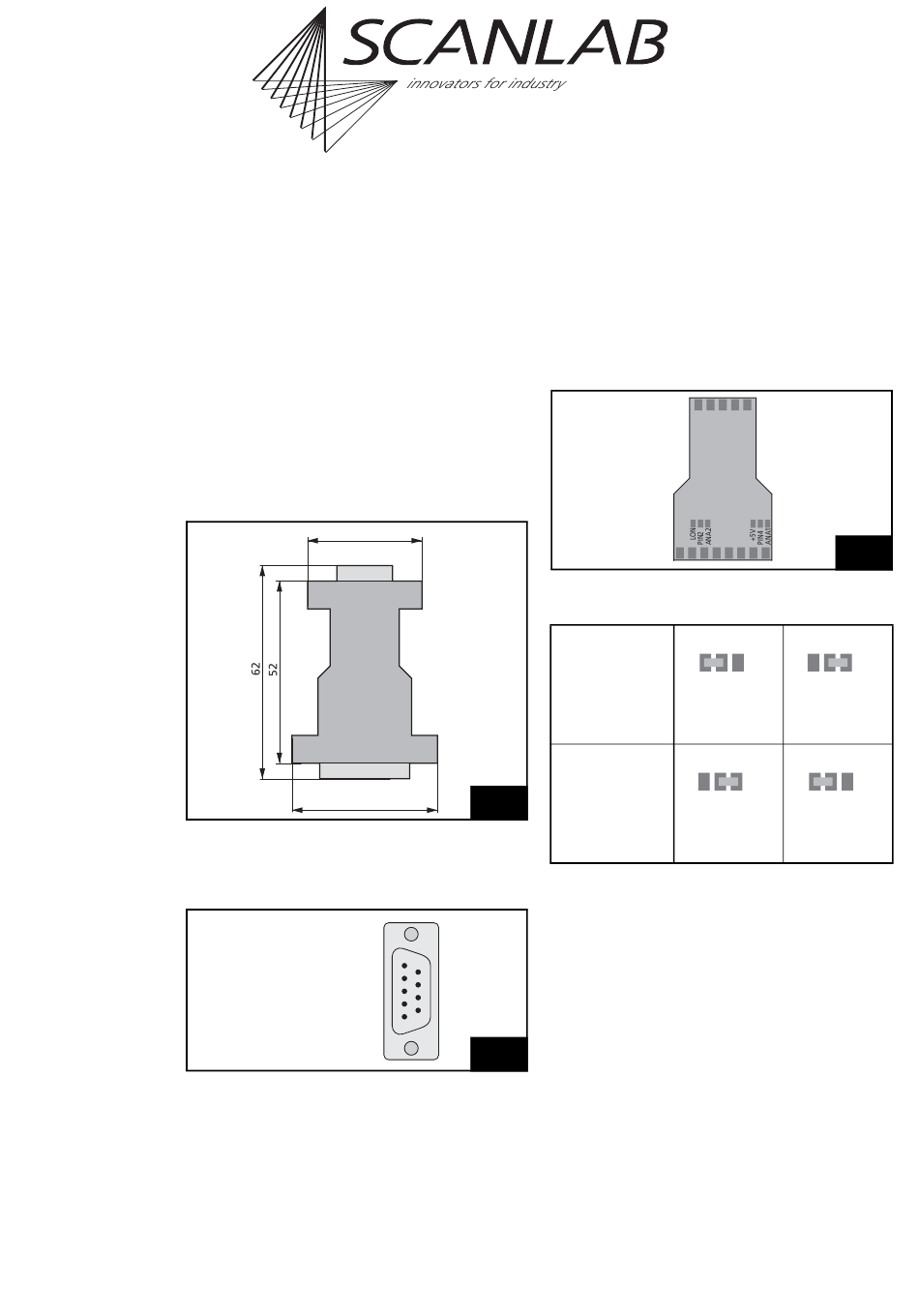

Figure 12 shows the dimensions of the laser adapter.
33
9-pin female D-Sub
15-pin male D-Sub
42
Dimensions of the optional laser adapter
The pin-out of the 9-pin D-SUB connector is shown in
figure 13.
LASER1 (1)
LASERON / ANALOG OUT2 *) (2)
LASER2 (3)
ANALOG OUT1 / +5 V * (4)
GND (5)
Pin-out of the laser adapter's 9-pin female D-SUB connector
* dependent on the jumper configuration of the solder jumpers on
the laser adapter's PCB
®
RTC 5 PC Interface Board
Rev. 1.9 e
4 Layout and Interfaces
The signals at pins (2) and (4) of the 9-pin D-SUB
connector can be selected via two solder jumpers in
the laser adapter. To do so, carefully open the laser
adapter's housing via its four clip latches (e.g. using
a screwdriver). The solder jumpers JP1 and JP2 are on
®
4's
the laser adapter's PCB, between the two D-SUB
connectors.
jumpers on the PCB. The table below lists the possible
jumper settings and the corresponding signals.
Positions of solder jumpers JP1 and JP2 on the laser adapter's PCB
Thickness
Jumper JP1
16
(signal at pin 2)
Jumper JP2
(signal at pin 4)
12
(6) GND2
(7) GND2
(8) /START
(9) /STOP
13
Figure 14 shows the positions of the
JP1 JP2
1 1
Position 1-2 Position 2-3
LASERON ANALOG OUT2
(standard
configuration)
Position 1-2 Position 2-3
ANALOG OUT1 +5 V
(standard
configuration)
14
