12.7.3
G
Operating manual GMK 6400

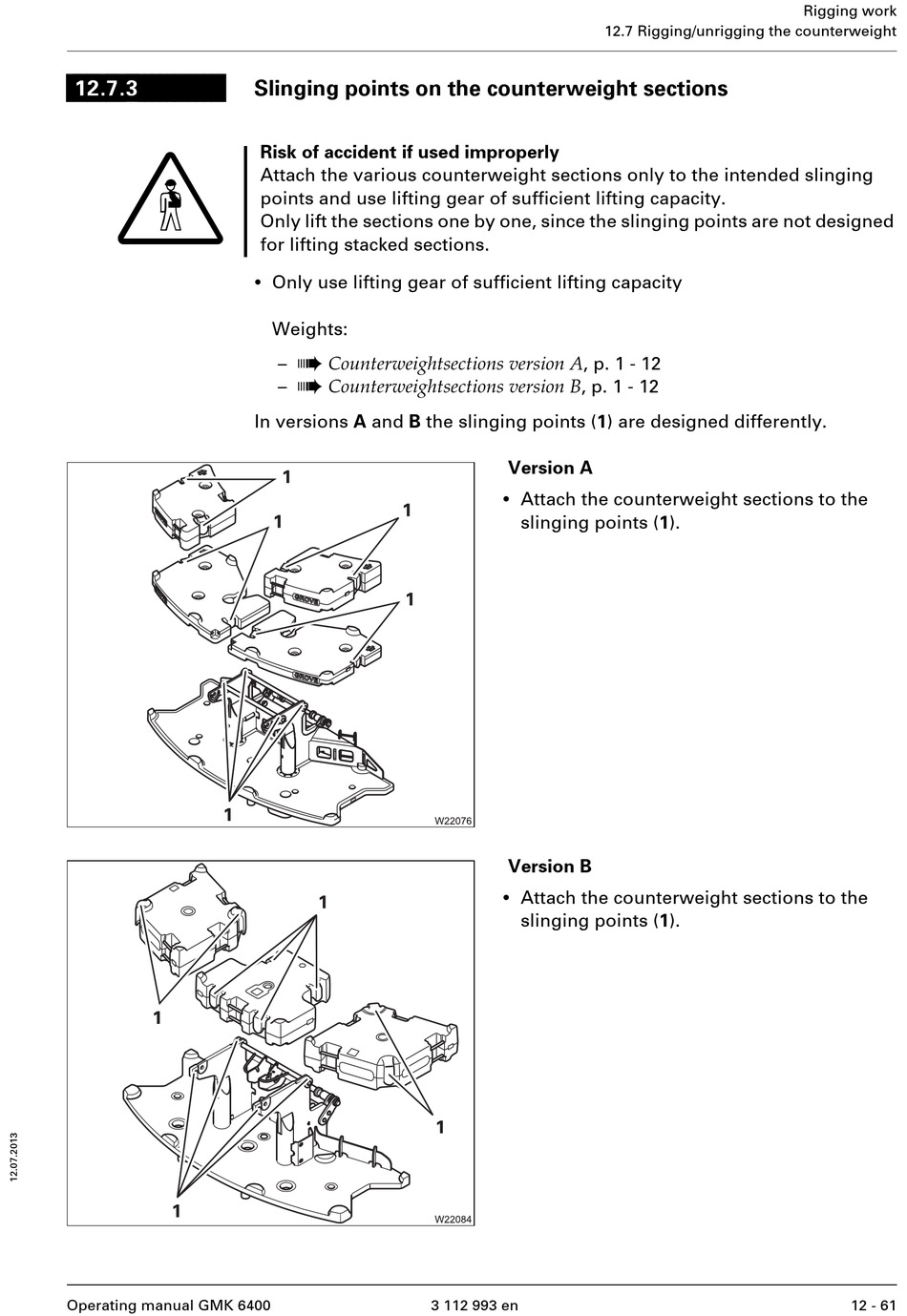

Slinging points on the counterweight sections

Risk of accident if used improperly
Attach the various counterweight sections only to the intended slinging
points and use lifting gear of sufficient lifting capacity.
Only lift the sections one by one, since the slinging points are not designed
for lifting stacked sections.
•
Only use lifting gear of sufficient lifting capacity
Weights:
à
Counterweightsections version A , p. 1 - 12
–
à
– Counterweightsections version B , p. 1 - 12
In versions A and B the slinging points (1) are designed differently.
Version A
•
Attach the counterweight sections to the
slinging points (1).
Version B
•
Attach the counterweight sections to the
slinging points (1).
3 112 993 en
12.7 Rigging/unrigging the counterweight
Rigging work
12 - 61
