Adding or Removing Cabinet Hardware
Installing the 120A3A CSU
See Figure
19 18 17 16 15 14
Figure Notes
1. Rear of carrier containing DS1 circuit pack
2. 120A3A CSU
3. 4-pair cord to network interface (H700-383)

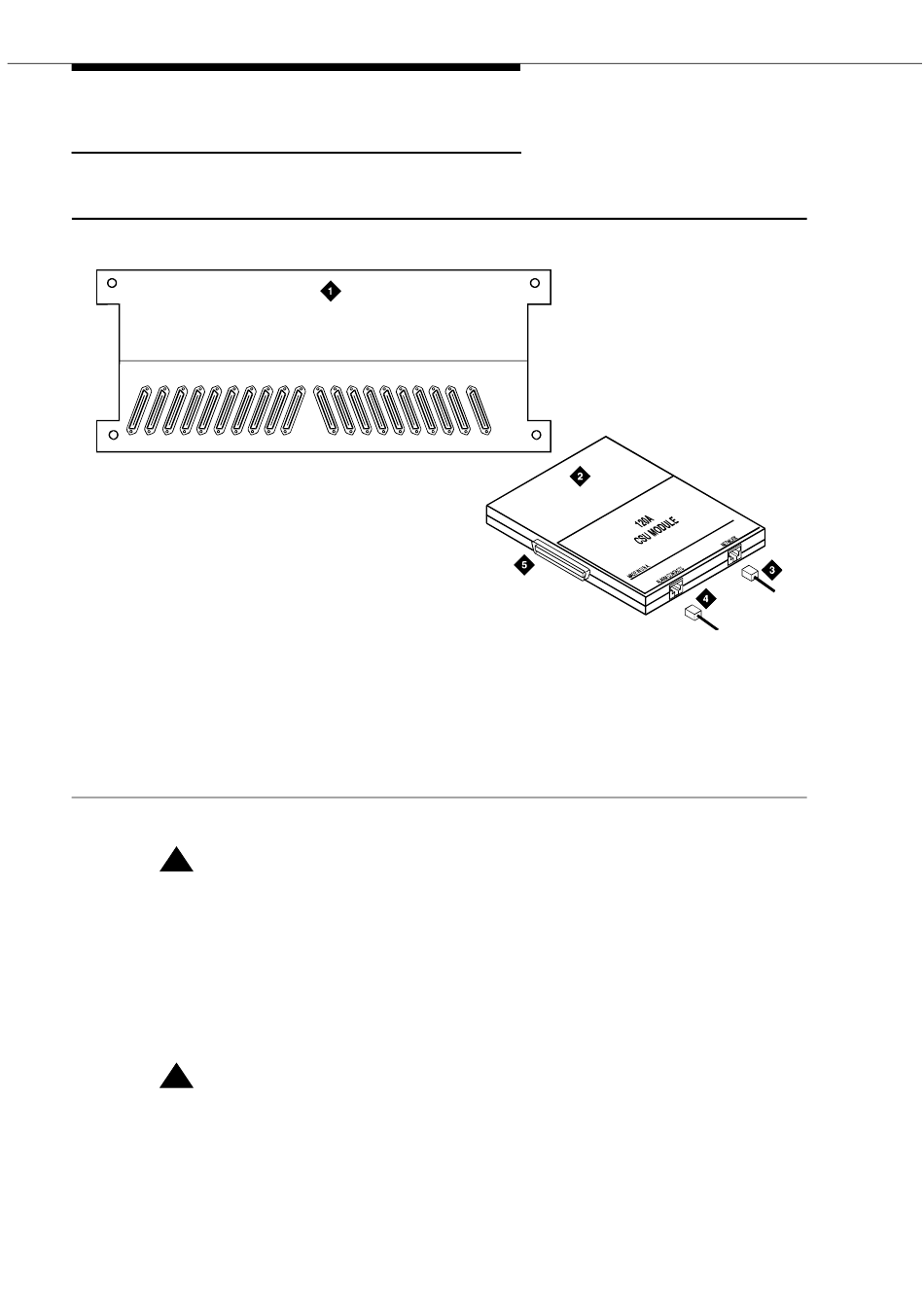

Figure 7-17. 120A3A Channel Service Unit Module
!
CAUTION:
Do not plug the 120A3A into any circuit pack other than a TN464F or
TN767E (or later release/vintage) or TN2464 or Tn2313. Do not connect the
120A3A to any interface other than a 700A DS1 loopback jack.
Be sure the DS1 circuit pack is set for 24-channel operation (1.544 Mbps).
The 120A3A does not operate with the 32-channel interface. A switch on the
circuit pack or administration sets this option.
!
CAUTION:
Always wear an anti-static wrist strap when installing a 120A3A module. Do
not touch the external alarm cable when it is connected to the 120A3A.
Static discharge can damage connector terminals and relays.
1. Unplug the DS1 circuit pack from its slot.
7-102
Issue 5 October 2002
7-17.
13 12 11 10 09 08 07 06 05 04 03
AUX
02 01
icsupic RBP 032896
4. DW8A-DE 4-pair cord to alarm contacts (optional)
5. To 25-pair connector on rear of carrier containing DS1
circuit pack
555-233-115
