Adding New Carriers and EPN Cabinets
14. Dress the cable using the supplied cable ties and cable tie mounts. See
Figure

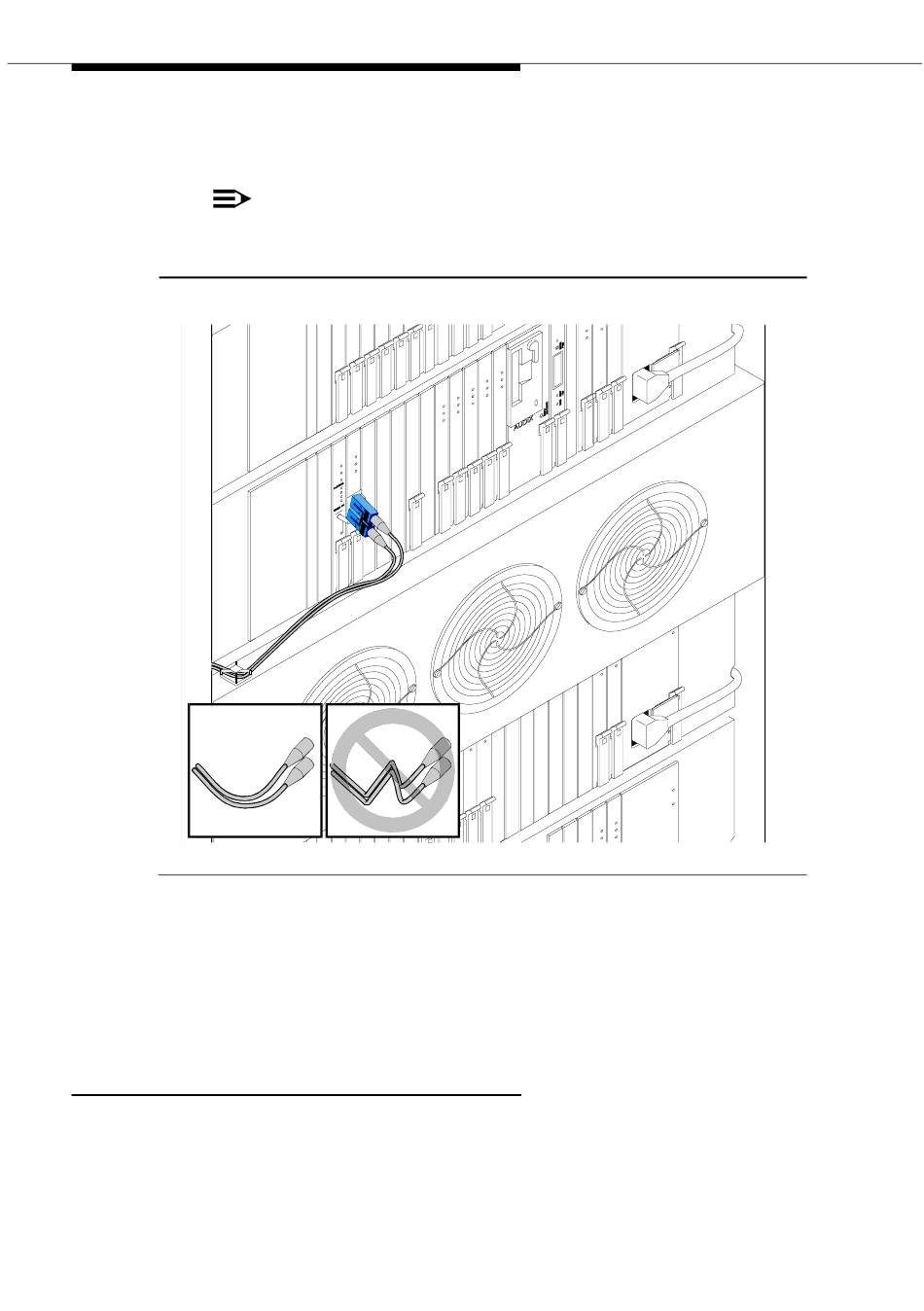

Figure 6-24. Dress the Cable
15. If a circuit pack was removed to access 2 open slots (from
Preparation'' on page
16. Close the front door.
17. Discard the pass-thru tool.
Test the Installation
1. Log in as craft.
2. Type list configuration all and press
pack appears in the correct slot and that there are no circuit pack conflicts.
6-46
Issue 5 October 2002
6-24.
NOTE:
Dress the fiber optic cable straight down the front of the circuit pack.
Do not allow the cable to cross in front of another circuit pack.
6-35), replace the circuit pack into its original slot.
lcda4fop RPY 021398
''Cabinet
to determine if the new circuit
Enter
555-233-115
