Add a Control Carrier (Add Duplication)
TDM/LAN CABLE
WP91716 L6
TDM/LAN CABLE
WP91716 L6
NOTE:

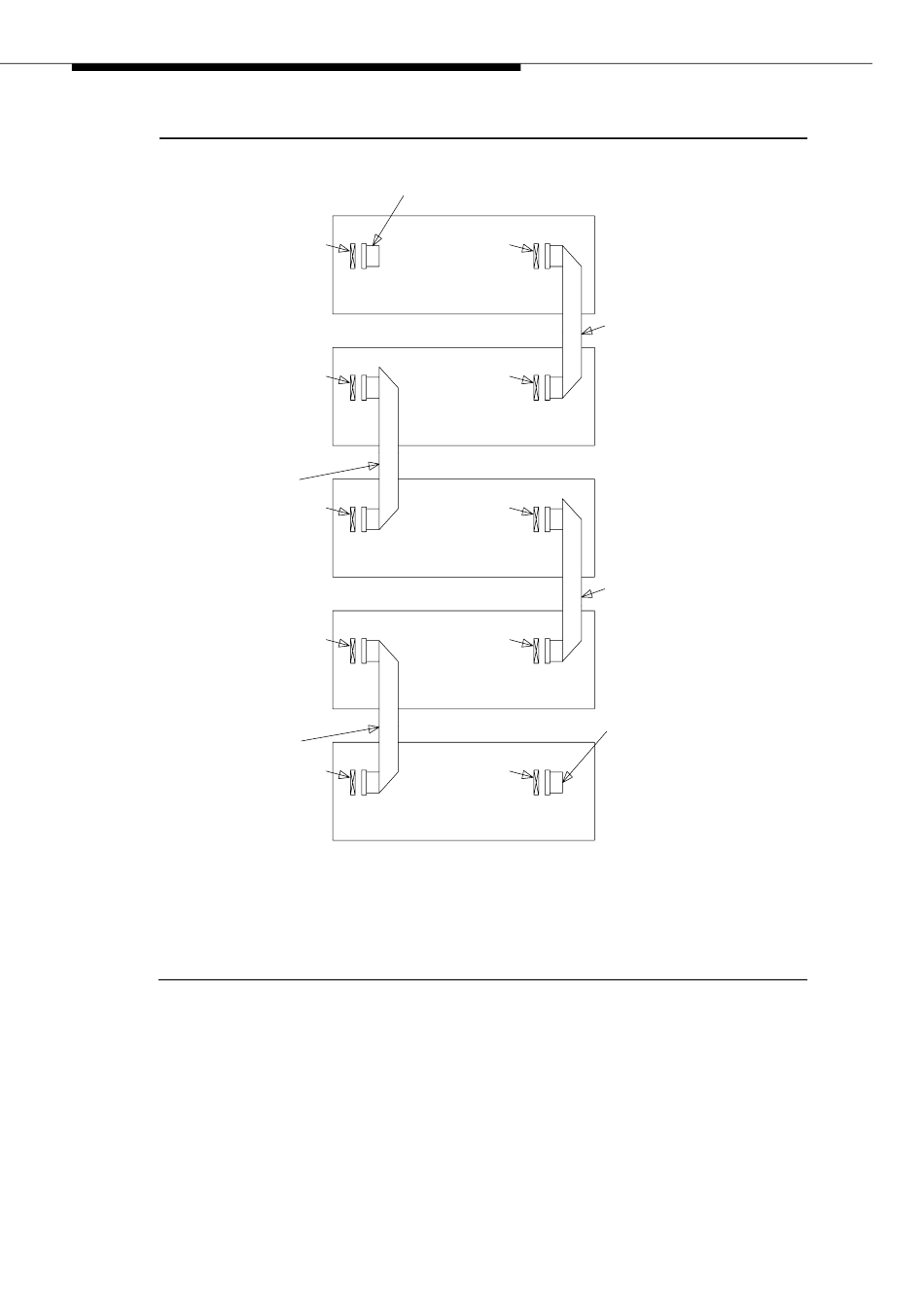

Figure 6-11. TDM/LAN Connections for High-Reliability PPN
9. Connect the loose end of the TDM/LAN cable (between the "A" and "B"
carriers) to the pin-field block marked "TDM/LAN" on the left side of the "B"
carrier (See
connected to the "A" carrier when the old carrier was removed.
555-233-115
TDM/LAN BUS TERMINATOR
(ZAHF4)
SLOT 21
SLOT 21
CONTROL CARRIER
SLOT 21
CONTROL CARRIER
SLOT 21
SLOT 21
REAR VIEW
ON PORT CARRIER J58890BB-1, CONNECT THE TDM/LAN CABLE OR TDM/LAN TERMINATOR TO
SLOT 02. ON PORT CARRIERS J58890BB-2 AND -3, CONNECT THE TDM/LAN CABLES TO SLOT 01.
Figure 6-11 and
SEE NOTE
PORT CARRIER
SLOT 00
SLOT 01
SEE NOTE
PORT CARRIER
SEE NOTE
PORT CARRIER
Table 6-2). The other end remained
