Upgrading R5si/R6si to an Avaya DEFINITY Server R
EPN running Avaya MultiVantage Software
Install Cable Clamps
1. Behind the cabinets, using screws provided, install 2 cable clamps on each
ground plate. See
Figure Notes
1. Port Cabinet
2. Control Cabinet

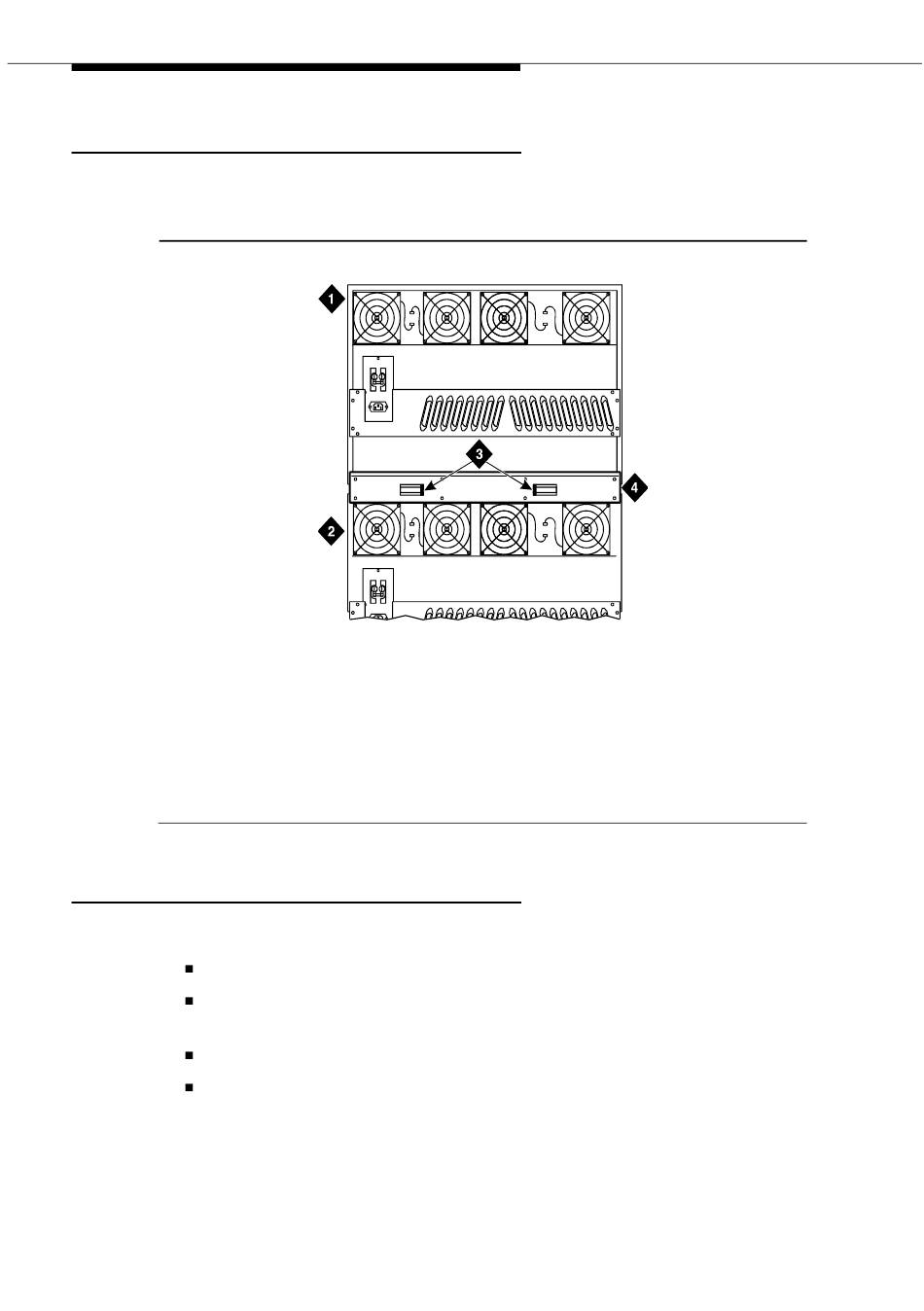

Figure 4-8. Location of Ground Plate and Cable Clamps
Retranslate Port Circuits
If port circuit packs in the Release 5/6si control cabinet were relocated in order to:
Use a TN748B to replace the tone detector circuits on a TN756
Put a critical port circuit pack, requiring longer nominal battery holdover (a
DS1 or an Announcement circuit pack), in a port slot
Put a TN570 EI circuit pack in port slot 1 or port slot 2 (for a second EPN)
Put a TN755B power supply in port slots 16 and 17
1. Type list configuration all and press
were retranslated during the off-site software upgrade. If not, retranslate
them now. Refer to Administrator's Guide for Avaya MultiVantage Software.
4-34
Issue 5 October 2002
Figure 4-8. These clamps hold the port cables.
3. Cable Clamps
4. Ground Plate
Enter
cadf008 CJL 103096
to verify the port circuit packs
