Upgrading a Multicarrier G2 Universal Module to Avaya
DEFINITY Server R EPN running Avaya MultiVantage
Software
Figure Notes
1. Port Carrier ("C" Position)
2. ZAHF4 TDM/LAN Terminator
3. TDM/LAN Cable (WP91716 L6)
4. Module Control Carrier ("A"
Position)
5. Port Carrier ("D" Position)
6. Port Carrier ("E" Position)

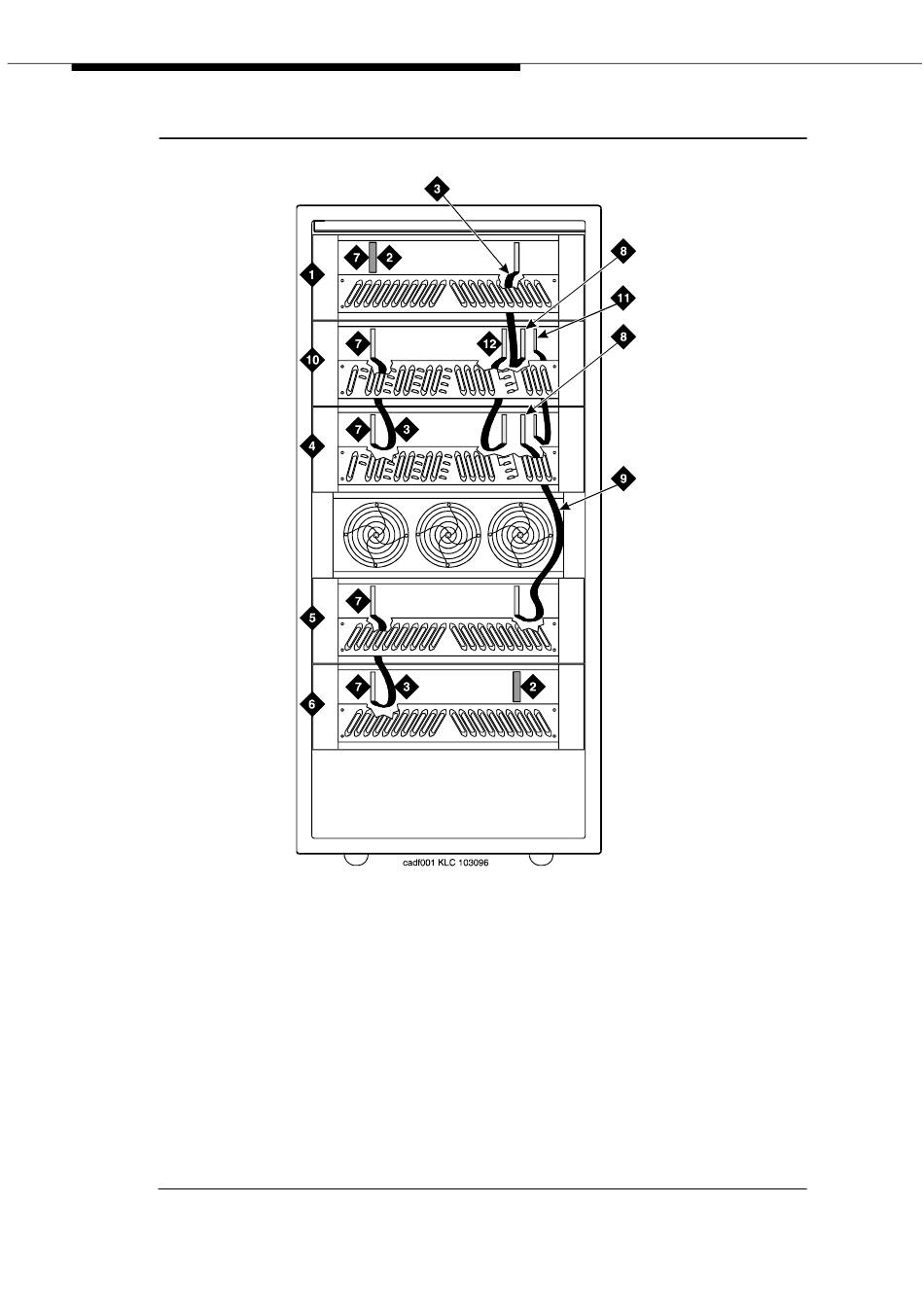

Figure 5-9. TDM/LAN Connections for Duplicated G2 Universal Module
5-74
Issue 5 October 2002
7. Slot 21
8. Slot 01
9. TDM/LAN Cable (WP91716 L7)
10. Duplicated Module Control Carrier
("B" Position)
11. ICCA Cable (Slot 03)
12. ICCB Cable
