Avaya DEFINITY Server R Manual page 503

Add IP Solutions
8
7
6
5
4
indfmapd KLC 031299

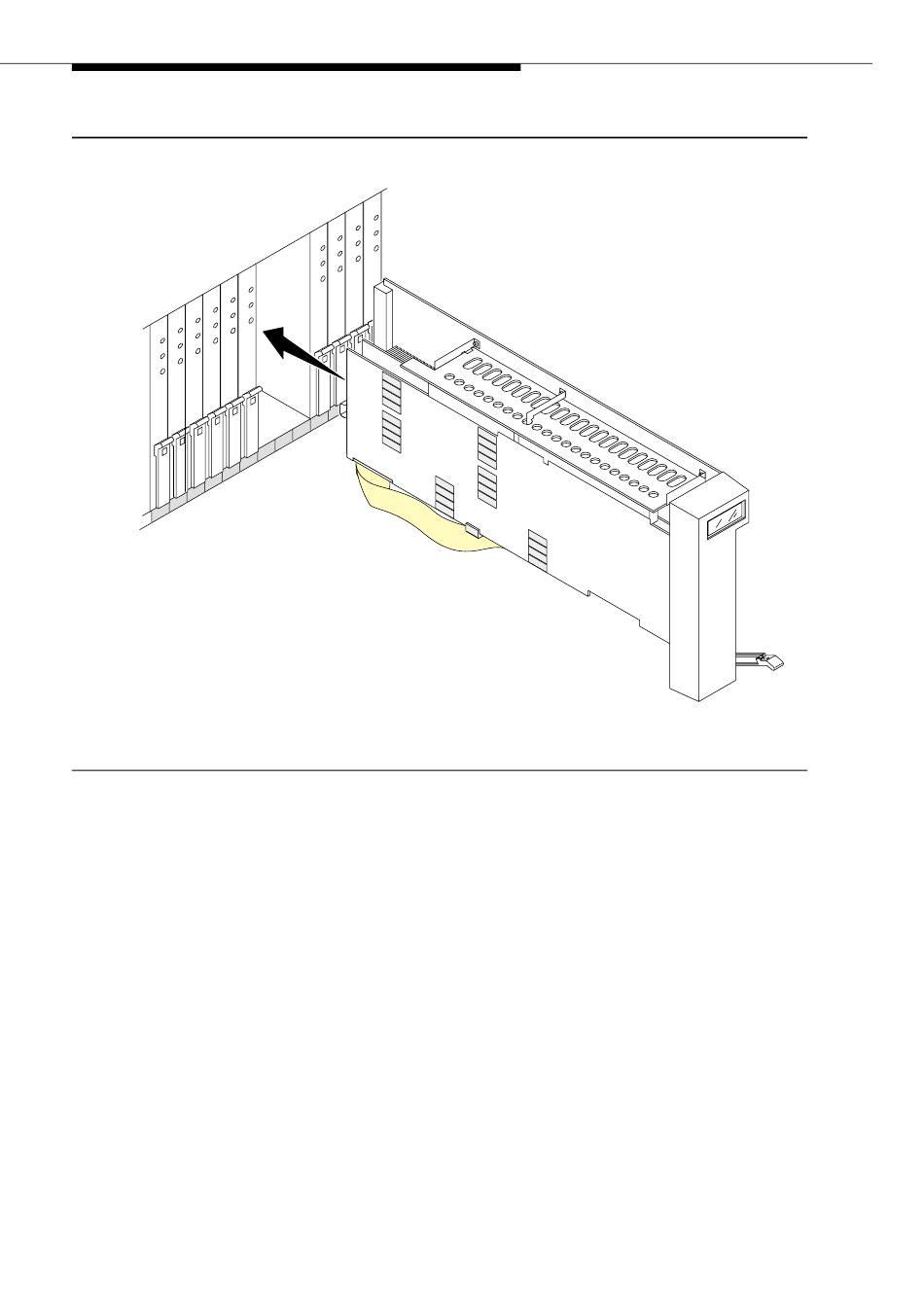

Figure 7-16. J58890MA-1 L30 IP Interface Assembly
Test the Modem
1. Check for dial tone.
2. Contact Avaya Customer Support and ask a representative to dial into your
IP Interface server.
Administer the IP Interface
Administration is done either locally or remotely. If administered locally, proceed
with the following administration steps on the attached keyboard, mouse, and
monitor. If administered remotely, call your service representative to start the
process.
Administration Steps
1. Log in as craft.
2. Type change circuit-pack and press
555-233-115
1 6
1 5
1 4
1 3
1 2
1 1
1 0
9
.
Enter
Issue 5 October 2002
7-87
