Upgrading a Multicarrier G2 Universal Module to Avaya

DEFINITY Server R EPN running Avaya MultiVantage

Remove Carrier Ground Straps

1. Disconnect the top and bottom ground straps from the "A" carrier. See

Figure Notes

1. Rear of Cabinet

2. Port Carrier ("C" Position)

3. Ground Jumpers

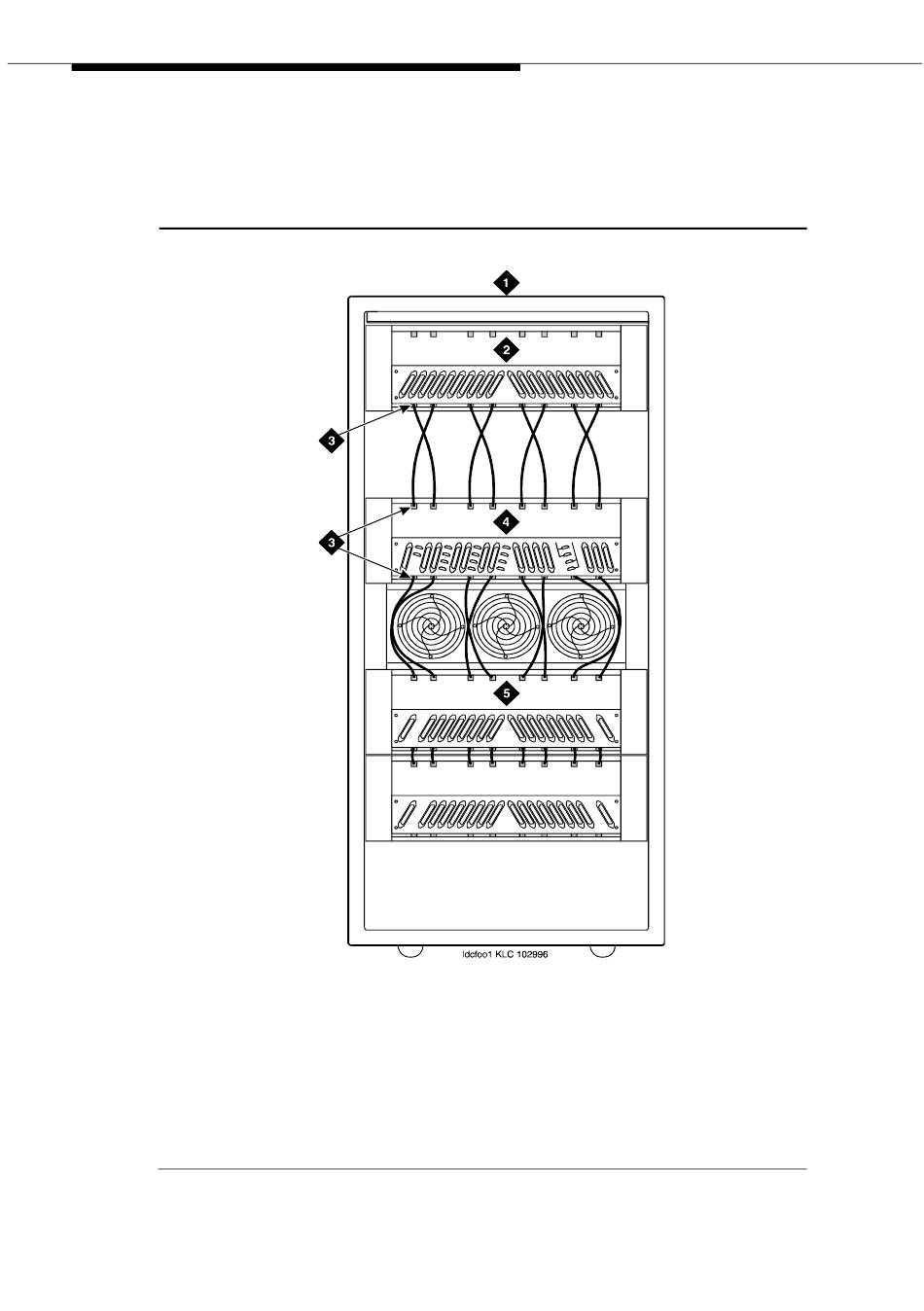

Figure 5-2. Location of Ground Jumpers

Issue 5 October 2002

5-2. These straps will reconnect to the new "A" carrier.

4. Module Control Carrier ("A"

5. Port Carrier ("D" Position)
