Add DCS Interface
cydflan3 KLC 032999
Figure Notes
1. 259A Connector
2. DW8 Cable

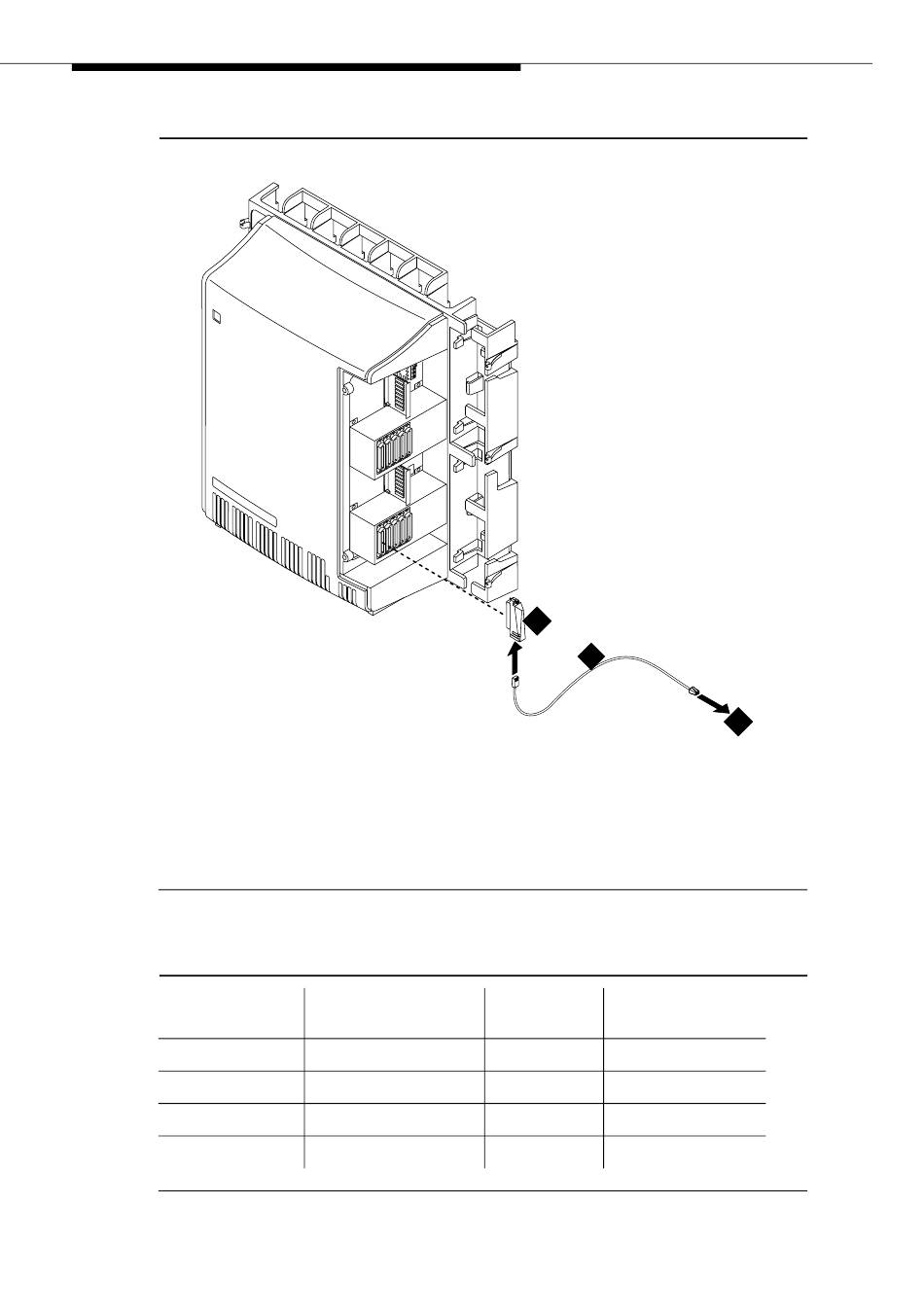

Figure 7-5. Cable Connection for C-LAN
Table 7-9. TN799C Pinout
Backplane Pin
103
003
104
004
555-233-115
3. Hub or 110 (purple) wall field
25-Pair Wire Color
White/Orange
Orange/White
White/Green
Green/White
1
2
Peripheral
Lead Name Connector Pin
TD+ 27
TD- 2
RD+ 28
RD- 3
