Local Control Panel (LCP) O...
Callout Key
number
20 Auto On
4 4
21 Reset
Table 4.4 Operation Keys and Reset
4.3 Graphical User Interface
4.3.1 Supported Languages
The user interface language is English, regardless of
whether the LCP is connected to the servo drive or the
SAB.
4.3.2 LCP Display
The display is backlit and has a total of 6 alphanumeric
lines. The display lines show the direction of rotation
(arrow), the selected set-up, and the programming set-up.
The display is divided into 3 sections (see Illustration 4.3).
1
2
3

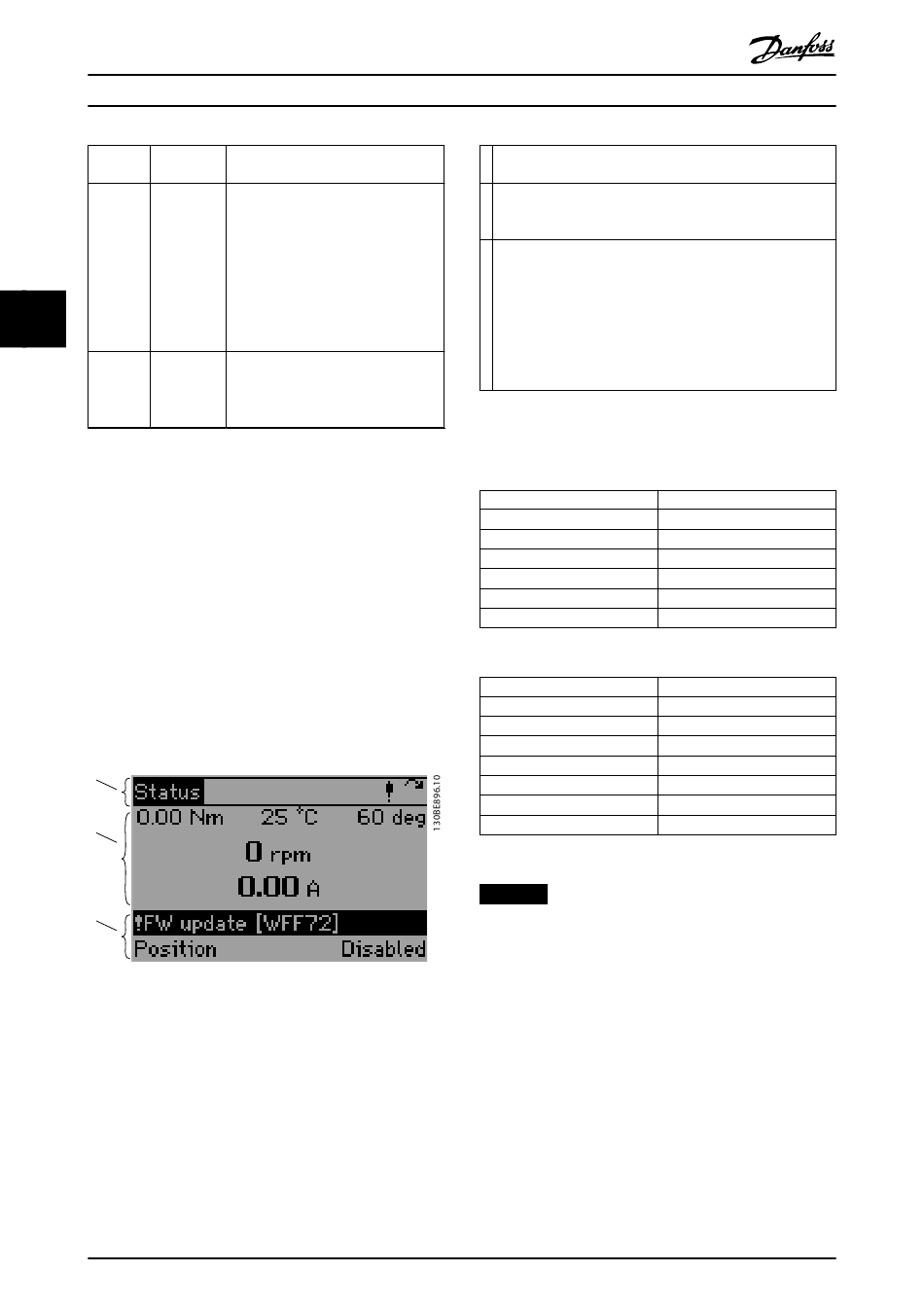

Illustration 4.3 LCP Display Overview
96
®
VLT Integrated Servo Drive ISD
Function
Puts the system in remote operational
mode.
In Auto On mode, the device is
controlled by fieldbus (PLC).
Switching between Auto On mode and
Hand On mode is only possible when
the servo drive is in state Switch on
disabled and/or the SAB is in state
Standby.
Resets the servo drive or SAB after a
fault has been cleared.
The reset is only possible when in
Hand On mode.
