Servo Drive Operation
MoveDistanceSegment:
MoveDistanceSegments are used for movements with no
2
2
predefined rotation angle. The desired rotor angle is given
to the axis during run-time. It must be given before the
beginning of the segment. It must be given in every
machine cycle (see Table 2.53 in chapter 2.4.5.6 Commands
During Operation).
This segment is mostly used together with an external
camera for object alignment. The start and end velocity,
and the start and end acceleration can be parameterized.
The parameter that is sent during run-time must be given
in revolutions of rotor angle. The rotor angle must be sent
at least 5 ms before the segment begins.
If no parameter is sent for this segment, the axis reports an
error (see chapter 2.4.5.7 Notifications from the Servo Drive)
and assumes a distance of 0. An error message is sent
when passing the precNode of this segment. A new
parameter message, meant for the next cycle, can be sent
to the servo drive when the succNode of this segment has
been passed.
startVel
startPos
precNode

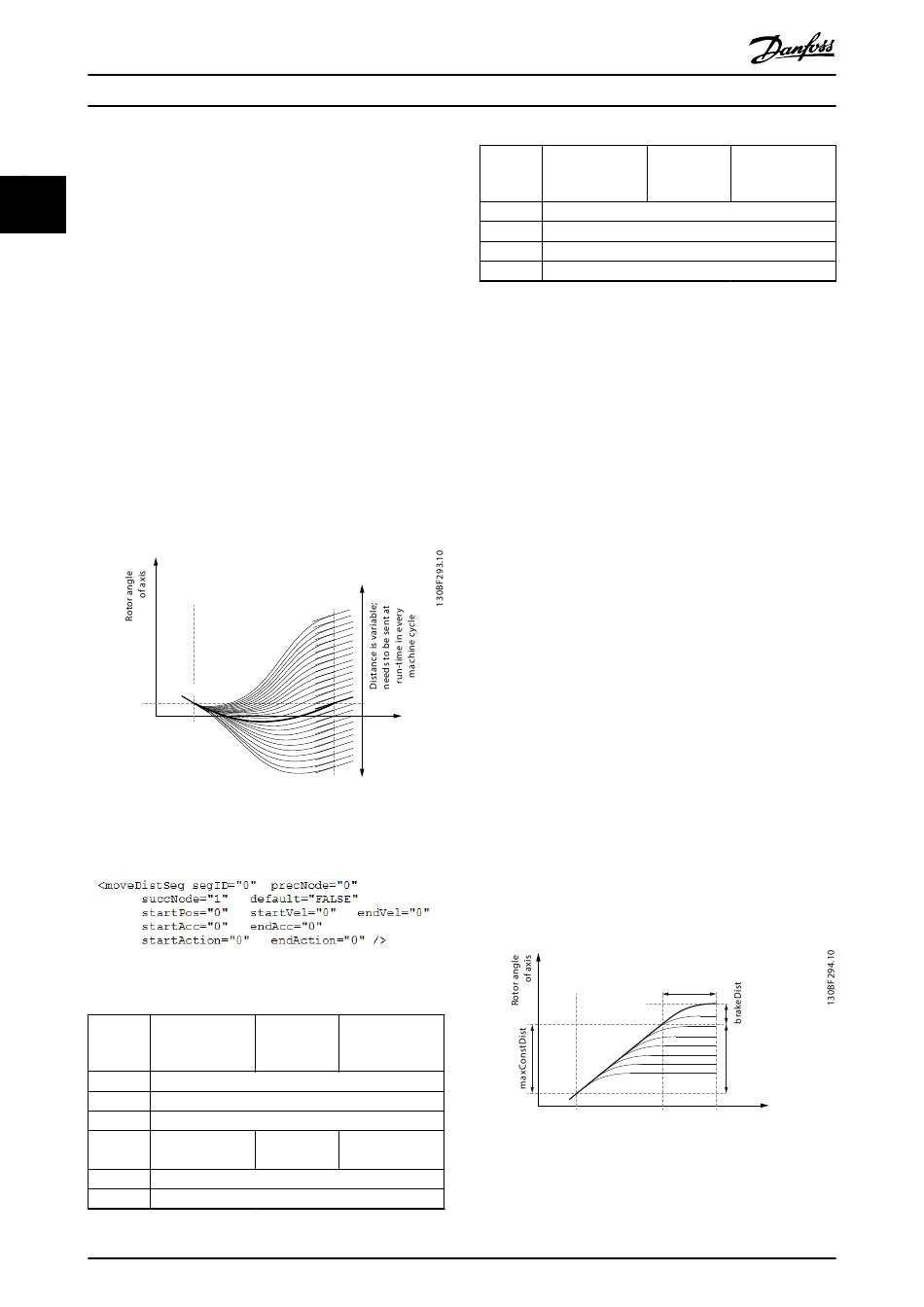

Illustration 2.86 MoveDistanceSegment
Illustration 2.87 Start/Endpoint Representation
Mandatory/
Attribute
optional
(+default value)
segID
Same as in Table 2.17.
precNode
Same as in Table 2.17.
succNode
Same as in Table 2.17.
startPos
O
startVel
Same as in Table 2.18.
endVel
Same as in Table 2.18.
58
®
VLT
Integrated Servo Drive ISD
endVel
Guide
value
succNode
Value range/
allowed
Description
values
Float
See Table 2.18 for
type= relative.
Danfoss A/S © 01/2017 All rights reserved.
®
510 System
Mandatory/
Value range/
Attribute
optional
allowed
(+default value)
values
startAcc
Same as in Table 2.18.
endAcc
Same as in Table 2.18.
startAction Same as in Table 2.17.
endAction Same as in Table 2.17.
Table 2.20 Attributes for MoveDistanceSegment in
Start/Endpoint Representation
Coefficient representation: This representation is not
available.
FlyingStopSegment:
The FlyingStopSegment is used to stop the servo drive out
of a synchronous movement at a position, which can be
determined at run-time. This angle is usually determined
by a camera system. The motion consists of 2 parts, a
constant rotation, which length is defined by the sent
parameter, and a deceleration polynomial for stopping the
servo drive (a polynomial of 3
must be passed before the segment has started. The
parameter can be in a range from 0° to maxConstantDist.
The value is given as an absolute value. The direction is
determined by the direction of the velocity.
The rotor angle must be sent during run-time but before
the beginning of this segment. When the constant part has
been processed for the parameter, which was given, the
stopping part of the segment starts. This braking
polynomial is always the same, independent of the
remaining distance to the end of the segment.
The parameter that is sent during run-time must be given
in revolutions of rotor angle. The rotor angle must be sent
at least 5 ms before the segment begins. If no parameter is
sent for this segment, the axis reports an error (see section
Notifications from the servo drive in this sub-chapter) and
assumes a distance of maxConstDist. The error message is
sent when passing the precNode of this segment. A new
parameter message, meant for the next cycle can be sent
to the servo drive when the succNode of this segment was
passed.
startVel
startPos
precNode
Illustration 2.88 FlyingStopSegment
Description
rd
degree is used). The angle
brakeLength
Distance is variable;
needs to be sent at
run-time in every
machine cycle
succNode
