Servo Drive Operation
2 2
Switch03
1000
Axis is moving continuously in positive direction

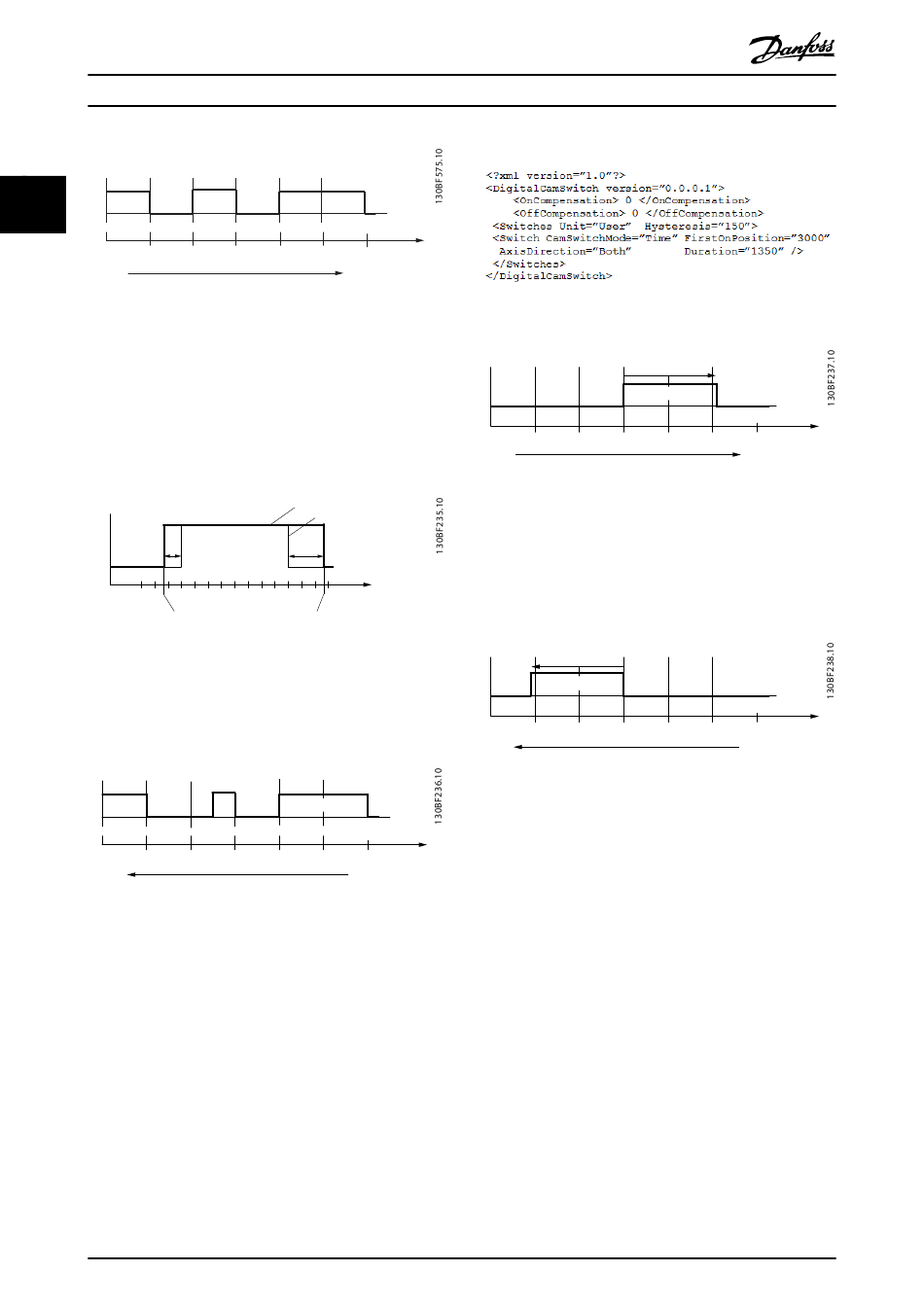

Illustration 2.122 Example 1 - Behavior of Output in Positive
Direction
Illustration 2.122 shows the behavior of the output when
the axis is moving continuously in a positive direction. The
axis is a modulo axis with a modulo length of 5000. It does
not include on/off compensation or hysteresis.
125
ms
Resulting position depends on the current velocity
Illustration 2.123 Example 1 - Use of On/Off Compensation
Illustration 2.123 shows the additional use of on compen-
sation of 125 ms and off compensation of 250 ms. The axis
is moving continuously in a positive direction.
Switch03
1000
Axis is moving continously in negative direction
Illustration 2.124 Example 1 - Behavior of Output in Negative
Direction
Illustration 2.124 shows the behavior of the output when
the axis is moving continuously in a negative direction.
The axis is a modulo axis with a modulo length of 5000. It
does not include on/off compensation or hysteresis.
82
Switch01
Switch03
2000 3000 4000 5000
Resulting output with delay
Without delay
Switch01
250
ms
2000 2500
3000
Switch02
Switch03
2000 3000 4000 5000
Danfoss A/S © 01/2017 All rights reserved.
®
VLT Integrated Servo Drive ISD
Example 2:
Position
1000
Illustration 2.125 Example 2
1000
Axis is moving continously in positive direction
Illustration 2.126 Example 2- Behavior of Output in Positive
Direction
Illustration 2.126 shows the behavior of the output when
the axis is moving continuously in a positive direction. The
axis is a modulo axis with a modulo length of 5000. It does
not include on/off compensation or hysteresis.
1000
Axis is moving continously in negative direction
Illustration 2.127 Example 2- Behavior of Output in Negative
Direction
1000 Position
Illustration 2.127 shows the behavior of the output when
the axis is moving continuously in a negative direction.
The axis is a modulo axis with a modulo length of 5000. It
does not include on/off compensation or hysteresis.
2.5.2 ISD Touch Probe
This functionality stores the position actual value and a
time stamp at the rising or falling edge of the configured
digital input. This functionality is available in all modes of
operation for each input individually.
The function is configured using object 0x60B8 (see
chapter 7.18.1 Parameter: Touch Probe Function (0x60B8)),
where the different options regarding the trigger event
can be selected.
®
510 System
1350 ms
Switch04
2000 3000 4000 5000
1350 ms
Switch04
2000 3000 4000 5000
1000 Position
