VelocitySegment:
The VelocitySegment is used for a movement with constant
velocity, independent from the velocity of the guide value.
It is similar to a P1 TimePoly of type relative, but velocity
controlled instead of position controlled.

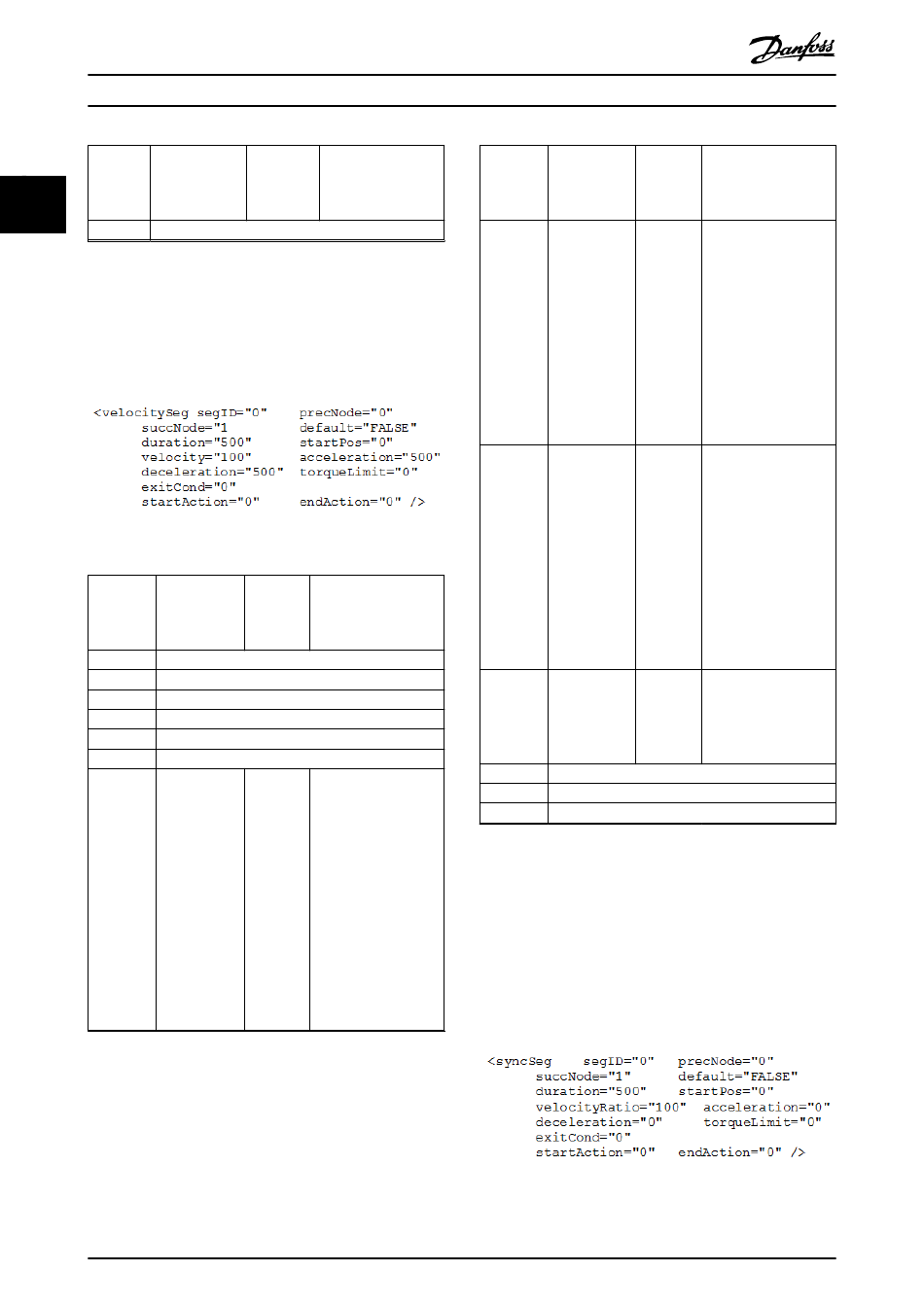

Illustration 2.97 Start/Endpoint Representation
Attribute Mandatory/
optional
(+default
value)
segID Same as in Table 2.26.
precNode Same as in Table 2.26.
succNode Same as in Table 2.26.
default Same as in Table 2.26.
duration Same as in Table 2.26.
startPos Same as in Table 2.18.
velocity M
64
®
VLT Integrated Servo Drive ISD
Value Description
range/
allowed
values
Value Description
range/
allowed
values
Float Velocity of the axis
during this segment.
The velocity must be
given in rps.
To ensure smooth
movements, the
velocities of all
segments that are
connected in the same
node should be the
same. If this is not
parameterized correctly,
a jump in velocity may
occur.
