Operation with ISD Toolbox
5.7.7.2 Property Window
The Property Window shows all CAM profiles that are
opened in the CAM Editor in the form of a project structure
(profile tree). The properties of the selected CAM profile
elements are shown below the project structure. At the
bottom of the Property Window, the information and data
area shows textual information for the currently selected
CAM profile element. The Property Window is shown in
Illustration 5.57.
1
2
3
1 Profile tree
2 Parameter list
3 Information and data area

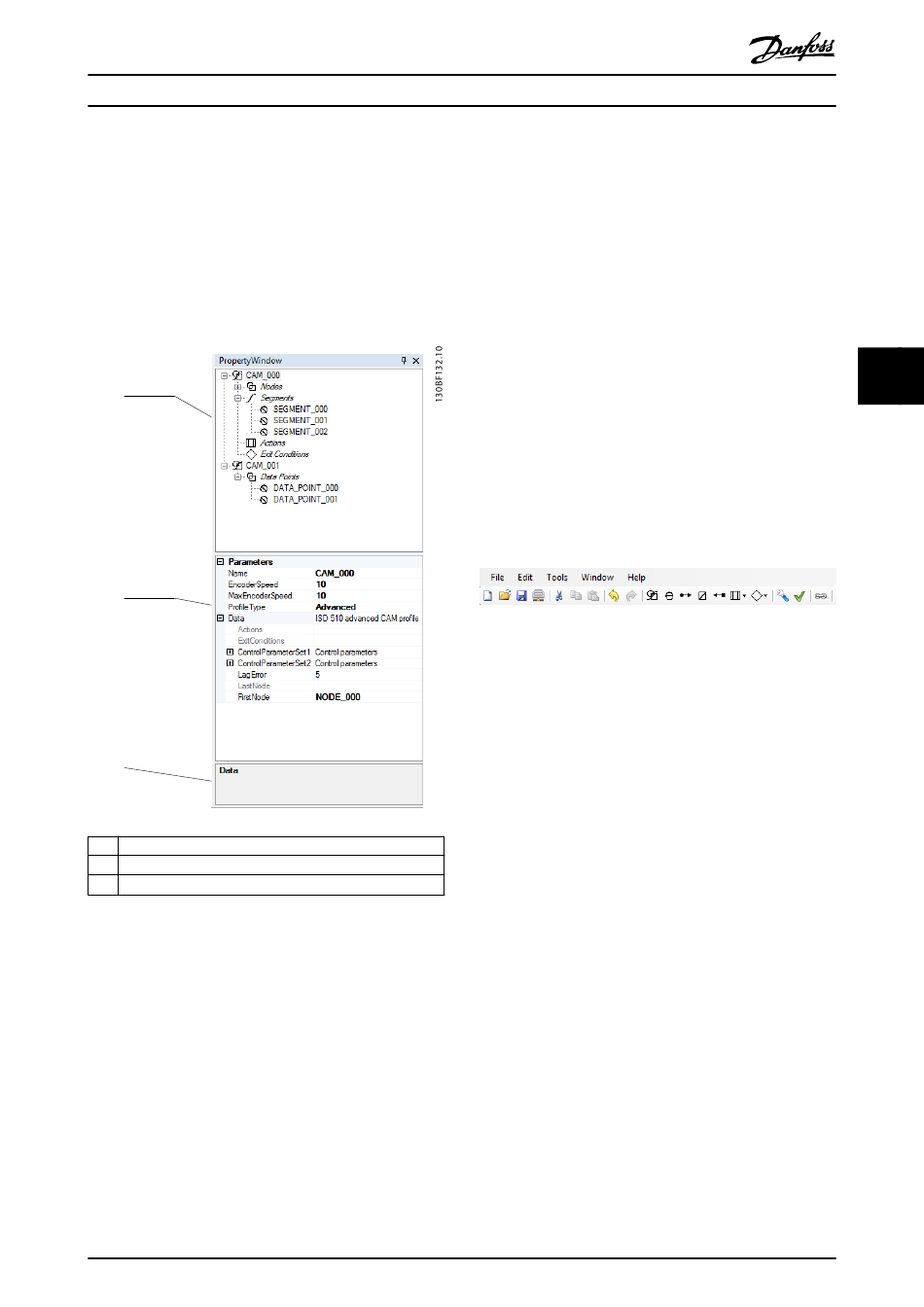

Illustration 5.57 CAM Editor Property Window
The profile tree reflects the CAM profile structure. It
consists of CAM profiles (basic and/or advanced) and their
respective CAM profile elements:
•
Basic CAM profile:
- Data points
•
Advanced CAM profile:
- Nodes
- Segments
-
Actions
- Exit conditions
MG36D102
Programming Guide
The parameter list contains all parameters of the selected
CAM profile element. The properties of the selected
element can be changed. The contents of the parameter
list depend on the attributes of the selected CAM profile
element. CAM profile elements that can be selected and
edited are:
•
•
•
•
•
•
5.7.7.3 Toolbar
The CAM Editor toolbar contains shortcuts for diverse
editing, importing, and exporting tasks. Illustration 5.58
shows the main menu and toolbar of the CAM Editor main
window.
Illustration 5.58 CAM Editor Main Menu and Toolbar
The CAM Editor toolbar contains shortcuts to the Menu
entries for easy access. All toolbar entries are named after
their respective counterparts in the main menu. The
functionality of all entries is the same as the respective
functionality of the Menu entries.
5.7.7.4 Wizards
Add CAM Profile wizard
The Add CAM Profile wizard guides through creating a basic
or an advanced CAM profile. It contains 4 steps and each
step is on a separate screen:
1.
2.
3.
4.
Illustration 5.59 shows an example of the Add CAM Profile
wizard.
Danfoss A/S © 01/2017 All rights reserved.
CAM profiles
Data points (basic CAM)
Guide nodes and event nodes (advanced CAM)
Guide segments and event segments (advanced
CAM)
Actions (advanced CAM)
Exit conditions (advanced CAM)
Selecting the CAM profile name and type.
st
Selecting the 1 control parameter set.
nd
Selecting the 2 control parameter set.
Selecting the CAM settings.
