Servo Drive Operation
The PLC library provides the information in function block
chapter 6.5.6.9 DD_ReadCamInfo_ISD51x.
2.4.6 Gear Mode
In Gear mode, the servo drive executes a synchronized
movement based on a master axis by using a gear ratio
between the master and the slave position. The guide
value can be provided by an external encoder, virtual axis,
or the position of another axis. This functionality can be
commanded using function block MC_GearIn_ISD51x (see
chapter 6.5.5.9 MC_GearIn_ISD51x) and
MC_GearInPos_ISD51x (see
chapter 6.5.5.10 MC_GearInPos_ISD51x).
The slave axis calculates its position out of the master
position value (see chapter 7.8.1 Parameter: Position Guide
Value (0x2060)). The slave axis sets its target position
corresponding to the configured gear ratio (see
chapter 7.15.1 Parameter: Gear Ratio (0x3900)). The principle

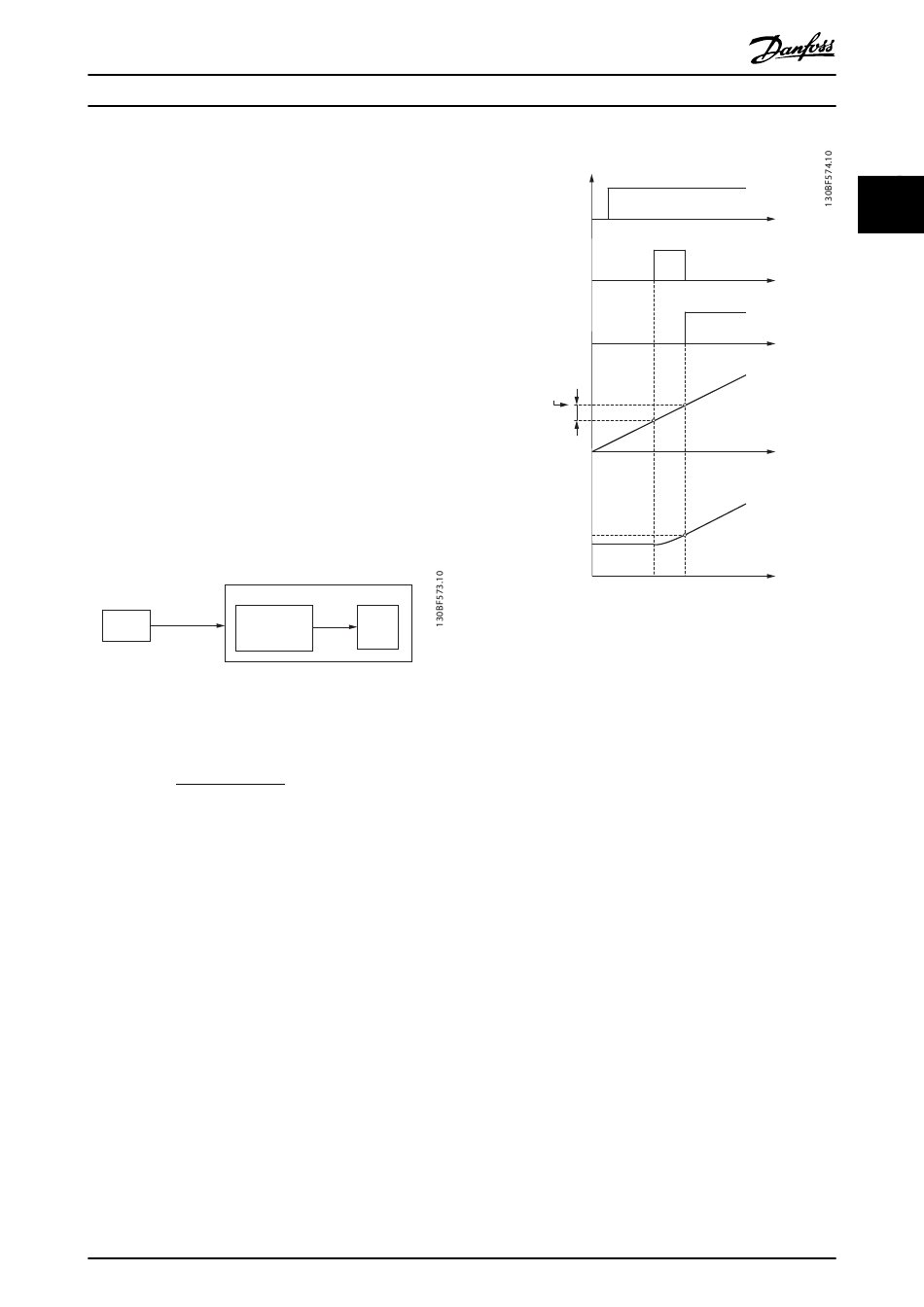

of the Gear mode is shown in Illustration 2.114.
Slave drive
Gear acceleration
Master position
Gear deceleration
Master axis
Gear ratio numerator
Gear denominator
Illustration 2.114 Gear Mode Description
The slave velocity is calculated as:
gear ratio numerator
Slave velocity =
gear ratio denominrator
To start a geared movement, the acceleration (see
chapter 7.5.7 Parameter 50-11: Profile Acceleration (0x6083))
and deceleration (see chapter 7.5.8 Parameter 50-12: Profile
Deceleration (0x6084)) can also be configured. These
parameters are also used to link up the gear. The slave
ramps up or down to the ratio of the master velocity
according to the given acceleration or deceleration value
and locks in when this velocity is reached.
There are 2 synchronization methods:
•
The relative synchronization between the master
and the slave is important (Gear In functionality).
For the Gear In functionality, the synchronization
phase is velocity controlled, so any lost distance
during synchronization is not caught up.
•
The absolute relation between master and slave is
important (Gear In Pos functionality), as shown in
Illustration 2.115.
MG36D102
Programming Guide
Slave
position
Slave axis
x master velocity
Danfoss A/S © 01/2017 All rights reserved.
TRUE
Execute
FALSE FALSE
TRUE
Start sync
FALSE
TRUE
Insync
FALSE
Master sync position
Master start distance
Slave sync position
Illustration 2.115 Timing Diagram for Gear In Position
Procedure
A polynomial of maximum 5 th
synchronization phase.
The mode is activated by writing –7 to object 0x6060.
For the Controlword (see chapter 7.2.1 Parameter 16-00
Controlword (0x6040)) and the Statusword (see
chapter 7.3.1 Parameter 16-03 Statusword (0x6041)), the bits
that usually hold the operating mode-specific bits are
defined here.
Depending on the value of the Guide value option code
object (see chapter 7.8.3 Parameter: Guide Value Option
Code (0x2061)), the guide value (backward or forward
movement) must be handled. The parameters specific to
this mode are listed in chapter 7.15 Gear Mode Objects.
2.4.7 ISD Inertia Measurement Mode
This mode measures the inertia of an axis. It is used to
measure the inertia of the servo drive and the external
load, and can be used to optimize the control loop
settings. The friction effects are eliminated automatically.
This functionality can be commanded using function block
DD_GetInertia_ISD51x (see
t
t
t
t
t
degree is used for the
