4.3.3.3 Alarms and Warnings
Alarms and warnings are indicated on the LCP by the
alarm overlay of the Status menu. Whenever an alarm or
warning appears on the device, the Status menu is shown
on the screen and the bottom section shows the alarm or
warning indication using color-inverted text.
The alarm or warning screen consists of:
4 4
•
Alarm or warning symbol:
-
-
•
Short alarm or warning text.
•
Alarm or warning number: the 4-digit
hexadecimal identifier of the alarm or warning,
preceded by the capital letter A for alarm (see
Illustration 4.6) or the capital letter W for warning
(see Illustration 4.3).

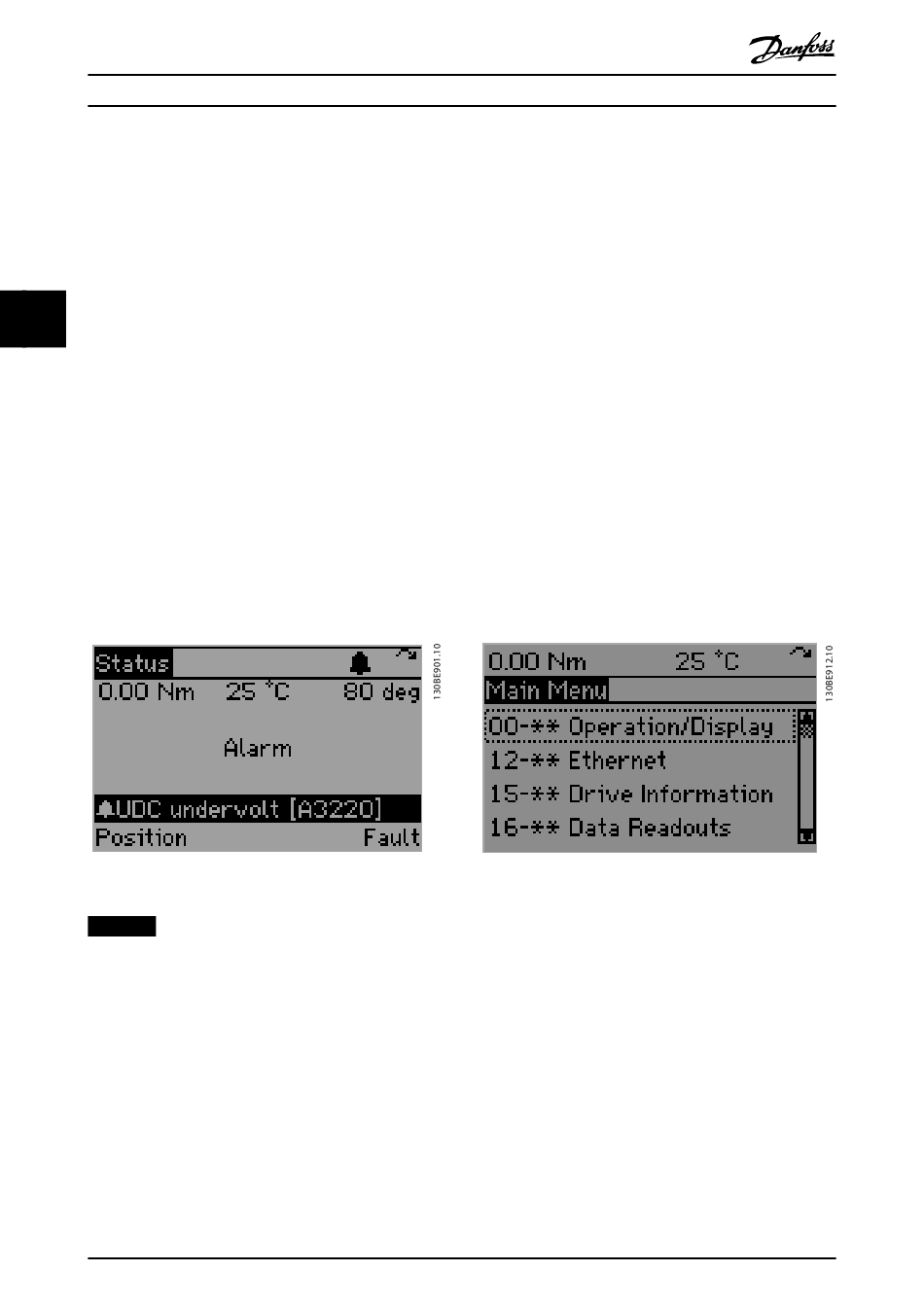

Illustration 4.6 Alarm Display
NOTICE
If multiple alarms occur, the alarm that occurred last is
shown. See chapter 4.3.6 Alarm Log for further
information on the history of alarms.
4.3.4 Main Menu
The LCP Main Menu is the interface for browsing through
all available device parameters. The LCP parameters are
organized in groups (level 1) and subgroups (level 2). At
the Main Menu root, the LCP screen shows all groups (level
1), as depicted in Illustration 4.7. Select a group and press
the [OK] key to show its subgroup (level 2). Select the
subgroup and press the [OK] key to show all parameters
belonging to the subgroup.
98
®
VLT
Alarm: If an alarm is active on the
device, a bell symbol is shown in the
upper right corner (see Illustration 4.6).
Also, the Alarm LED flashes red.
Warning: If a warning is active on the
device, an exclamation mark symbol is
shown in the upper right corner (see
Illustration 4.3). Also, the Warning LED
flashes yellow.
Danfoss A/S © 01/2017 All rights reserved.
®
Integrated Servo Drive ISD 510 System
When the LCP Main Menu is shown, the 1
menu head line that shows readout 1.1 and 1.2 (see
Illustration 4.5 and Illustration 4.4), and the actual motor
direction. It also shows an alarm or warning symbol if an
alarm or warning is present.
The motor direction is illustrated by an arrow in the upper-
right corner:
•
A left arrow indicates that the motor is turning in
a negative direction.
•
A right arrow indicates that the motor is turning
in a positive direction.
For more information on the servo drive directions, see
parameter 52-04 Drive Mirror Mode in
chapter 7.7.8 Parameters 51-02, 52-04, and 52-49: Application
Settings (0x2016).
The 2 nd line is the menu line and shows the color-inverted
menu name on the left – Main Menu for the root menu
(see Illustration 4.7), or the group or subgroup name. The
rest of the screen is made up of the item selector (a
control that shows the group numbers and names), and a
scroll bar. Use the [
to the desired group, subgroup, or parameter.
Illustration 4.7 Main Menu Level 1
Press the [OK] key when a parameter group or subgroup is
selected to enter the group or subgroup.
When navigating to parameter group 00-** Operation/
Display, press the [OK] key to access the subgroups
belonging to this group (see Illustration 4.7 and
Illustration 4.8).
st
line is the
▲ ▼
] and [ ] keys on the LCP to navigate
MG36D102
