Programming
6.5.4.19 DD_ReadParameter4_ISD51x
This function block asynchronously reads general objects
of up to 4 bytes from the object dictionary of the axis if
the Enable input is set. For the index and sub-index of the
parameters, see chapter 7 Servo Drive Parameter Description.
The output data is read from the device and is therefore
not immediately available.
AXIS_REF_-
ISD51x
BOOL
UINT
6 6
USINT

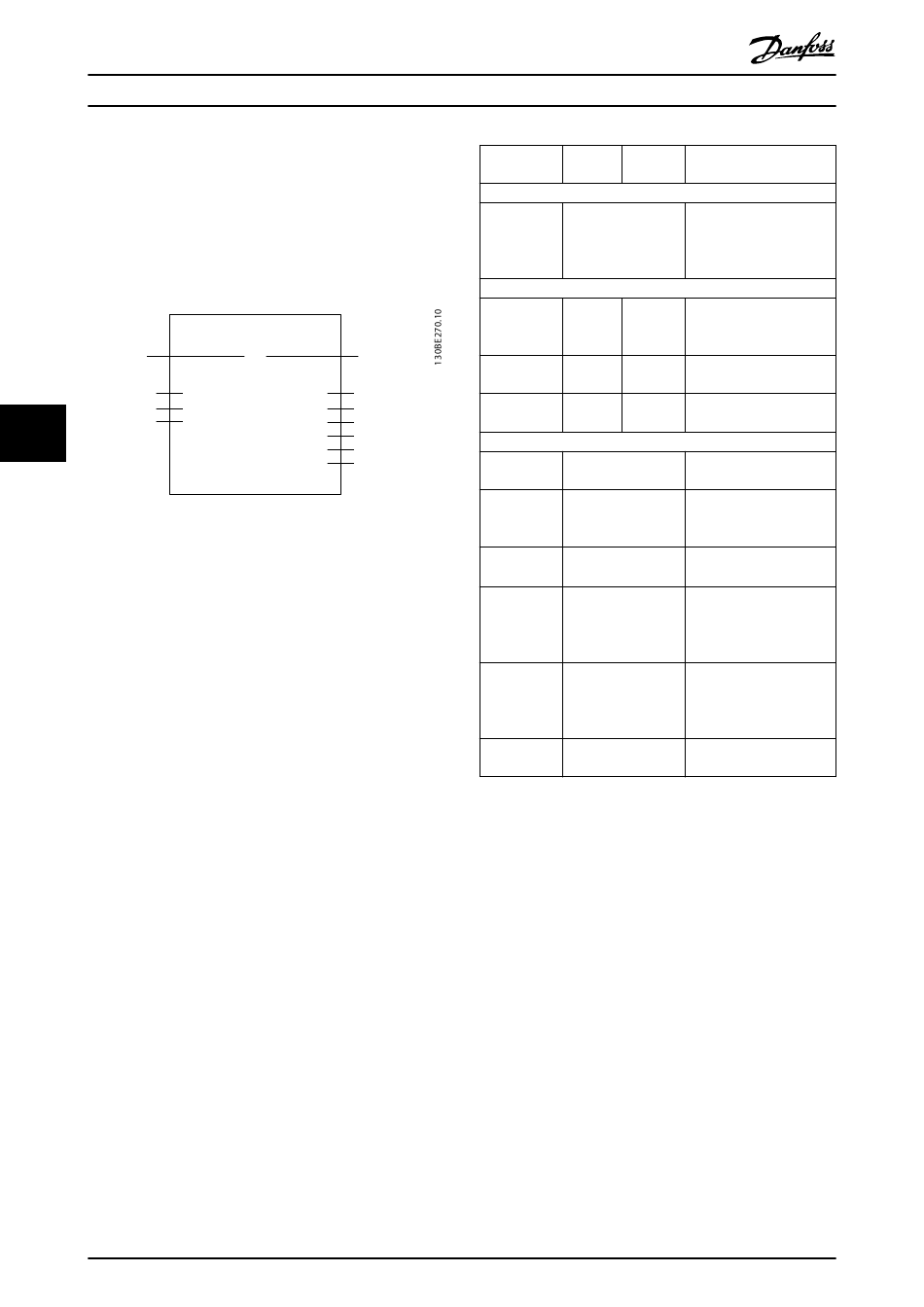

Illustration 6.43 DD_ReadParameter4_ISD51x
188
VLT
DD_ReadParameter4_ISD51x
Axis
Enable Valid BOOL
Index Busy BOOL
Subindex Error BOOL
ErrorInfo DD_ERROR_ISD51x
AbortCode DWORD
Value DWORD
Danfoss A/S © 01/2017 All rights reserved.
® ®
Integrated Servo Drive ISD
Variable
name
VAR_IN_OUT
Axis
VAR_INPUT
Enable
Index
Subindex
VAR_OUTPUT
Valid
Busy
Error
ErrorInfo
AbortCode
Value
Table 6.21 DD_ReadParameter4_ISD51x
510 System
Data Default Description
type value
AXIS_REF_ISD51x Reference to the axis.
See
chapter 6.5.4.1 AXIS_REF_IS
D51x.
BOOL FALSE Get the value of the
parameter continuously
while enabled.
UINT 0 Index of the object to be
read.
USINT 0 Sub-index of the object to
be read.
BOOL The function block has a
valid output.
BOOL The function block is not
finished and new output
values are to be expected.
BOOL An error has occurred
within the function block.
DD_ERROR_ISD51x Error identification and
instance identifier.
See chapter 6.5.2.3 Error
Indication.
DWORD SDO abort code if there is
an error. Available in the
list of constants:
SdoAbortCodes.
DWORD Value of the specified
parameter.
