Figure 180. Ebi Non-Multiplexed 8-Bit Data, 8-Bit Address Mode For Page Read Operation; Figure 181. Ebi Non-Multiplexed 16-Bit Data, N-Bit Address Mode For Page Read Operation; Figure 182. Ebi Multiplexed 16-Bit Data, 16-Bit Address Mode For Page Read Operation - Holtek HT32F12345 User Manual

32-Bit Arm ® Cortex ® -M3 MCU
HT32F12345
RDSETUP
(0, 1, 2, ...)
EBI_AD[15:8]
EBI_AD[7:0]
EBI_CSn
EBI_OE

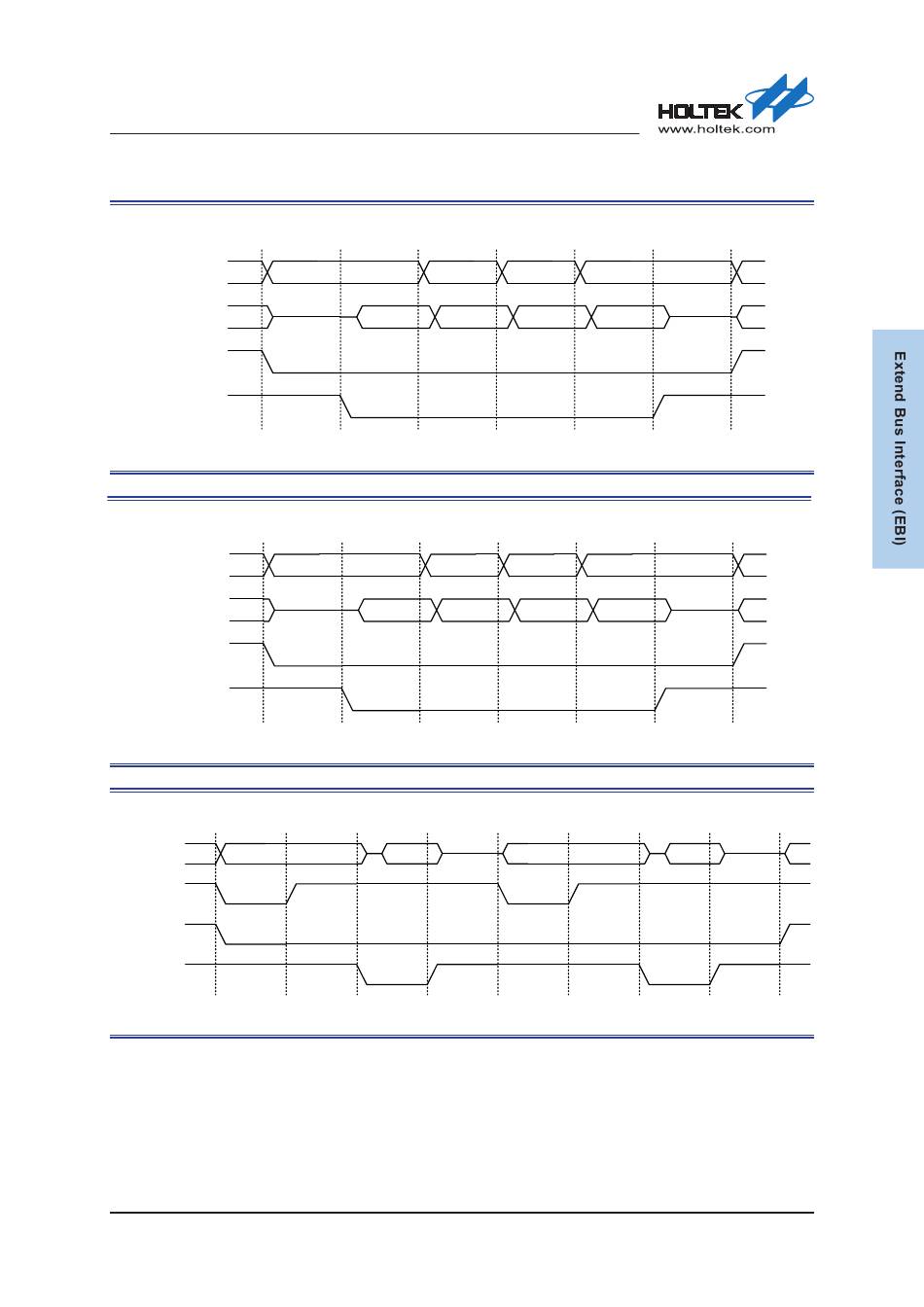

Figure 180. EBI Non-multiplexed 8-bit Data, 8-bit Address Mode for Page Read Operation

RDSETUP
(0, 1, 2, ...)
EBI_A[N:0]
EBI_AD[15:0]
EBI_CSn
EBI_OE

Figure 181. EBI Non-multiplexed 16-bit Data, N-bit Address Mode for Page Read Operation

ADDRSETUP
(1, 2, 3, ...)
EBI_AD[15:0]
ADDR0
EBI_ALE
EBI_CSn
EBI_OE

Figure 182. EBI Multiplexed 16-bit Data, 16-bit Address Mode for Page Read Operation

Rev. 1.10
RDSTRB RDPG
(1, 2, 3, ...) (1, 2, 3, ...)
ADDR0 ADDR1
DATA0 DATA1
RDSTRB RDPG
(1, 2, 3, ...) (1, 2, 3, ...)
ADDR0 ADDR1
DATA0 DATA1
RDSETUP RDSTRB RDHOLD
(0, 1, 2, ...) (1, 2, 3, ...) (0, 1, 2, ...)
DATA0
521 of 590
RDPG RDPG RDHOLD
(1, 2, 3, ...) (1, 2, 3, ...) (0, 1, 2, ...)
ADDR3
ADDR2
DATA2 DATA3
RDPG RDPG RDHOLD
(1, 2, 3, ...) (1, 2, 3, ...) (0, 1, 2, ...)
ADDR3
ADDR2
DATA2 DATA3
ADDRSETUP RDSETUP RDPG
(1, 2, 3, ...) (0, 1, 2, ...) (1, 2, 3, ...)
ADDR1 DATA1
RDHOLD
(0, 1, 2, ...)
