Motor Control Timer (MCTM)

Introduction

The Motor Control Timer consists of one 16-bit up/down-counter, four 16-bit Capture / Compare
Registers (CCRs), one 16-bit Counter-Reload Register (CRR), one 8-bit Repetition Counter (REPR)
and several control / status registers. It can be used for a variety of purposes which include general
time measurement, input signal pulse width measurement, output waveform generation for signals
such as single pulse generation or PWM generation, including dead time insertion. The MCTM
supports an encoder interface using a quadrature decoder with two inputs.
ITI0
ITI1
Trigger Controller
ITI2
MTn_CH0
MTn_CH1
Input Stage Block
MTn_CH2
MTn_CH3
MTn_ETI
MTn_BRK1
MTn_ETI
MTn_BRK0
MTn_BRK
UEV1 : Update Event 1
CEVx : Channel x Capture Event
UEV2 : Update Event 2

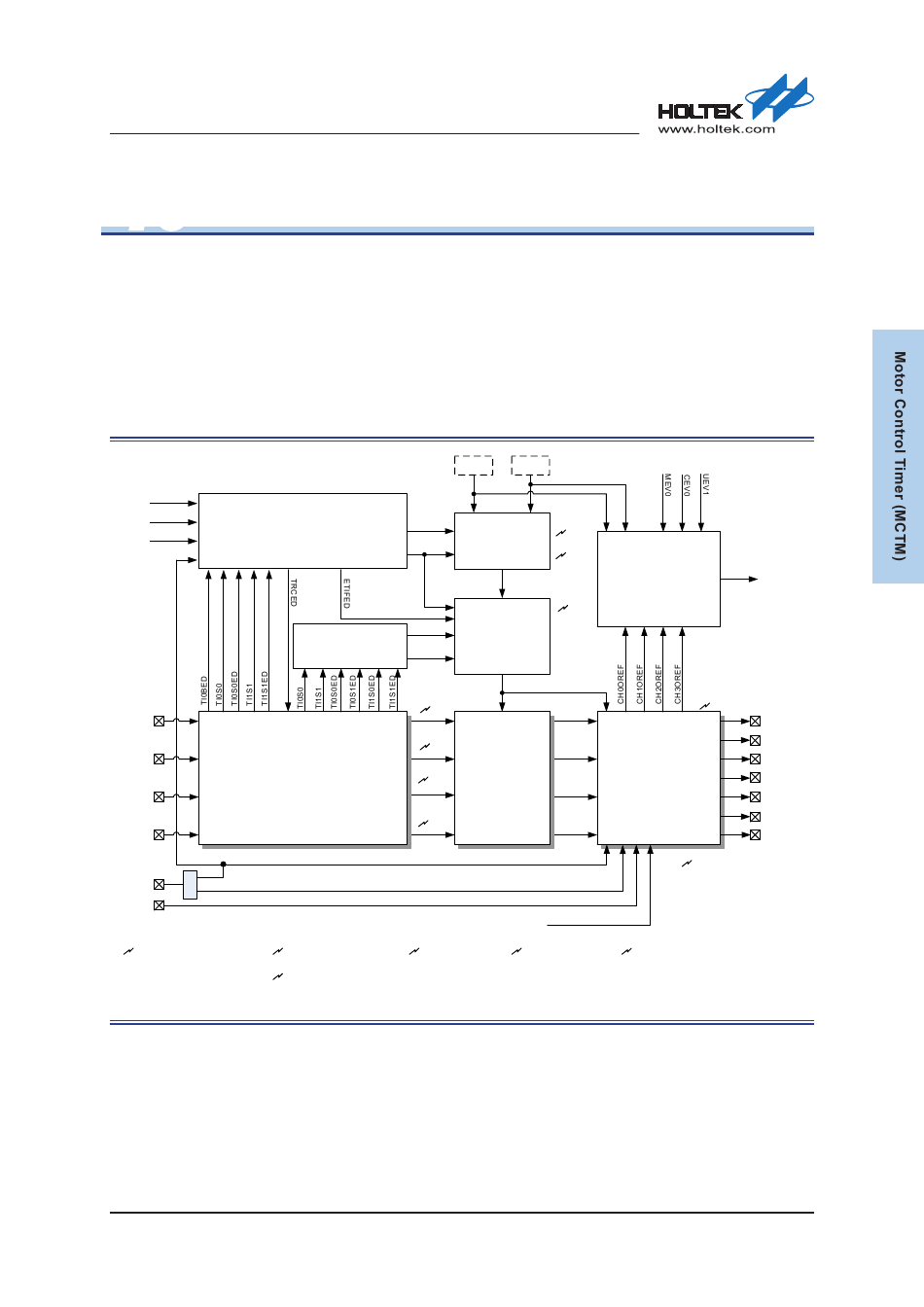

Figure 77. MCTM Block Diagram
