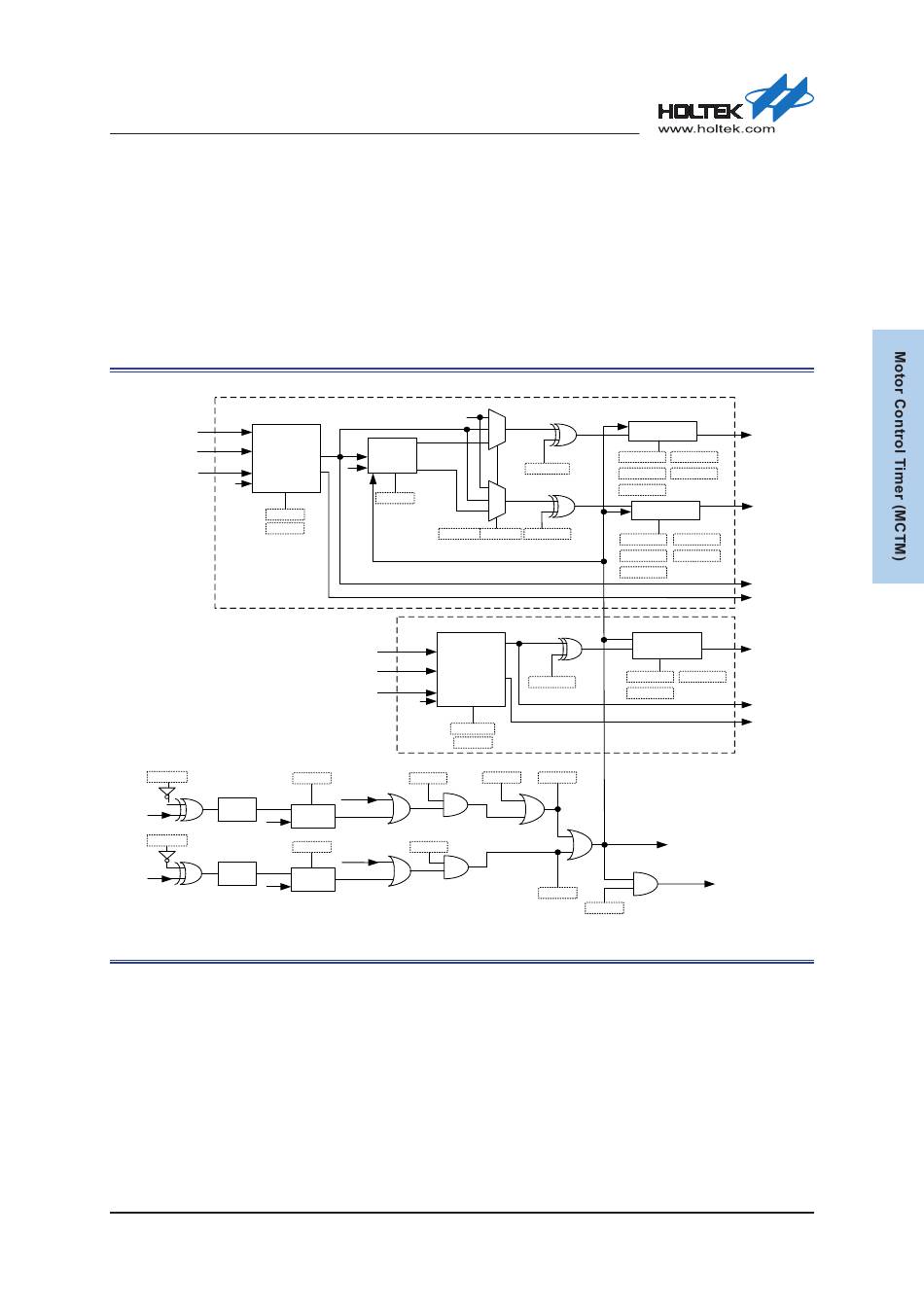

Output Stage; Figure 95. Output Stage Block Diagram - Holtek HT32F12345 User Manual

32-Bit Arm ® Cortex ® -M3 MCU
HT32F12345

Output Stage

The MCTM supports complementary outputs for channels 0, 1 and 2 with dead time insertion. The
MCTM channel 3 output function is almost the same as that of GPTM channel 3 except for the
break function.
The channel outputs, CHxO and CHxNO, are referenced to the CHxOREF signal. These channel
outputs generate a wide variety of wide waveforms according to the configuration values of
corresponding control bits, as shown by the dashed box in the diagram.
ETI
CNTR
Output Mode
Controller
CHxCCR
x=0~2
f
CLKIN
REFxCE
CHxOM
BKP0
Delay
MTn_BRK0
line
f
sample
BKP1
Delay
MTn_BRK1
line
f
sample

Figure 95. Output Stage Block Diagram
