I 2 S Clock Rate Generator
The main (I2S_MCLK) and bit clock (I2S_BCLK) rates for the I
in the I2SCDR register. The required I
rate desired, the format (stereo / mono) used and the data size. The main clock rate (I2S_MCLK)
is generated using a fractional rate divider which is a divided down PCLK frequency of the I
Values of the numerator (X) and the denominator (Y) must be chosen to produce a frequency twice
that of the main clock (I2S_MCLK). The output frequency of the divider is divided by 2 in order to
get the duty cycle of the output clock more even. The I
Figure 190. The equation for the fractional rate divider is:
I2S_MCLK = (1/2) × PCLK × (X/Y), and X/Y ≤ 1, X = 1 ~ 255, Y = 1 ~ 255
Because the fractional rate divider is a fully digital implementation function, the divider output
clock transitions are synchronous with the input source clock. Therefore, the fractional rate divider
will generate some jitter with some divider settings. Users should make note of this phenomenon
when choosing the X and Y setup values. It is possible to avoid jitter entirely by choosing fractions
such that X divides evenly into Y, for example, 2/4, 2/6, 3/9, etc.
The tables below show the recommended setup values to reduce clock jitter for different source
clocks and sample rates.
PCLK

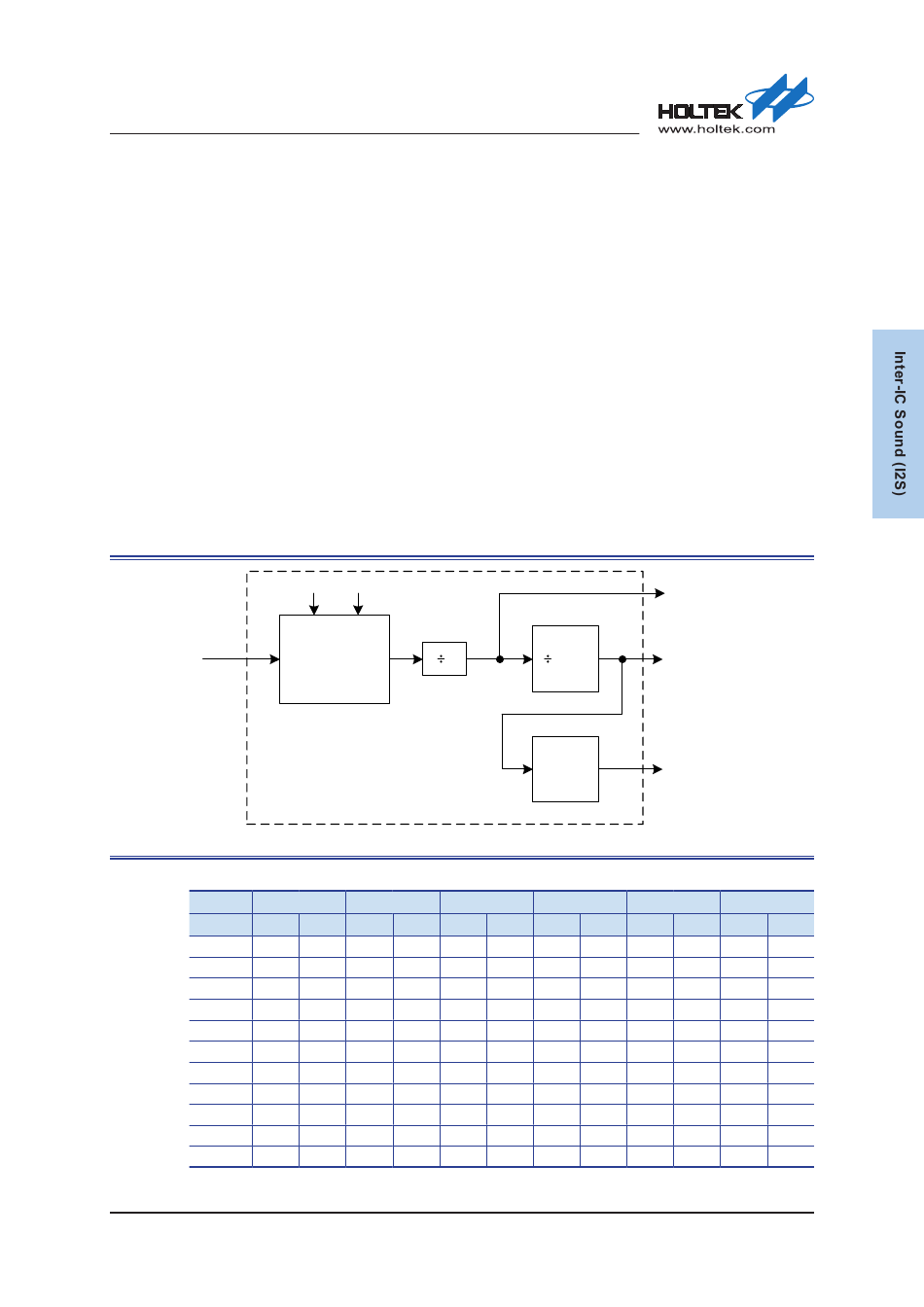

Figure 190. I 2 S Clock Generator Diagram

Table 69. Recommend FS List @ 8 MHz PCLK

512 F
Fs (Hz) X
8,000 —
11,025 —
12,000 —
16,000 —
22,050 —
24,000 —
32,000 —
44,100 —
48,000 —
96,000 —
192,000 —
