Installation
CDM-760 Advanced High-Speed Trunking Modem
2.2.1

Install the Optional Rear Support Brackets Kit

Feature Description
Item
KT-0000168
1
2
3
Item
KT/6228-2
A 2
B 4
C 2
D 2
E 4
2
F
–

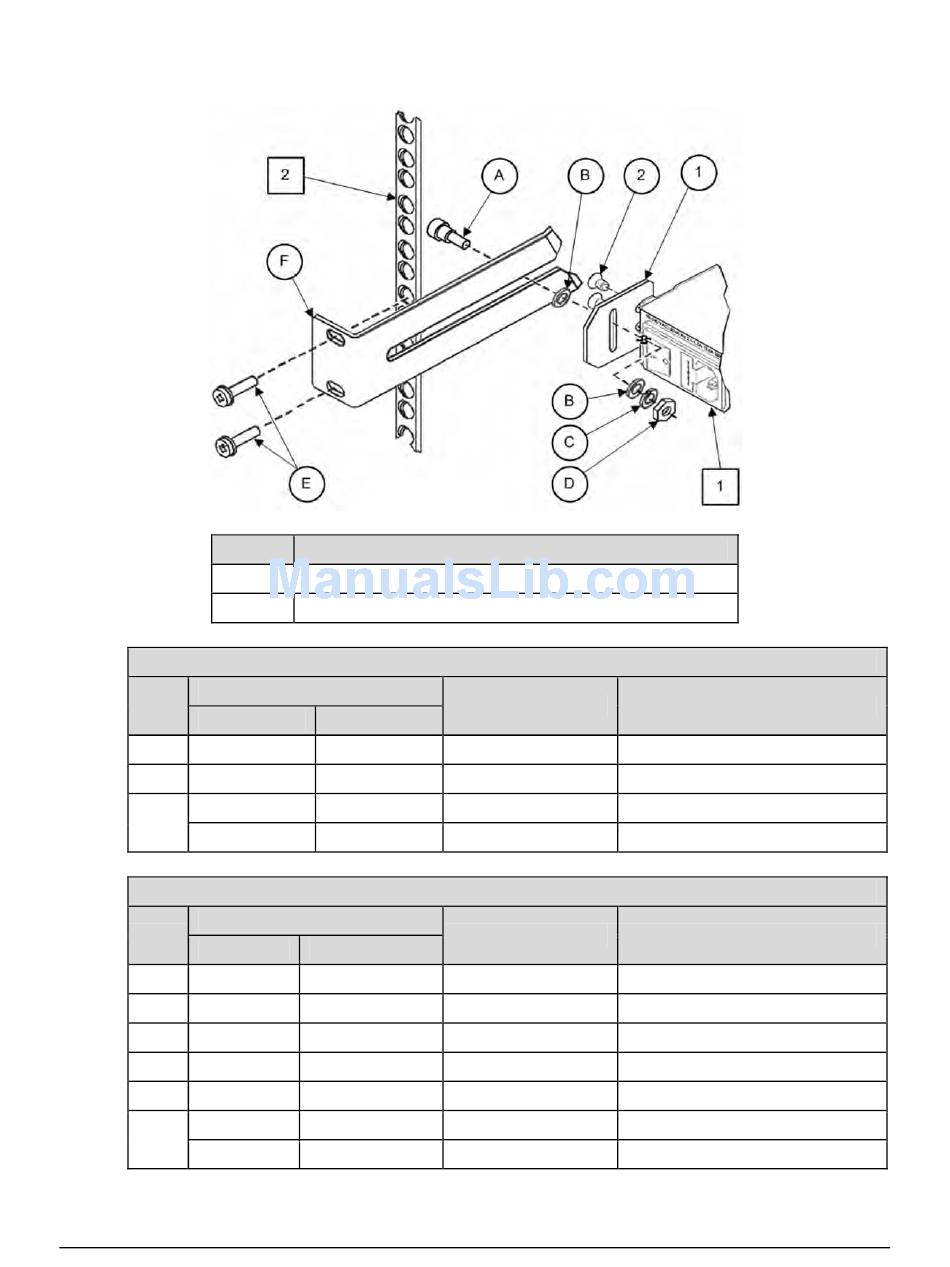

Figure 2-3. Install the Optional Rear Support Brackets Kit

1 Back of Unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
KT-0000XXX Primary Rear Support Brackets Kit
Quantity
KT-0000195
2 2
4 4
1 –
– 1
KT/6228-X Rear Support Bracket Kit
Quantity
KT/6228-3
2
4
2
2
4
–
2
CEFD Part Number Description
FP-0000913 Plate, Adapter
HW/10-32X3/8FLT Screw, #10 Flat Head
KT/6228-2 4" Rear Support Bracket Kit
KT/6228-3 10" Rear Support Bracket Kit
CEFD Part Number Description
HW/10-32SHLDR Screw, #10 Shoulder
HW/10-32FLT Washer, #10 Flat
HW/10-32SPLIT Washer, #10 Split
HW/10-32HEXNUT Nut, #10 Hex
HW/10-32x1/2RK Bolt, #10 Rack Bracket
FP/6138-2 Bracket, Rear Support – 4"
FP/6138-3 Bracket, Rear Support – 10"
2–4
Revision 4
MN-CDM760
