Install The Optional Rear Support Brackets Kit; Table 3-1. Optional Rear Support Bracket Kit Parts List; Figure 3-3. Optional Rear Support Brackets Kit Installation - Comtech EF Data SLM-5650A Installation And Operation Manual

3.2.1

Install the Optional Rear Support Brackets Kit

Feature
1
2
Item
KT/6228-2
1
2
3
4
5
6
Installation
Back of Unit
Rack Enclosure Threaded Rear Mounting Rail (typical)

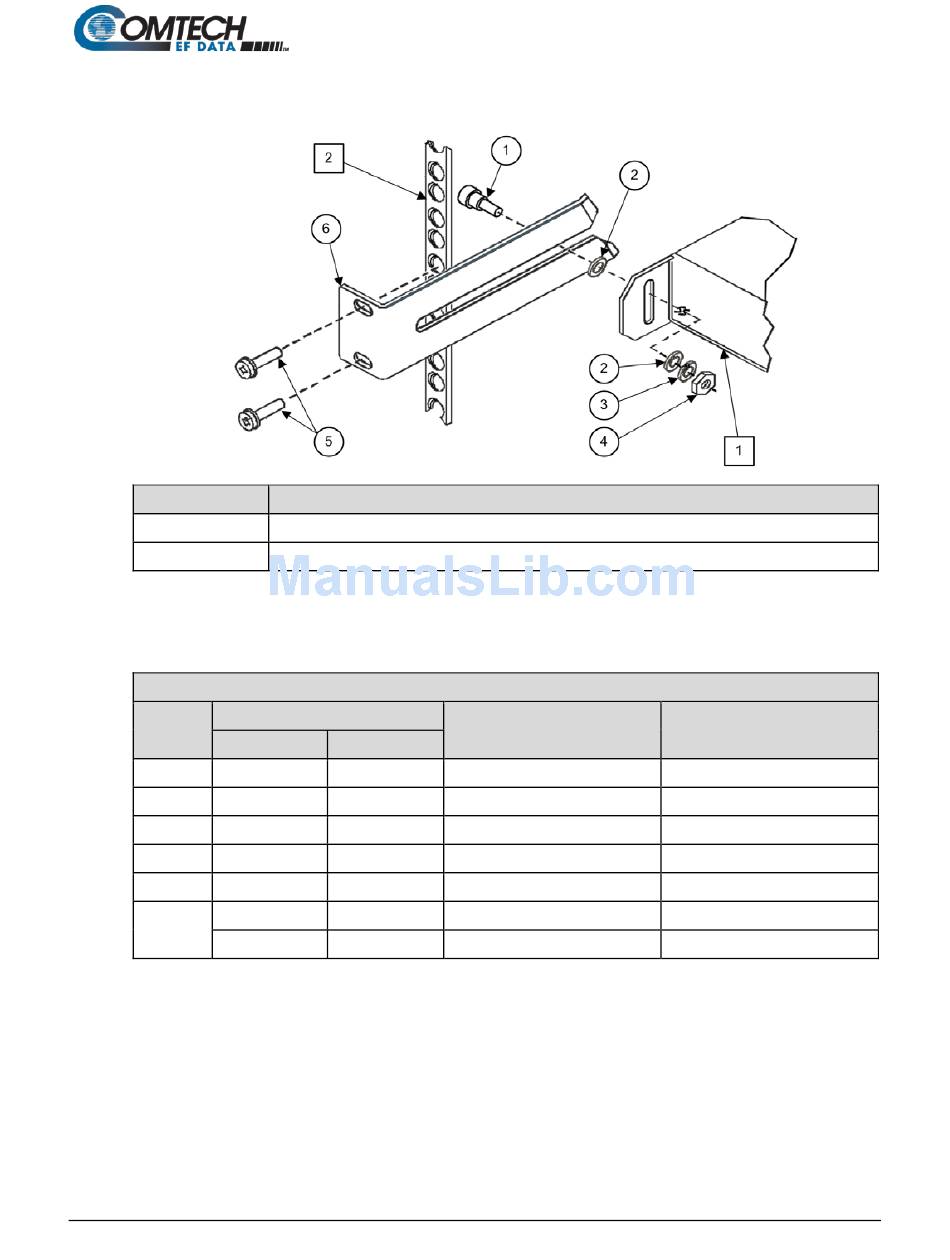

Figure 3-3. Optional Rear Support Brackets Kit Installation

Table 3-1. Optional Rear Support Bracket Kit Parts List

KT/6228-X Rear Support Bracket Kit
Quantity
KT/6228-3
2 2
4 4
2 2
2 2
4 4
2 –
– 2
Description
CEFD Part Number
HW/10-32SHLDR
HW/10-32FLT
HW/10-32SPLIT
HW/10-32HEXNUT
HW/10-32x1/2RK
FP/6138-2
FP/6138-3
3–4
SLM-5650A Satellite Modem
Revision 10
Description
Screw, #10 Shoulder
Washer, #10 Flat
Washer, #10 Split
Nut, #10 Hex
Bolt, #10 Rack Bracket
Bracket, Rear Support – 4"
Bracket, Rear Support – 10"
MN-SLM-5650A
