CDM-570/570L Satellite Modem with Optional IP Module
Appendix K
K.4.1.2.1.2 ODU | Config (KST-2000A/B)

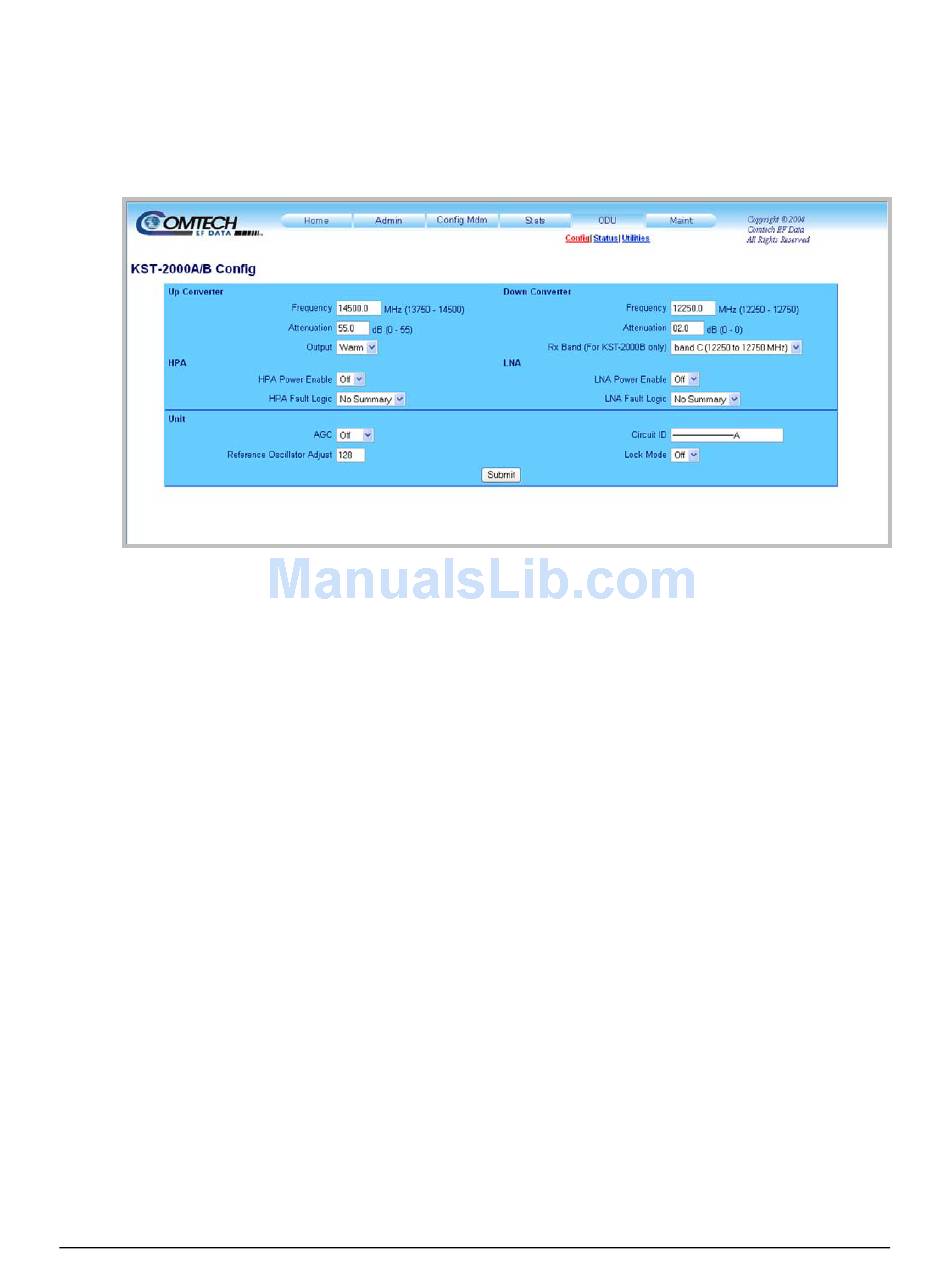

Figure K-6 shows the 'ODU | Config' page with the KST-2000A/B configured as the ODU. Use
this page to configure the primary KST-2000A/B Transmit and Receive Parameters.
Up Converter Parameters
•
Frequency: Enter a value in MHz
•
Attenuation: Enter a value in dB
•
Output: Select On or Off from the drop-down menu
Down Converter Parameters
•
Frequency: Enter a value in MHz
•
Attenuation: Enter a value in dB
•
Rx Band (For KST-2000B Only): Select band A (10950 to 11700 MHz), band B (11700
to 12200 MHz), or band C (12250 to 12750 MHz) from the drop-down menu
HPA Parameters
•
HPA Power Enable: Select On or Off from the drop-down menu
•
HPA Fault Logic: Select Summary or No Summary from the drop-down menu
LNA Parameters
•
LNA Power Enable: Select On or Off from the drop-down menu
•
LNA Fault Logic: Select Summary or No Summary from the drop-down menu

Figure K-6. ODU | Config page (KST-2000A/B)

K–26
Revision 12
MN/CDM570L.IOM
