CDM-570A/570AL Satellite Modem with Optional Packet Processor
CDM-570A/570AL ODU (Transceiver, BUC, LNB) Operation
10.2.1.2.1 (SELECT:) ODU – CSAT-5060 Transceiver Operation
Figure 10-3 identifies the CDM-570A front panel menu hierarchy as it specifically addresses
CSAT-5060 ODU operation.

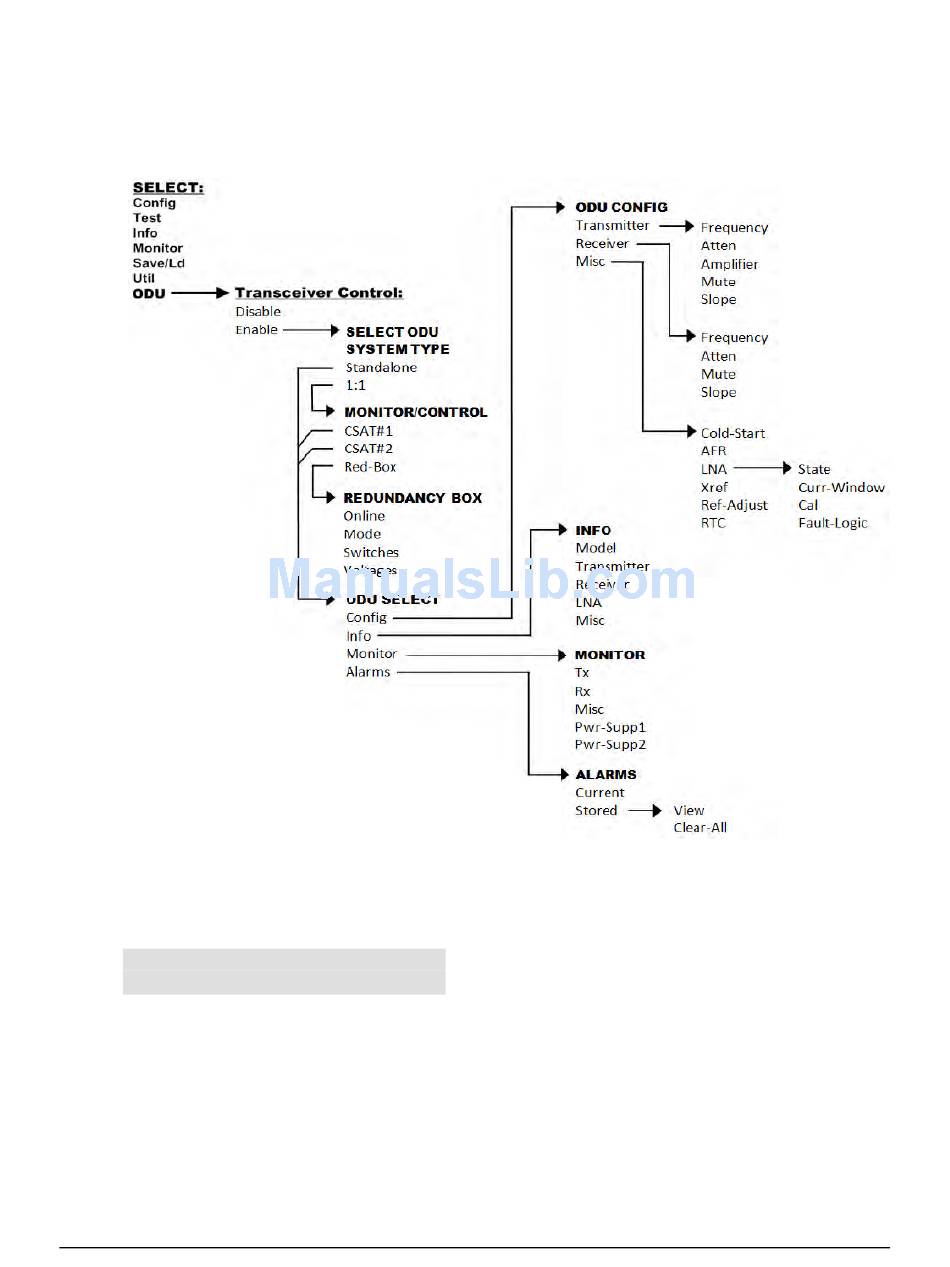

Figure 10-3. ODU: CSAT-5060 Transceiver Menu Tree (FW Ver. 1.3.1)
10.2.1.2.1.1

(ODU: Transceiver Control) Enable

Select ODU System Type:
Standalone 1:1 (
Use the ◄ ► arrow keys to select Standalone or 1:1, and then press ENTER. Note the following:
•
Select Standalone when the modem is linked via the Rx IF cable to a single Comtech EF Data
CSAT-5060 ODU.
•
Select 1:1 when the modem is linked to a redundant CSAT-5060 system via connection
between the Rx IF and the ODU Redundancy Controller Box.
ENT)
◄ ►,
